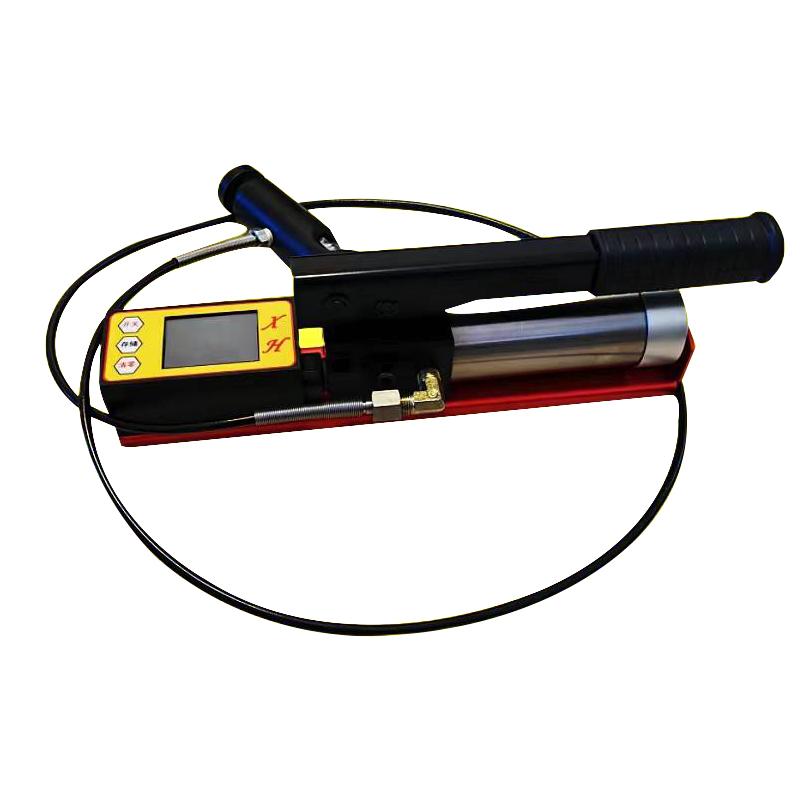

TIANDIXINGHUO TC-M14 Manual Adhesion Tester adhesion kit Diameter 14mm

TC-M14

Touch Screen Adhesion Tester

Manual model, with 240 * 320 color touch display screen, Measurement range 0-64.99MPa, kit diameter 14mm, kN/Mpa two display units, can store 10000 data.

Overview

TC-M type pull-out adhesion Tester can measure the adhesion of metal, concrete and other material coatings. The Principle of the instrument is to use the hydraulic system to detach the coating of a certain diameter on the surface of the tested substrate to measure the adhesion of the coating. The multi-functional touch LCD of the Tester displays the adhesion detection process in MPa or kN. The product is designed and manufactured according to international and Chinese relevant standards with stable performance.

Product Features

• 240 * 320 color touch screen.

• Automatic conversion result, spindle size 10mm.

• The detection process is automatically stored.

• kN/Mpa two display units.

• The memory card stores data, and the computer can view the data online.

• Draw Strength Values - Time Curve Display.

• A large-capacity memory card that can store 10,000 pieces of data.

• Data is automatically stored, 0.5S stores 1 data.

• The screen brightness is adjustable.

• Automatic shutdown can be set.

• Chinese and English display switching.

• Engineering plastic packing box, rainproof, dustproof and impact-proof.

Meet the standard

ISO 4624 Paints and varnishes-Pull-offtest for adhesion

ASTM D 4541 "StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers"

ASTM D7234 "Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers"

GB/T 5210-2006 "Adhesion test of paint and varnish by pulling apart method"

TB-T2965-2011 "Technical Conditions for Waterproof Layer of Railway Concrete Bridge Deck"

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
