Defelsko PosiTest CH Cross-cut Adhesion Tester Set ASTM D3359 2mm/6 Tooth
CHKITASTM6X2
-
Erichsen 295/II Cross Hatch Cutter Set 6 teeth/2mm$ 972.00SE -
TRUIT TR 5001/4 Single Sided Cross Hatch Cutter 2mm/6 Tooth$ 145.00SE -
PUSHEN HGQ 2 * 5 multi-edge cross-cut Tester number of teeth 6 teeth, spacing 2mm$ 179.00SE -
TQC SP3000 Adhesion Tester Cross-cut Guide Gauge/Baige Plate 6-in-1 Multifunctional Adhesion Tester$ 326.00SE
Defelsko CHKITASTM6X2 Cross-cut Adhesion TesterSPEC
Defelsko CHKITASTM6X2 Cross-cut Adhesion TesterDetails
Defelsko CHKITASTM6X2 Cross-cut Adhesion TesterPacking list
- SKU
- NB044010
- Number of teeth
- 6 teeth
- Tooth spacing
- 2mm
- Applicable film thickness environment
- 0~50μm
- Cutter head material
- Harden just
- Application standard
- ASTM D3359
Introduction
Cross-scratch adhesion TesterAccording to ISO 2409 and ASTM D3359, the ability of the coating to resist separation from the substrate is determined when cutting a lattice pattern on the coating.

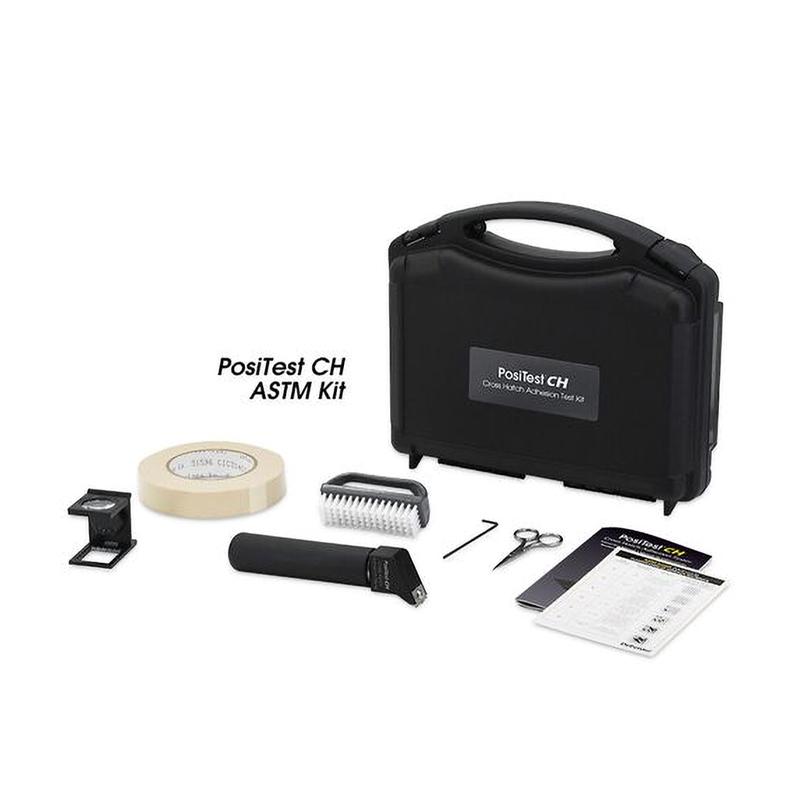

All tools and accessories needed to perform the cross-scratch test are included.Ergonomically designed tool grip with non-slip grip for comfortable all-day use.The rotatable cutting head ensures proper positioning and uniform cutting surface pressure.Easy-to-change, hardened steel blade with 4 cutting edges for longer testing.Tapes are available in accordance with ISO 2409 or ASTM D3359.
peculiarity
Includes all tools and accessories required for cross-scratch testing in accordance with ISO 2409 and ASTM D3359

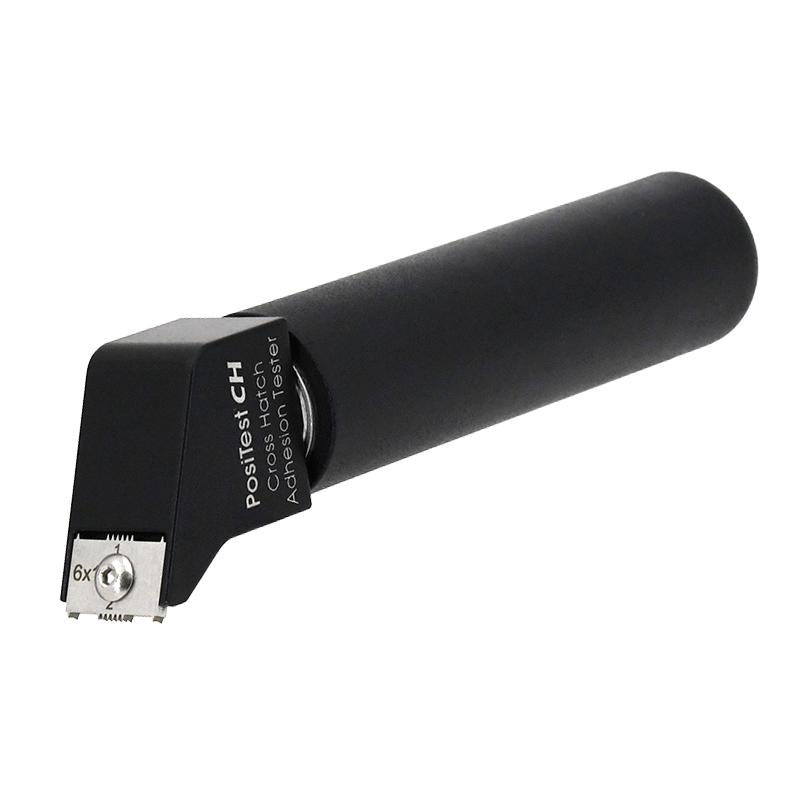

Ergonomically designed tool grip with non-slip grip for comfortable all-day use

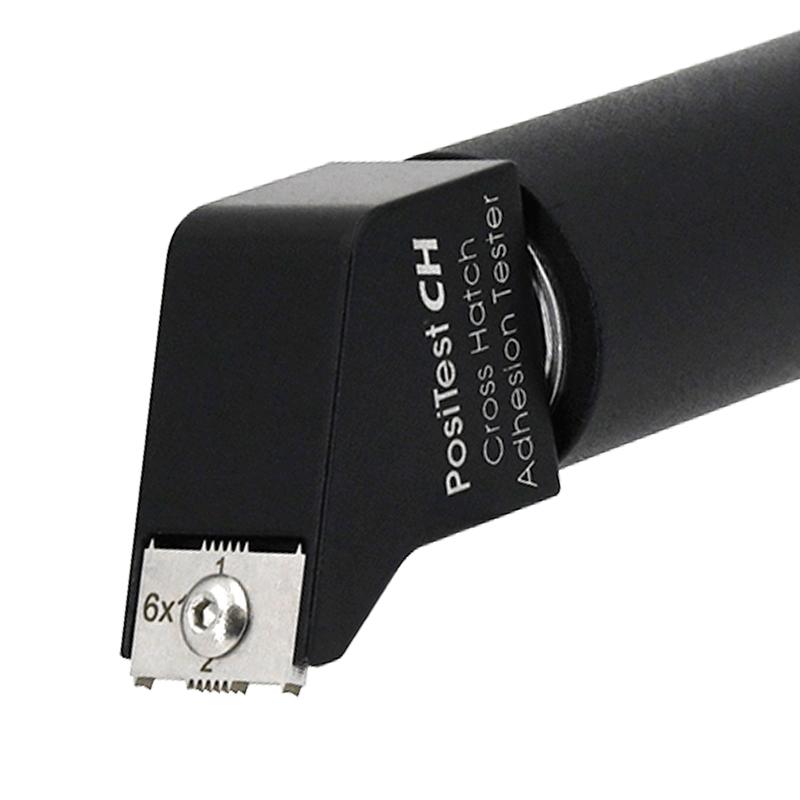

The rotatable cutting head ensures proper positioning and uniform cutting surface pressure

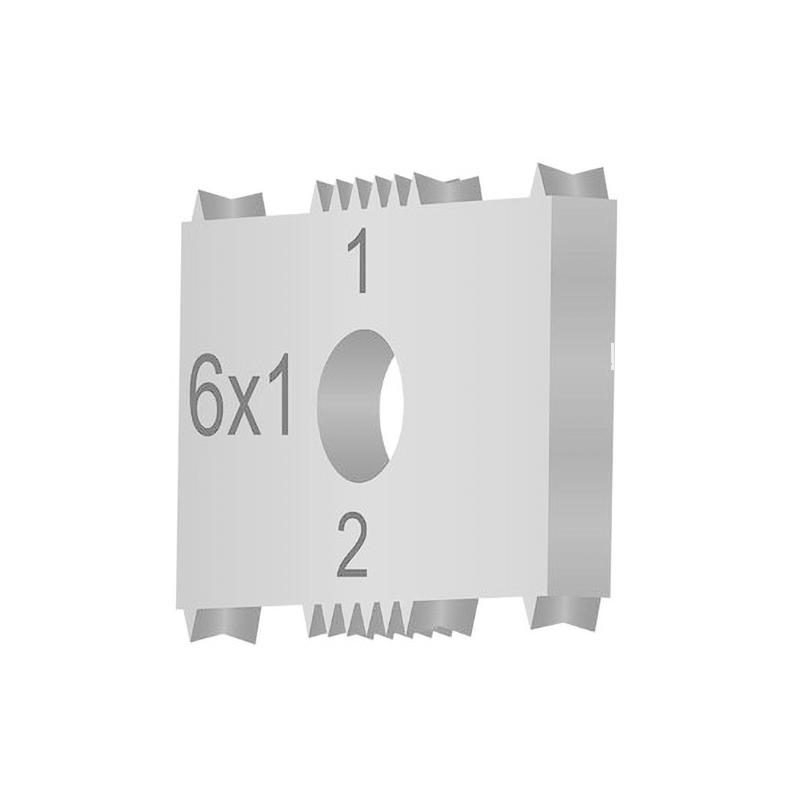

Easy to replace, hardened steel blade with 4 cutting edges for longer testing
Suitable for coating thicknesses up to 250 μm (10 mm), depending on the blade and standard
Available in a wide range of 4-in-1 cutting blades with different standards, coating thicknesses and substrates, the tool is compatible with all DeFelsko cutting blades
Illuminated magnifiers with 3x or 10x magnification are available according to the standard
A brush is included to remove debris from the coating

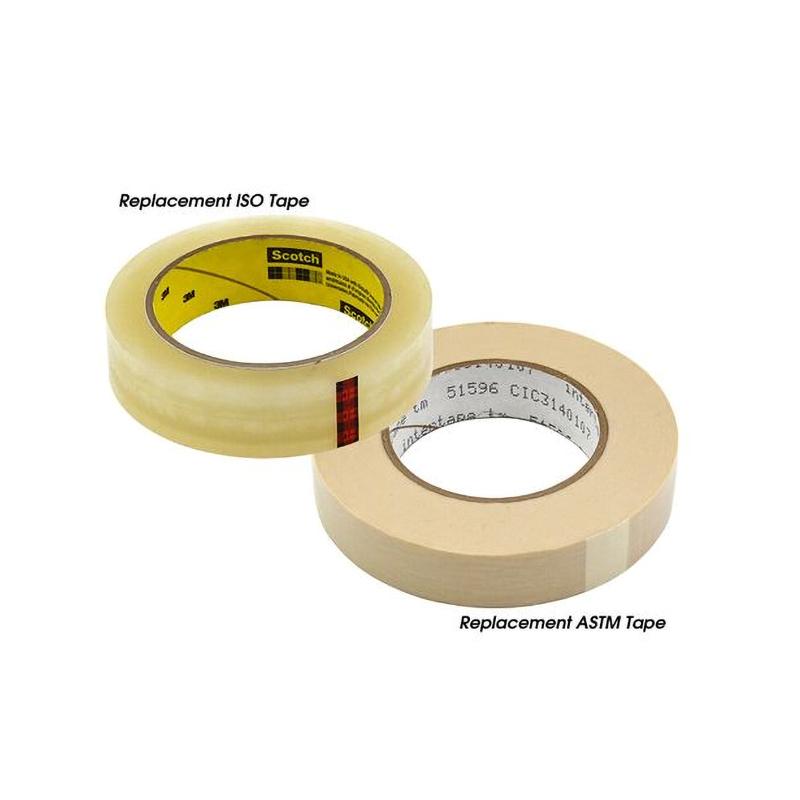

Adhesive tapes are available in accordance with ISO 2409 or ASTM D3359
The durable hard-shell case keeps the contents safe
Meets standards
ISO 2409/16276-2, ASTM D3359, AS 3894.9/1580.408.4, JIS K 5600-5-6.
Optional kits
The PosiTest CH Cross Scratch Adhesion Test is available in 5 sets, 3 of which are ISO 2409 compliant and 2 are ASTM D3359 compliant.
Use the table below to select the appropriate blade based on the standard and the thickness of the coating to be tested.
| Coating thickness environment | Blade specifications | Kit model |
| ISO2409 | ||
| 0~60μm | 1mm/6 teeth | CHKITISO6X1 |
| 61~120μm | 2mm/6 teeth | CHKITISO6X2 |
| 121~250μm | 3mm/6 teeth | CHKITISO6X3 |
| *For soft substrates (e.g. wood and plaster), use a 2mm/6-tooth blade when the coating thickness is between 0~120μm. | ||
| ASTM D3359 | ||
| 0~50μm | 1mm/11 teeth | CHKITASTM11X1 |
| 51~125μm | 2mm/6 teeth | CHKITASTM6X2 |
