MODERNER SZQ-150 Frame 100 * 150 * 200 * 250 4-sided Applicator

SZQ-150 frame type 100 * 150 * 200 * 250

Film Applicator

Film width of 100mm, Film thickness of 100μm, 150μm, 200μm, 250μm, 9Cr18Mo stainless steel material.

Introduction to Frame Four-Sided Applicator

Frame Wet Film Applicator is a four-sided wet Film Applicator with four different film thicknesses for film or coating preparation in the laboratory. The Wet Film Applicator is used to uniformly coat the surface of the sample. Liquid materials, such as polymers, solutions or nanoparticles, are used to form films. Frame Wet Film Applicators are widely used, including in the fields of coatings chemical industry, materials science, nanotechnology, electronics, biomedical research, etc.

SZQ-150 frame type 100 * 150 * 200 * 250  is a Applicator with a coating width of 100mm and a coating film thickness of 100μm, 150μm, 200μm, 250μm.

Steps to use

1. Put the sample on the platform and fix it so that the Frame Applicator does not move when it slides over.

2. Select the preparation of the appropriate wet film thickness and place it on the short side of the sample, close to parallel or specified positions.

3. Pour about 5 ml of the sample on the front of the frame-type four-sided prepper.

4. Press and hold both ends of the fabricator with your fingers, slide at a constant speed of 150 mm/s, and finally obtain a wet film with the desired wet film thickness.

4. After use, the four-sided Applicator should be scrubbed with a suitable solvent, and the surface should be coated with oil or Vaseline.

Use advantage

Frame type Wet Film Applicator is suitable for coating wet films of specific thicknesses, suitable for coatings, inks, paints and other industries.

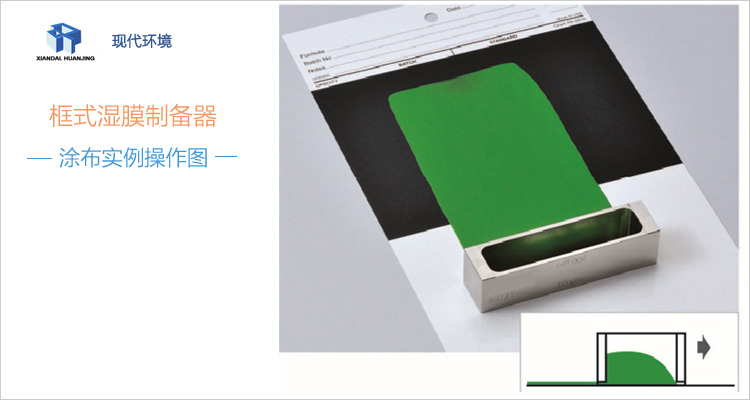

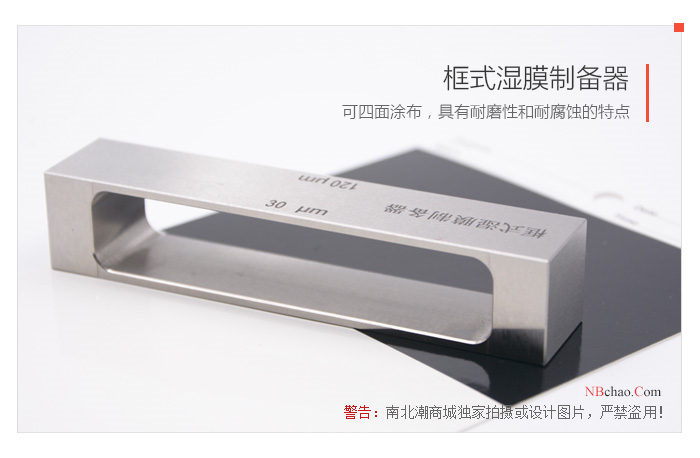

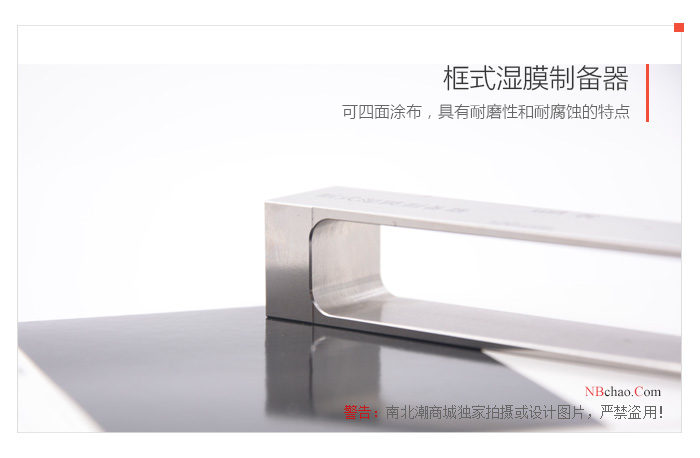

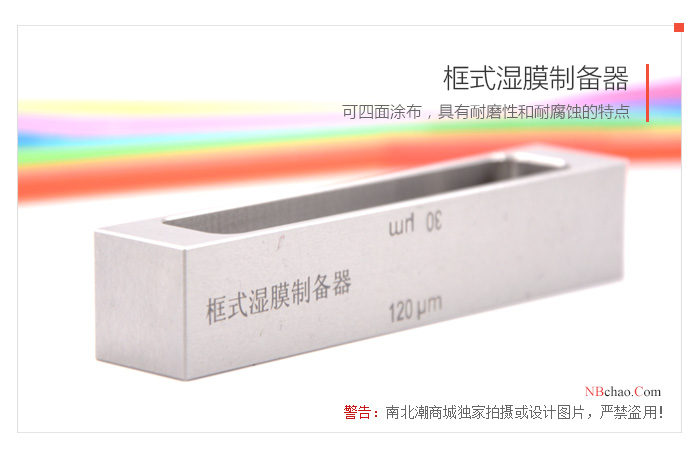

Product real picture

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
