JINGHUAYIQI LD-OY Pneumatic gravure plate Ink Proofer

SE
Customized models, can be directly printing monochrome, squeegee pressure, speed adjustable, gravure plate roller length 220mm, prism, tapered, connected prism, hexagonal four kinds of mesh in one roller, with a light roller.
Certificate
Contact
Details SPEC VIDEO

JingHuaYiQi LD-OY (customized) Gravure plate Ink ProoferSPEC

JingHuaYiQi LD-OY (customized) Gravure plate Ink ProoferDetails

JingHuaYiQi LD-OY (customized) Gravure plate Ink ProoferPacking list

SKU
NB044092
Gravure plate roller length
200mm
Gravure plate roller diameter
140mm
Roller length
180mm
Rubber roller specifications
Φ220mm
Proofing effective area
60 * 108Mm/grid (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 85%, 90%, 95%, 100%, gray scale)
Standard anilox roller
The number of lines is 50-60, and there are 4 kinds of mesh types: prism, cone, communicating prism, and hexagon in one roller, and another light roller.
color depth
15Um, 25um, 35um, 45um, you can engrave the pattern according to the customer's want
Total power consumption
450W
Power
220V 50Hz
Dimensions
500*690*360mm
Weight
110kg
LD-OY (customized)
Gravure plate Ink Proofer
Customized models, can be directly printing monochrome, squeegee pressure, speed adjustable, gravure plate roller length 220mm, prism, tapered, connected prism, hexagonal four kinds of mesh in one roller, with a light roller.

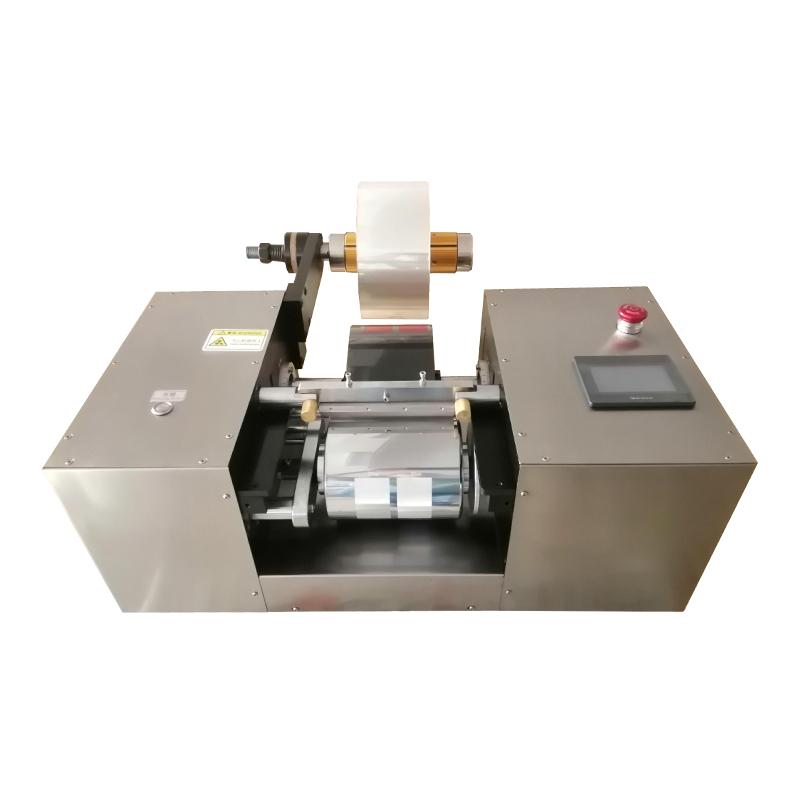

JINGHUAYIQI LD-OY Pneumatic gravure plate Ink Proofer Picture

Introduction

Pneumatic gravure ink proofing machine is a kind of equipment that uses the principle of aerodynamics and is specially used for ink proofing in gravure printing. Gravure printing is a high-precision printing technology, which is often used to print credit cards, packaging materials and other fields that require high printing quality. This proofing machine controls the ejection of ink through a pneumatic system, and evenly coats the ink on the gravure, so as to realize the preview and debugging of the printing effect. It plays a key role in the gravure printing process, ensuring the quality and consistency of the printed matter.

Product Features

1. Servo motor precision control system

2. Running in round pressing mode

3. Printing pressure and speed can be adjusted (0-754N.m), printing speed: 0-100M per minute

4. The pressure of the printing scraper can be adjusted, the speed can be adjusted, and the computer program control system

5. Suitable for gravure printing ink proofing, (water-based, solvent-based ink) use

Can directly print monochrome products, printing substrates: film, paper. Ink can also be detected

6. Use a Spectrophotometer to detect ink color

FAQ
QIf you want to customize, the number of lines is 50-60, different mesh types, prisms, cones, connected prisms, hexagons, etc. The mesh of each roller is different, can you do it?
A It can be done, but it requires laser production. The length of the anilox roller should be at least 220mm. Now our standard roller length is 180mm, that is, the machine needs to be widened by 40mm.
QIs the 60 mesh type quadrilateral or hexagonal, pyramid or prism?
A Quadrilateral diamond dot
