MODERNER SZQ-37.5 (GB Bird-type) Stainless Steel Film Applicator 37.5 μm film thickness

SZQ-37.5 (GB Bird-type)

Film Applicator

Introduction to SZQ-37.5 Stainless Steel Wet Film Preparator

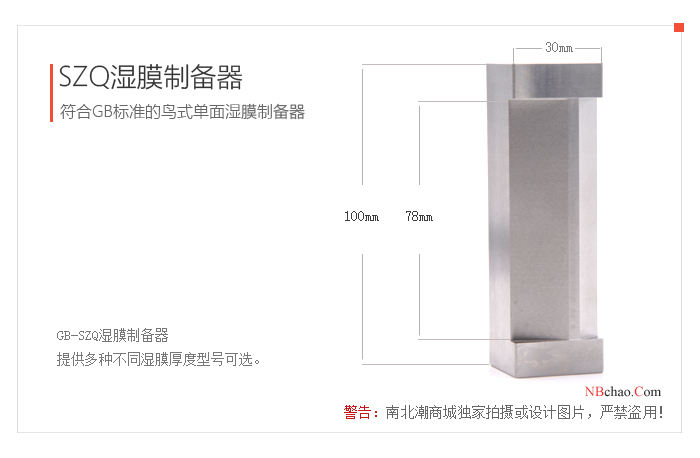

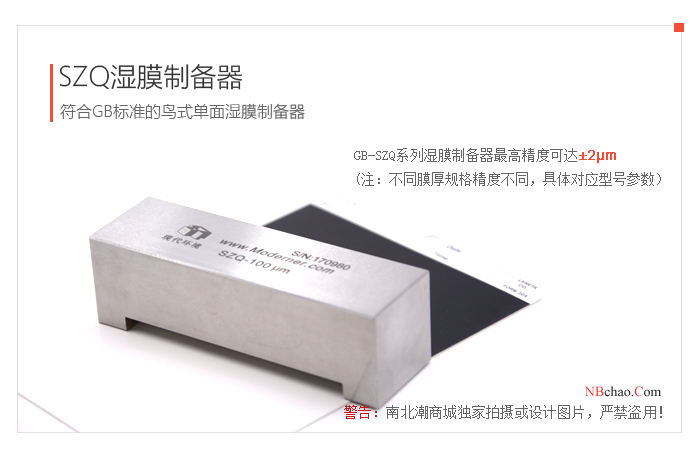

MODERNER SZQ-37.5 stainless steel Wet Film Applicator is a GB stainless steel Wet Film Applicator with a groove width of 78mm and a coating film thickness of 37.5μm. The coating accuracy of SZQ-37.5 is ±2μm. SZQ-37.5 stainless steel Wet Film Applicator is a GB bird-type Wet Film Applicator, which is suitable for preparing coating films in coatings, paints, inks, colorants and other industries.

Material and hardness

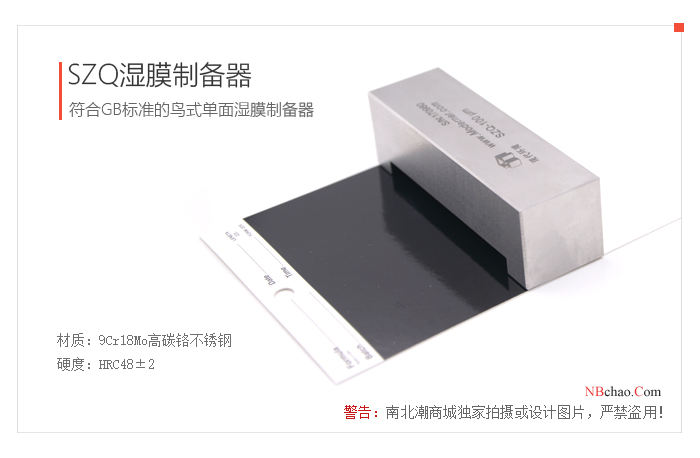

MODERNER SZQ-37.5 (GB bird type) stainless steel Wet Film Applicator is made of 9Cr18Mo high carbon chromium stainless steel with a hardness of HRC48±2.

Steps

1) Place the sample on the coating platform and fix it. It must not move when the wet Film Applicator slides over it.

2) According to the required wet film thickness, select the appropriate model of wet Film Applicator and place it on the short side of the sample, close to parallel or at a specified position.

3) Then pour about 5 ml of sample in front of the wet Film Applicator, hold both ends of it with your fingers, and slide it at a constant speed of 150 mm/second, that is, apply a wet film with the required thickness.

4) After use, clean and dry the wet Film Applicator with solvent, and apply oil or Vaseline on the surface.

Note: The wet Film Applicator should be kept dry when not in use.

Application

SZQ-37.5 (GB bird type) stainless steel wet Film Applicator is used to coat wet films of specified thickness, and is suitable for coatings, inks, paints and other industries.

Product description picture

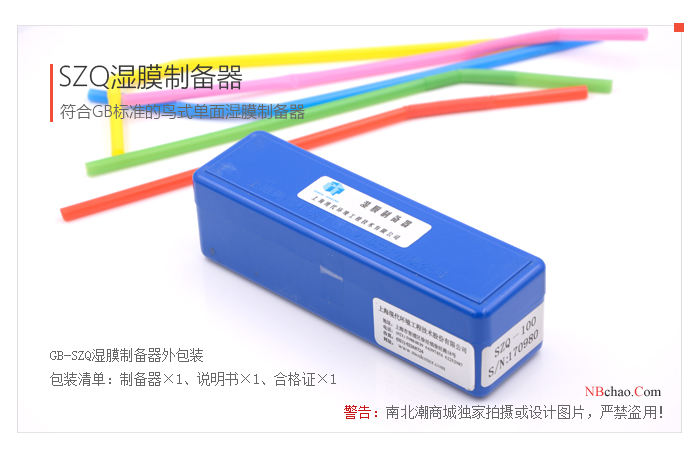

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
