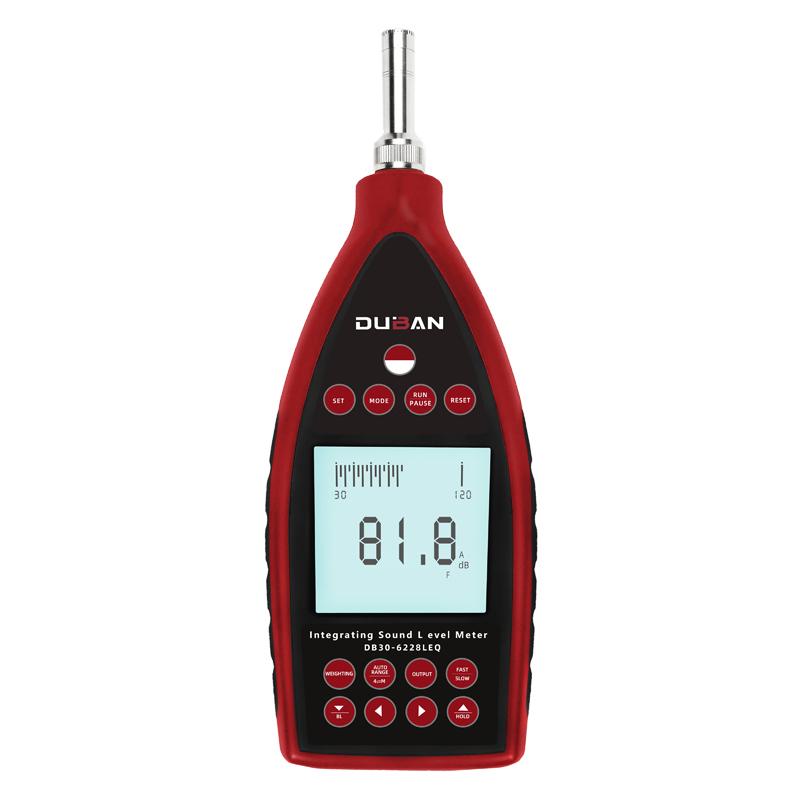

DUBAN DB30-6228ILEQ Pulse Integrator Sound Level Meter, Pulse + Integrator + Statistical Level 1 Sound Level Meter

DB30-6228ILEQ

Pulse Integrator Sound Level Meter

DB30-6228ILEQ is a 1-stage pulse integral sound level meter, which complies with GB/T 3785, IEC 61672-2002 and JJG 188-2017 standards. With integration and statistical functions, it can store 800 sets of data for continuous measurement up to 6 days. Support A, C, Lin Frequency counting, frequency range 10Hz-20kHz, measurement range 25dB (A)~ 130dB (A). Digital detection technology improves stability, large screen dynamic LCD display, supports Bluetooth printing and USB communication.

Applications

The Pulse Integrating Sound Level Meter is not only a general purpose sound level meter for measuring exponential time weighted sound levels, it is also a pulse sound level meter. The performance of the device complies with the requirements of GB/T 3785 and IEC 61672-2002 standards for Class 1 sound level meters, and also complies with the JJG 188-2017 standard. It is widely used for noise measurement in various industrial environments and environmental noise census measurements. It is especially suitable for sound level measurement of various noises from the environment, machinery, transportation, ships, etc. It is also suitable for industrial environmental protection, construction, health, teaching and scientific research. needs in many fields.

Features

This pulse integrating sound level meter has the following features:

• It complies with the performance requirements of Class 1 sound level meters according to GB/T 3785 and IEC 61672-2002 standards, and also complies with JJG 188-2017 standards.

• Equipped with integration and statistical functions, it can store up to 800 sets of data in a single measurement, and continuous measurement can last up to 6 days. The stored data can be easily retrieved and printed, and users can also check the collected data when the full-time measurement is paused.

• Provides three time weighting gear options: fast (F), slow (S) and pulse (I).

• Digital detection technology is used to replace the traditional sound level meter, thereby significantly improving the stability and reliability of the instrument.

• Equipped with a large screen display, the information is presented clearly and intuitively, and it supports dynamic scale display.

• Users can choose to use a Bluetooth printer to print measurement data.

• Supports data output via USB cable and Bluetooth to facilitate communication with PC for data transmission and analysis.

Packing list：Host X1, windshield X1, portable case (B04) X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
