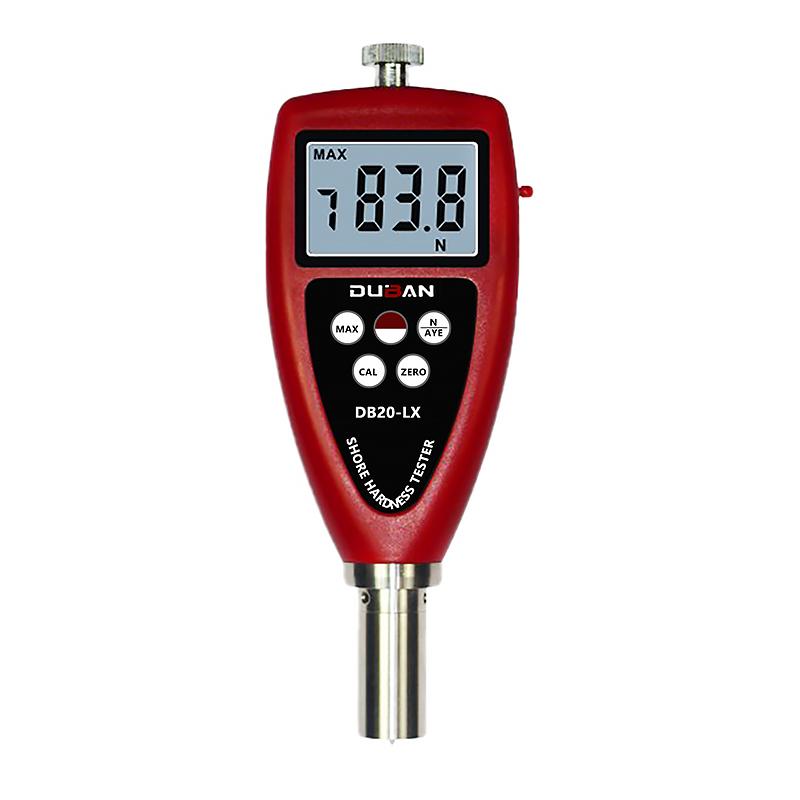

DUBAN DB20-LX-C ASKER-C type Hardness Tester R2.5/822gf sponge/foam rubber
SE
DB20-LX-C
-
LIULING LX-C rubber hardness gauge$ 242.00SE -
LIULING LX-C rubber and plastic microporous hardness gauge machine$ 506.00SE -
Sponge Shore Durometer LX-C-2 Hypertherm Shore C Hardness Gauge Low Hardness Material Test, Double Pointer$ 142.00SE -
Microporous material Hardness Gauge LX-C HBO foam, sponge, rubber microporous material and other low hardness testing meter$ 136.00SE
Duban DB20-LX-C ASKER-C type Hardness TesterSPEC
Duban DB20-LX-C ASKER-C type Hardness TesterDetails
Duban DB20-LX-C ASKER-C type Hardness TesterPacking list
- SKU
- NB044125
- Resolution
- 0.1HC
- Accuracy
- ≤1HC
- Measurement range
- >90B <20D
- Display parameters
- Hardness/Average/MAX Maximum
- Operating Environment
- Temperature 0~40 ℃ Humidity < 90RH
- Power
- 2X1.5v AAA 7 batteries
- size
- 176x63x25 mm
- Weight
- 310 g (without battery)
The Shore Hardness Tester series includes eight different models: A, B, C, D, E, O, DO, and OO, designed to meet various hardness measurement needs. These instruments have their own unique measuring probe sizes, measurable objects and hardness value ranges, and can be widely used in fields such as rubber and plastic hardness determination.
main feature
Integrated design, compact and lightweight, easy to carry and operate.
Supports metric and imperial unit conversion, has average value calculation, maximum value latch and under-Voltage alarm indication functions to improve measurement accuracy and reliability.
Data can be transmitted and recorded with the computer through USB data line output and RS-232 data line output to facilitate data management and analysis.
A Bluetooth™ data output option is also provided, making data transfer more convenient.
These Hardness Testers are not only simple in structure and easy to use, but also small in size and light in weight. They can be hand-held for measurement, and can also be installed on the corresponding model of fixed load rack for fixed load measurement. Whatever your application, these instruments can meet your hardness measurement needs.

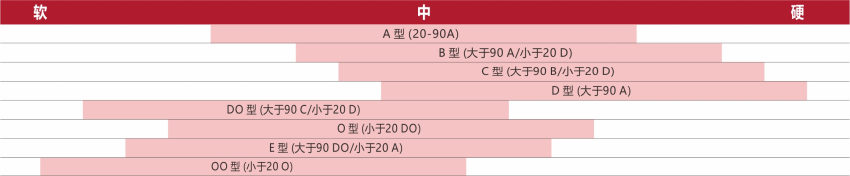

Optional models
| model | stylus | hardness value |
| A | 0.79 truncated cone | 20-90A |
| Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastics, thermoplastic elastomers, waxes, felt products, leather products | ||
| B | R0.1 tapered | >90A <20D |
| Moderately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materials | ||
| C | 0.79 truncated cone | >90B <20D |
| Medium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomers | ||
| D | R0.1 tapered | >90A |
| Hard plastic, hard rubber, hard thermoplastic, hard thermoplastic elastomer | ||
| DO | R1.2 hemispherical | >90C <20D |
| Moderately hard rubber, thermoplastics, thermoplastic elastomers, high-density textile spindles | ||
| O | R1.2 hemispherical | <20DO |
| Soft rubbers, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindles | ||
| E | R2.5 hemispherical | >90DO <20D |
| Hard sponge, EVA | ||
| OO | R1.2 hemispherical | <20O |
| Very soft rubber, very soft plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissue | ||
Hardness selection:
Optional :
Shore Hardness Tester test rack
USB data cable output
RS-232C data line output
BluetoothBluetooth™ data output
The use of Shore Hardness Tester test bracket can effectively improve the accuracy of rubber hardness measurement. The test force is applied through the weight of the bracket on the central axis of the durometer needle , so that the pressure foot of the Hardness Tester presses on the sample, thereby obtaining a comparison Stable and accurate hardness values.
- 1GB/T 39693.2-2025《Rubber, vulcanized or thermoplastic—Determination of hardness—Part 2: Hardness between 10 IRHD and 100 IRHD》
- 2JJF 2075-2023《 Calibration Specification for International Rubber Hardness Degrees Testers(Scales N,H,L)》
- 3JJF 2074-2023《Calibration Specification for International Rubber Hardness Degrees Reference Blocks(Scales N,H,L)》
- 4KS MISO 868-2001《Plastics and Ebonite - Determination of Indentation Hardness by Means of a Durometer (Shore Hardness)》
- 5GB/T 10357.5-2023《Test of mechanical properties of furniture—Part 5:Strength and durability of storage units》
- 6GB/T 603-2023《Chemical reagent—Preparations of reagent solutions for use in test methods》
- 7GB/T 18173.3-2014《Polymer water-proof materials―Part 3：Hydrophilic expasion rubber》
- 8GB/T 531-1999《Rubber-Determination of indentation hardness by means of pocket hardness meters》
