DUBAN DB20-LX-D Type D Shore Durometer 30 °/R0.1/4536gf Hard Rubber/Hard Plastic
SE
DB20-LX-D
Duban DB20-LX-D D Shore Shore DurometerSPEC
Duban DB20-LX-D D Shore Shore DurometerDetails
Duban DB20-LX-D D Shore Shore DurometerPacking list
- SKU
- NB044126
- Resolution
- 0.1HD
- Accuracy
- ≤1HD
- Measurement range
- >90A
- Display parameters
- Hardness/Average/MAX Maximum
- Operating Environment
- Temperature 0~40 ℃ Humidity < 90RH
- Power
- 2X1.5v AAA 7 batteries
- size
- 176x63x25 mm
- Weight
- 310 g (without battery)
The Shore Hardness Tester series includes eight models: A, B, C, D, E, O, DO, and OO. It is designed to provide you with a wide range of hardness measurement solutions to meet the hardness measurement needs of different objects, especially for rubber. and hardness determination of plastics.
Features
Diversity: Eight models are available, each with unique measurement probe sizes, measurable objects and hardness value ranges to meet a variety of application needs.
Portability: The structure is simple, the volume is compact, and the weight is light. It is suitable for carrying around for handheld measurement, and can also be easily installed on the same type of fixed load rack produced in the supporting equipment for fixed load measurement.
Data processing: Supports metric and imperial unit conversion, has average value calculation, maximum value latch and under-Voltage alarm indication functions to ensure accurate and reliable measurement results.
Data transmission: Data can be transmitted and recorded with the computer through USB data line output and RS-232 data line output to facilitate data management and analysis.
Bluetooth connection: Bluetooth™ data output option is provided, making data transmission more convenient and enabling wireless connection.
No matter what hardness measurement solution your application requires, the Shore Hardness Tester series can meet your needs. It is portable and powerful, making it a good choice for hardness measurement.
Optional models
| model | stylus | hardness value |
| A | 0.79 truncated cone | 20-90A |
| Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastics, thermoplastic elastomers, waxes, felt products, leather products | ||
| B | R0.1 tapered | >90A <20D |
| Moderately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materials | ||
| C | 0.79 truncated cone | >90B <20D |
| Medium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomers | ||
| D | R0.1 tapered | >90A |
| Hard plastic, hard rubber, hard thermoplastic, hard thermoplastic elastomer | ||
| DO | R1.2 hemispherical | >90C <20D |
| Moderately hard rubber, thermoplastics, thermoplastic elastomers, high-density textile spindles | ||
| O | R1.2 hemispherical | <20DO |
| Soft rubbers, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindles | ||
| E | R2.5 hemispherical | >90DO <20D |
| Hard sponge, EVA | ||
| OO | R1.2 hemispherical | <20O |
| Very soft rubber, very soft plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissue | ||

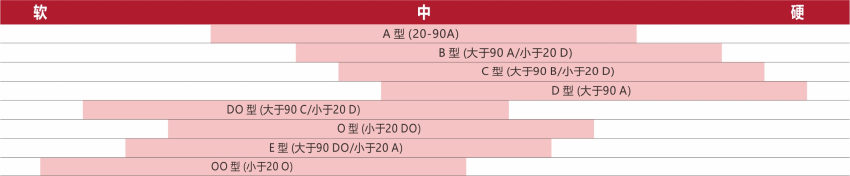

Hardness selection:
Optional :
Shore Hardness Tester test rack
USB data cable output
RS-232C data line output
BluetoothBluetooth™ data output

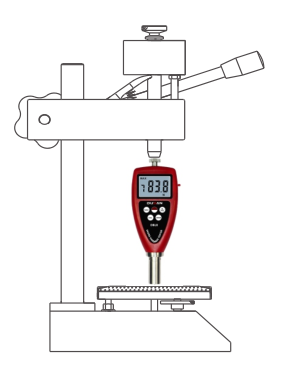

The use of Shore Hardness Tester test bracket can effectively improve the accuracy of rubber hardness measurement. The test force is applied through the weight of the bracket on the central axis of the durometer needle , so that the pressure foot of the Hardness Tester presses on the sample, thereby obtaining a comparison Stable and accurate hardness values.
- 1GB/T 39693.2-2025《Rubber, vulcanized or thermoplastic—Determination of hardness—Part 2: Hardness between 10 IRHD and 100 IRHD》
- 2DIN 《Shore A and Shore D hardness testing of rubber》
- 3ASTM -2022《Standard Test Method for Indentation Hardness of Elastomeric-Type Sealants by Means of a Durometer》
- 4JJG 2006-1996《Measuring Instruments of Hardness Testing on Shore Scale D》
- 5JJF 2075-2023《 Calibration Specification for International Rubber Hardness Degrees Testers(Scales N,H,L)》
- 6JJF 2074-2023《Calibration Specification for International Rubber Hardness Degrees Reference Blocks(Scales N,H,L)》
- 7JC/T 2570-2020《Color sand flooring materials》
- 8JB/T 8284-1999《Specifications for D - type Shore hardness testers》
- 9KS MISO 868-2001《Plastics and Ebonite - Determination of Indentation Hardness by Means of a Durometer (Shore Hardness)》
- 10GB/T 603-2023《Chemical reagent—Preparations of reagent solutions for use in test methods》
