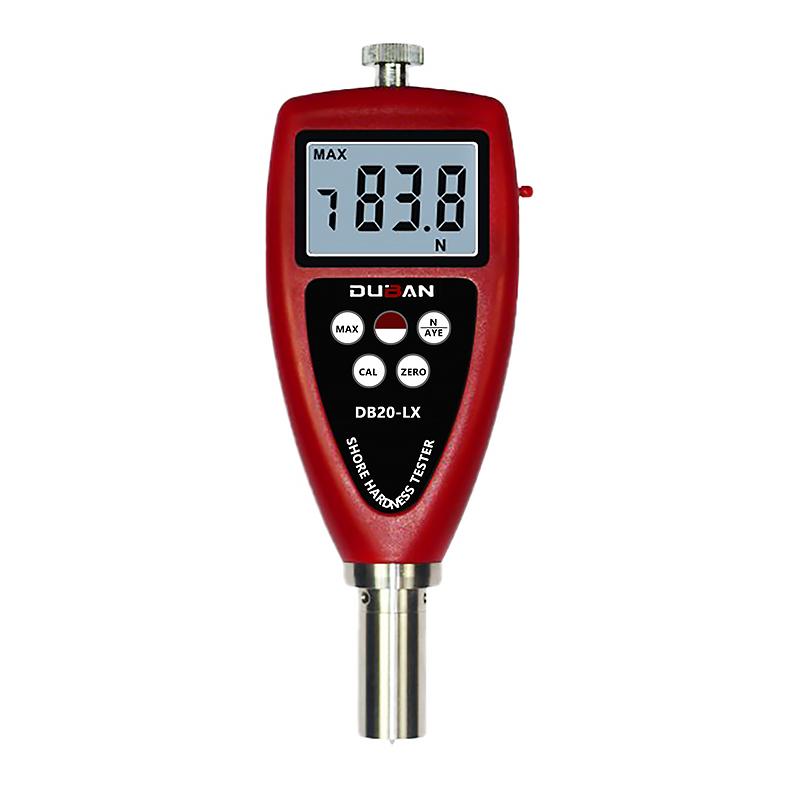

DUBAN DB20-LX-Shore C Type Shore Durometer 35 °/0.79/4536gf Medium Hard Rubber/Medium Hard Plastic
SE
DB20-LX-Shore C
-
LIULING LX-C rubber hardness gauge$ 242.00SE -
LIULING LX-C rubber and plastic microporous hardness gauge machine$ 506.00SE -
Sponge Shore Durometer LX-C-2 Hypertherm Shore C Hardness Gauge Low Hardness Material Test, Double Pointer$ 142.00SE -
Microporous material Hardness Gauge LX-C HBO foam, sponge, rubber microporous material and other low hardness testing meter$ 136.00SE
Duban DB20-LX-Shore C C Shore Shore DurometerSPEC
Duban DB20-LX-Shore C C Shore Shore DurometerDetails
Duban DB20-LX-Shore C C Shore Shore DurometerPacking list
- SKU
- NB044128
- Resolution
- 0.1H
- Accuracy
- ≤1H
- Measurement range
- >90B <20D
- Display parameters
- Hardness/Average/MAX Maximum
- Operating Environment
- Temperature 0~40 ℃ Humidity < 90RH
- Power
- 2X1.5v AAA 7 batteries
- size
- 176x63x25 mm
- Weight
- 310 g (without battery)
The Shore Hardness Tester series is divided into eight models: A, B, C, D, E, O, DO, and OO; we will provide you with eight measuring instruments with different measuring probe sizes, measurable objects, and hardness values . , to meet your needs for hardness measurement applications of different objects; widely used in hardness measurement of rubber and plastics. It has the characteristics of simple , easy use, small size and light body, and intuitive reading. It can be carried with you for hand-held measurement, or it can be installed on the fixed load rack of the same model produced in the supporting equipment for fixed load measurement.
Features
* Integrated design, small size and light weight.
* Metric/imperial unit conversion, with average value calculation, maximum value latch and under-Voltage alarm indication functions.
* Use "USB data line output" and "RS-232 data line output" to communicate with PC.
* Provides "Bluetooth™ data output" selection.
Optional models
| model | stylus | hardness value |
| A | 0.79 truncated cone | 20-90A |
| Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastics, thermoplastic elastomers, waxes, felt products, leather products | ||
| B | R0.1 tapered | >90A <20D |
| Moderately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materials | ||
| C | 0.79 truncated cone | >90B <20D |
| Medium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomers | ||
| D | R0.1 tapered | >90A |
| Hard plastic, hard rubber, hard thermoplastic, hard thermoplastic elastomer | ||
| DO | R1.2 hemispherical | >90C <20D |
| Moderately hard rubber, thermoplastics, thermoplastic elastomers, high-density textile spindles | ||
| O | R1.2 hemispherical | <20DO |
| Soft rubbers, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindles | ||
| E | R2.5 hemispherical | >90DO <20D |
| Hard sponge, EVA | ||
| OO | R1.2 hemispherical | <20O |
| Very soft rubber, very soft plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissue | ||
Hardness selection:
Optional :
Shore Hardness Tester test rack
USB data cable output
RS-232C data line output
BluetoothBluetooth™ data output
The use of Shore Hardness Tester test bracket can effectively improve the accuracy of rubber hardness measurement. The test force is applied through the weight of the bracket on the central axis of the durometer needle , so that the pressure foot of the Hardness Tester presses on the sample, thereby obtaining a comparison Stable and accurate hardness values.
