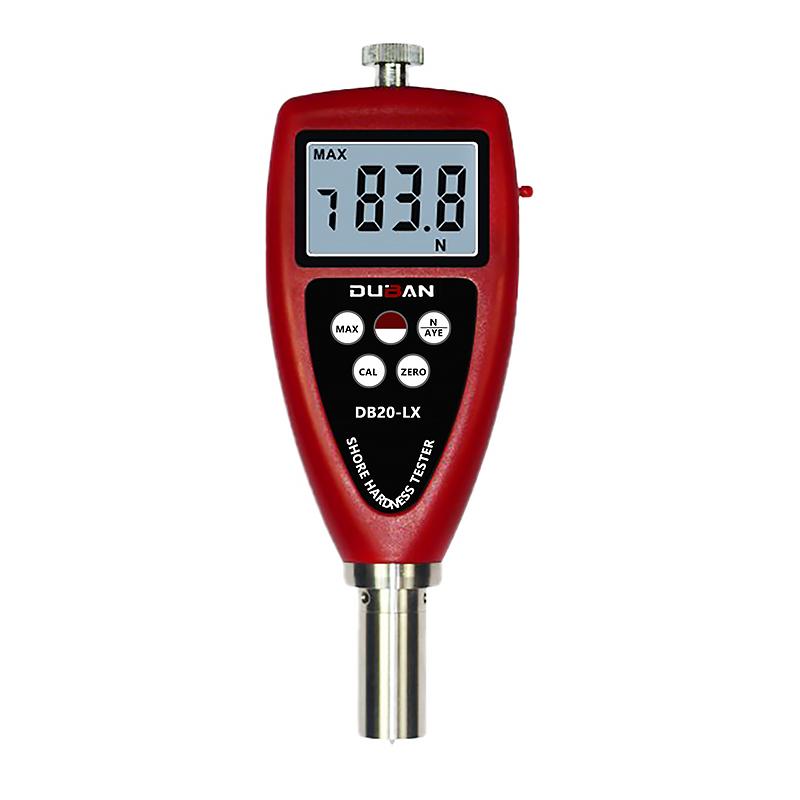

DUBAN DB20-LX-O Shore Durometer R1.2/822gf Soft Rubber

With R1.2 hemispherical stylus, Hardness value < 20DO, suitable for soft rubber, thermal plasticity plastics, thermal plasticity resilience, very soft plastics and thermal plasticity plastics, Medium Density Spinning & weaving ingots.

$382.00/set

PromotionLoading...

Coupon

Model：

DB20-LX-O

Certificate

Duban

Contact

Details SPEC Con CAT OI

Duban DB20-LX-O O-Shore Shore DurometerSPEC

Duban DB20-LX-O O-Shore Shore DurometerDetails

Duban DB20-LX-O O-Shore Shore DurometerPacking list

SKU: NB044131

Resolution: 0.1H

Accuracy: ≤1H

Measurement range: <20DO

Display parameters: Hardness/Average/MAX Maximum

Operating Environment: Temperature 0~40 ℃ Humidity < 90RH

Power: 2X1.5v AAA 7 batteries

size: 176x63x25 mm

Weight: 310 g (without battery)

DB20-LX-O

O-Shore Shore Durometer

The Shore Hardness Tester series is divided into eight models: A, B, C, D, E, O, DO, and OO; we will provide you with eight measuring instruments with different measuring probe sizes, measurable objects, and hardness values . , to meet your needs for hardness measurement applications of different objects; widely used in hardness measurement of rubber and plastics. It has the characteristics of simple , easy use, small size and light body, and intuitive reading. It can be carried with you for hand-held measurement, or it can be installed on the fixed load rack of the same model produced in the supporting equipment for fixed load measurement.

Features

* Integrated design, small size and light weight.

* Metric/imperial unit conversion, with average value calculation, maximum value latch and under-Voltage alarm indication functions.

* Use "USB data line output" and "RS-232 data line output" to communicate with PC.

* Provides "Bluetooth™ data output" selection.

Optional models

model	stylus	hardness value
A	0.79 truncated cone	20-90A
	Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastics, thermoplastic elastomers, waxes, felt products, leather products
B	R0.1 tapered	>90A <20D
	Moderately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materials
C	0.79 truncated cone	>90B <20D
	Medium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomers
D	R0.1 tapered	>90A
	Hard plastic, hard rubber, hard thermoplastic, hard thermoplastic elastomer
DO	R1.2 hemispherical	>90C <20D
	Moderately hard rubber, thermoplastics, thermoplastic elastomers, high-density textile spindles
O	R1.2 hemispherical	<20DO
	Soft rubbers, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindles
E	R2.5 hemispherical	>90DO <20D
	Hard sponge, EVA
OO	R1.2 hemispherical	<20O
	Very soft rubber, very soft plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissue

Hardness selection:

Optional :

Shore Hardness Tester test rack

USB data cable output

RS-232C data line output

BluetoothBluetooth™ data output

Duban DB20-LX-A Type A Shore Hardness Tester Details Figure 2

The use of Shore Hardness Tester test bracket can effectively improve the accuracy of rubber hardness measurement. The test force is applied through the weight of the bracket on the central axis of the durometer needle , so that the pressure foot of the Hardness Tester presses on the sample, thereby obtaining a comparison Stable and accurate hardness values.

Duban DB20-LX-A Type A Shore Hardness Tester Details Figure 3
