DUBAN DB22-HM455 Leeb Hardness Tester

SE
Display 12.5mm LCD, with backlight, 9 kinds of tested materials, Measurement range 170~960HLD, Measurement accuracy relative error +/- 0.8% (HLD = 800); Repeatability +/- 0.8%
$471.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI

Duban DB22-HM455 Leeb Hardness TesterSPEC

Duban DB22-HM455 Leeb Hardness TesterDetails

Duban DB22-HM455 Leeb Hardness TesterPacking list

SKU
NB044136
monitor
12.5Mm LCD with backlight
material under test
9 kinds
Measurement range
170~960HLD
Measurement Accuracy
Relative error +/- 0.8% (HLD = 800); Repeatability +/- 0.8%
memory function
50 sets of data
Impact device
Type D, self-Weight 75g
Operating temperature
-10~50°C
Relative Humidity
<90%RH
Power Supply
2 AA batteries
size
137mmx76mmx32mm
DB22-HM455
Leeb Hardness Tester
Display 12.5mm LCD, with backlight, 9 kinds of tested materials, Measurement range 170~960HLD, Measurement accuracy relative error +/- 0.8% (HLD = 800); Repeatability +/- 0.8%

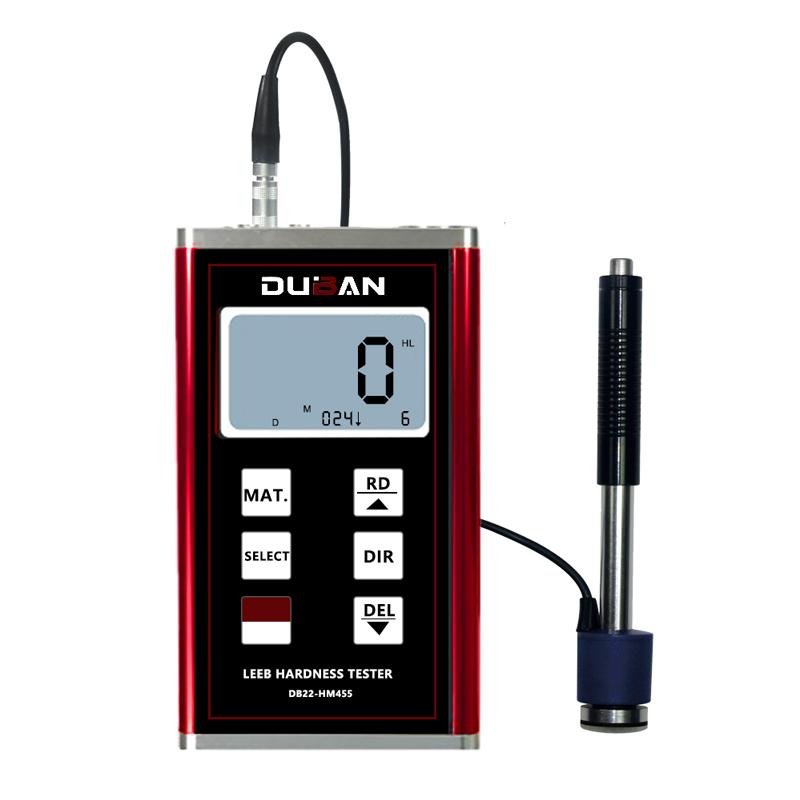

DUBAN DB22-HM455 Leeb Hardness Tester Picture

Product Applications

It is used for installed mechanical or permanent assemblies, mold cavities, heavy workpieces, pressure vessels, turbine-generator sets and equipment, workpieces with very narrow test spaces, bearings, etcFailure analysis of parts requires regular and original documentation of test results, material classification in metal material warehouses, and rapid inspection of large workpieces at multiple measuring points.

Features

  • Featuring a sturdy aluminum alloy shell for maximum durability.

  • The test material and test direction can be selected via the keyboard.

  • Six hardness (HL, HRC, HRB, HB, HV, HS) can be converted.

  • The results of each test can be displayed repeatedly, and gross errors can be removed.

  • It can store 50 sets of measured values, test materials, test directions and other information.

  • Allows the user to calibrate for more accurate measurements.

  • manual and automatic shutdown functions; Low battery Voltage indication function.

  • USB data cable output is used to communicate with PC; Bluetooth and Bluetooth data output options are available.
