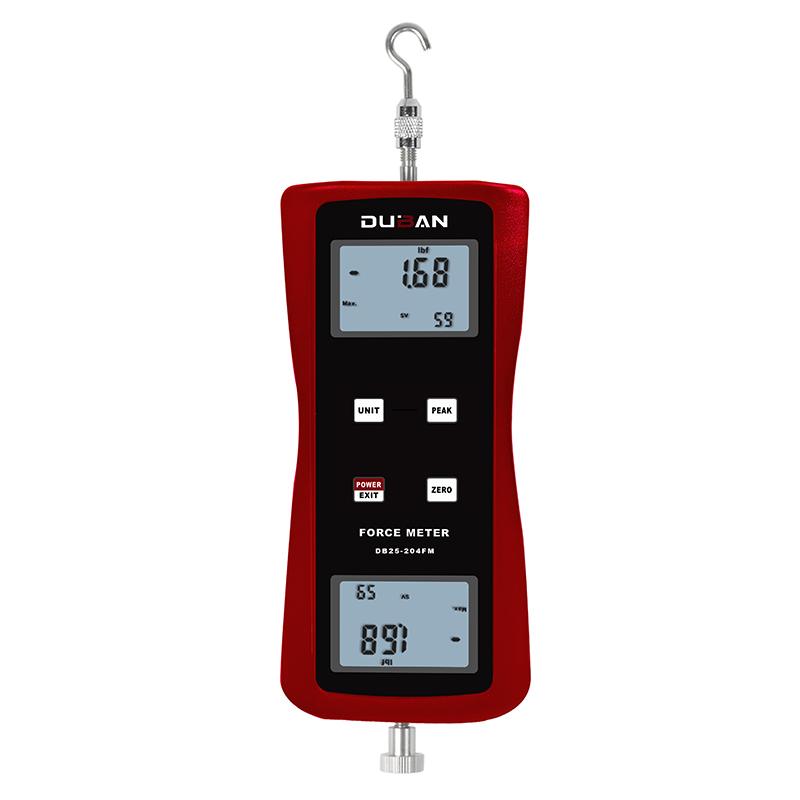

DUBAN DB25-204FM-20N Integrated Force Gauge Tester

Measurement range +/- 2kgf; +/-2000gf; +/- 19.6N; +/- 4.4Lbf, resolution 0.001kgf; 1gf; 0.01N; 0.001Lbf, accuracy class 0.5, accuracy +/- 0.5% FS (range) +/- 1 digital peak, units kgf, gf, N, Lbf

$249.00/set

PromotionLoading...

Coupon

Model：

DB25-204FM-20N

Certificate

Duban

Contact

Details SPEC Con CAT OI

Duban DB25-204FM-20N Force GaugeSPEC

Duban DB25-204FM-20N Force GaugeDetails

Duban DB25-204FM-20N Force GaugePacking list

SKU: NB044149

Measurement range: ±2kgf；±2000gf；±19.6N；±4.4Lbf

Resolution: 0.001kgf；1gf；0.01N；0.001Lbf

Accuracy: Level 0.5

Accuracy: +/- 0.5% FS (range) +/- 1 digital peak

unit: kgf, gf, N, Lbf

Measured value: Peak, instantaneous value

monitor: Four-digit large LCD, forward and reverse dual display

shutdown mode: 10 minutes automatic shutdown or manual shutdown

Backlight: Blue backlight

allowable load: 150% F.s (buzzer alarm when it exceeds 110% F.s)

Power: 2 AA batteries or 5V DC Power

Operating temperature: 0°C~40°C

Operating humidity: <80%

Operating Environment: No source and corrosive medium around

size: 199mmx76mmx37 mm

DB25-204FM-20N

Force Gauge

Measurement range +/- 2kgf; +/-2000gf; +/- 19.6N; +/- 4.4Lbf, resolution 0.001kgf; 1gf; 0.01N; 0.001Lbf, accuracy class 0.5, accuracy +/- 0.5% FS (range) +/- 1 digital peak, units kgf, gf, N, Lbf

Applications

The digital display push-pull force meter is a small, simple, multi-functional and high-precision thrust and pull force testing instrument. It is widely used in electronic appliances, building hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire-fighting equipment, pen making, and Push-pull load, insertion and extraction force testing, destructive testing, etc. in industries such as locks, fishing gear, chemical industry, power machinery, scientific research institutions, etc.

Features

High precision and high resolution. Digital display, no parallax.
Four measurement units of N (Newton), kg (kilogram), lb (pound), and g (gram) are available for selection and mutual conversion.
Peak hold function. Maintain peak value display until manually cleared to zero.
It can be set to automatically shut down after 10 minutes of no operation; it can also be shut down manually.
It can be powered by alkaline batteries; it can also be powered by a 5V DC power supply.

Attachment purpose

Duban DB25-204FM-20N integrated push and pull force gauge details picture 1

Series model

Duban DB25-204FM-20N integrated push and pull force gauge details picture 2
