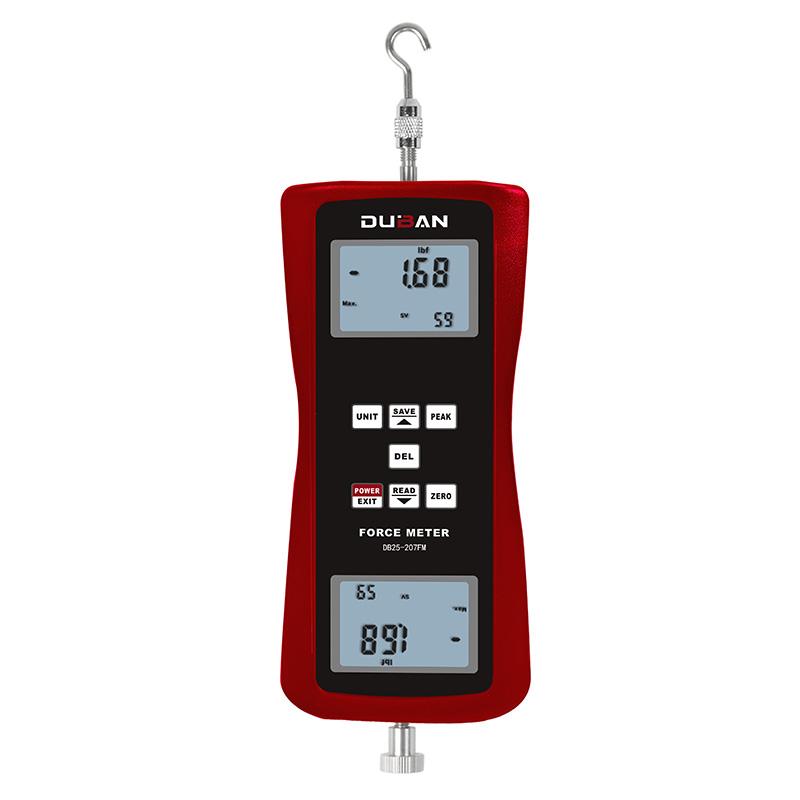

DB25-207FM-20N Integrated Force Gauge Tensile Tester
SE
DB25-207FM-20N
-
Sandu SHB-20 digital push-pull dynamometer, range 20N built-in Sensors$ 284.00SE -
Digital Tensiometer HZS-20 Haibao 20N/2kg/4.4lb$ 223.00SE -
Handheld Force Gauge Hypertherm HG-20 Push-pull Locometer 20N/0.01N$ 239.00SE -
Sandu SHB-20B Digital Display Push-pull Test Instrument, Maximum Load 20N$ 354.00SE -
DUBAN DB25-204FM-20N Integrated Force Gauge Tester$ 249.00SE
Duban DB25-207FM-20N One Force GaugeSPEC
Duban DB25-207FM-20N One Force GaugeDetails
Duban DB25-207FM-20N One Force GaugePacking list
- SKU
- NB044163
- Measurement range
- ±2kgf;±2000gf;±19.6N;±4.4Lbf
- Resolution
- 0.001kgf;1gf;0.01N;0.001Lbf
- Precision
- Level 0.2
- Accuracy
- +/- 0.2% FS (range) +/- 1 digital peak
- unit
- kgf, gf, N, Lbf
- Measured value
- Peak, instantaneous value
- display
- Four-digit large LCD, forward and reverse dual display
- shutdown mode
- 10 minutes automatic shutdown or manual shutdown
- Allowable load
- 150% F.s (buzzer alarm when over 110% F.s)
- Data output
- USB, Bluetooth
- Power
- 2 AA batteries or 6V DC Power
- Operating temperature
- 0°C~40°C
- Operating humidity
- <80%
- Operating Environment
- No source and corrosive medium around
- size
- 199x76x37mm
Product Description
The digital display push-pull force meter is a small, simple, multi-functional and high-precision thrust and pull force testing instrument. It is widely used in electronic appliances, building hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire-fighting equipment, pen making, and manufacturing. Push-pull load, insertion and extraction force testing, destructive testing, etc. in industries such as locks, fishing gear, chemical industry, power machinery, scientific research institutions, etc.
Features
High precision and high resolution. Digital display, no parallax.
Four measurement units of N (Newton), kg (kilogram), lb (pound), and g (gram) are available for selection and mutual conversion.
Peak hold function. Maintain peak value display until manually cleared to zero. Data storage function can store 99 test values.
Data output function can input data into the computer through data cable or Bluetooth for various analyses.
Green and environmentally friendly, it can be set to automatically shut down after 10 minutes of no operation; it can also be shut down manually.
It can be powered by alkaline batteries; it can also be powered by a 6V DC power supply.

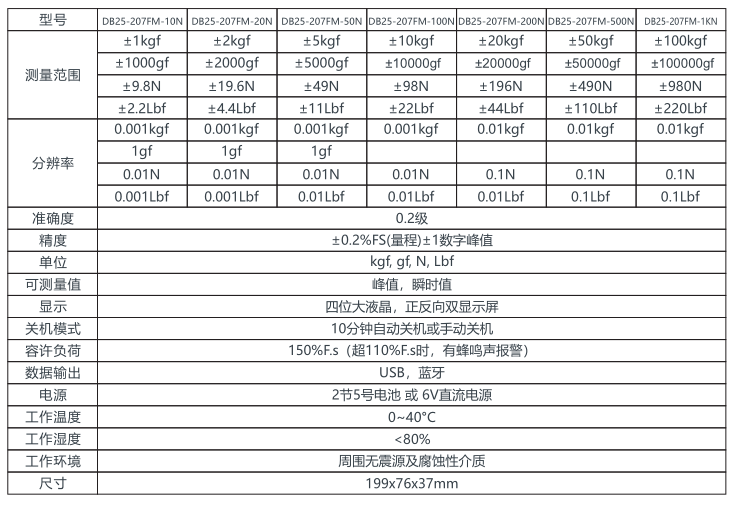

Series model
