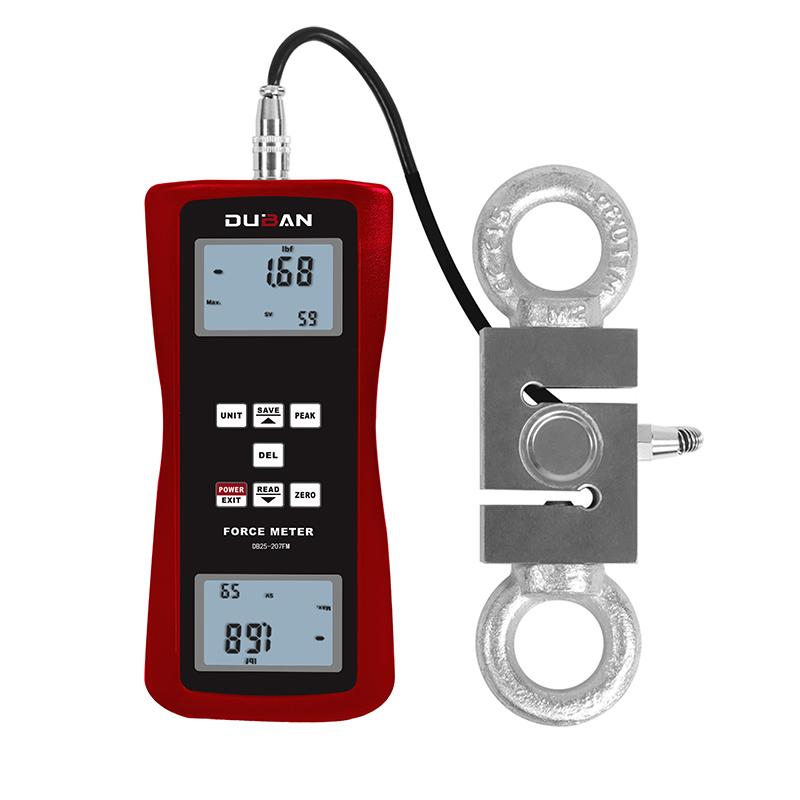

DB25-207FM-20KN Split Force Gauge External Thrust Tensile Tester

Measurement range +/-2000kgf; +/- 9999N; +/- 4400Lbf, Precision 0.2, accuracy +/- 0.2% FS (range) +/- 1 digital peak, unit kgf, gf, N, Lbf, Measured value peak, instantaneous value

$604.00/set

PromotionLoading...

Coupon

Model：

DB25-207FM-20KN

Certificate

Duban

Contact

Details SPEC Con CAT CAT

Duban DB25-207FM-20KN Split Force GaugeSPEC

Duban DB25-207FM-20KN Split Force GaugeDetails

Duban DB25-207FM-20KN Split Force GaugePacking list

SKU: NB044172

Measurement range: ±2000kgf;±9999N;±4400Lbf

Resolution: 0.01kgf (<100kg),0.1kgf (≥100kgf);0.1N (<1000N),1N (≥1000N);0.1Lbf (<1000Lbf),1Lbf (≥1000Lbf)

Precision: Level 0.2

Accuracy: +/- 0.2% FS (range) +/- 1 digital peak

unit: kgf, gf, N, Lbf

Measured value: Peak, instantaneous value

display: Four-digit large LCD, forward and reverse dual display

shutdown mode: 10 minutes automatic shutdown or manual shutdown

Allowable load: 150% F.s (buzzer alarm when over 110% F.s)

Data output: USB, Bluetooth

Power: 2 AA batteries or 6V DC Power

Operating temperature: 0~40°C

Operating humidity: <80%

Operating Environment: No source and corrosive medium around

size: Instrument: 199x76x37mm Sensors: 181x54x30mm

DB25-207FM-20KN

Split Force Gauge

Measurement range +/-2000kgf; +/- 9999N; +/- 4400Lbf, Precision 0.2, accuracy +/- 0.2% FS (range) +/- 1 digital peak, unit kgf, gf, N, Lbf, Measured value peak, instantaneous value

Product Description

The digital display push-pull force meter is a small, simple, multi-functional and high-precision thrust and pull force testing instrument. It is widely used in electronic appliances, building hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire-fighting equipment, pen making, and manufacturing. Push-pull load, insertion and extraction force testing, destructive testing, etc. in industries such as locks, fishing gear, chemical industry, power machinery, scientific research institutions, etc.

Features

High precision and high resolution. Digital display, no parallax.
Four measurement units of N (Newton), kg (kilogram), lb (pound), and g (gram) are available for selection and mutual conversion.
Peak hold function. Maintain peak value display until manually cleared to zero. Data storage function can store 99 test values.
Data output function can input data into the computer through data cable or Bluetooth for various analyses.
Green and environmentally friendly, it can be set to automatically shut down after 10 minutes of no operation; it can also be shut down manually.
It can be powered by alkaline batteries; it can also be powered by a 6V DC power supply.
