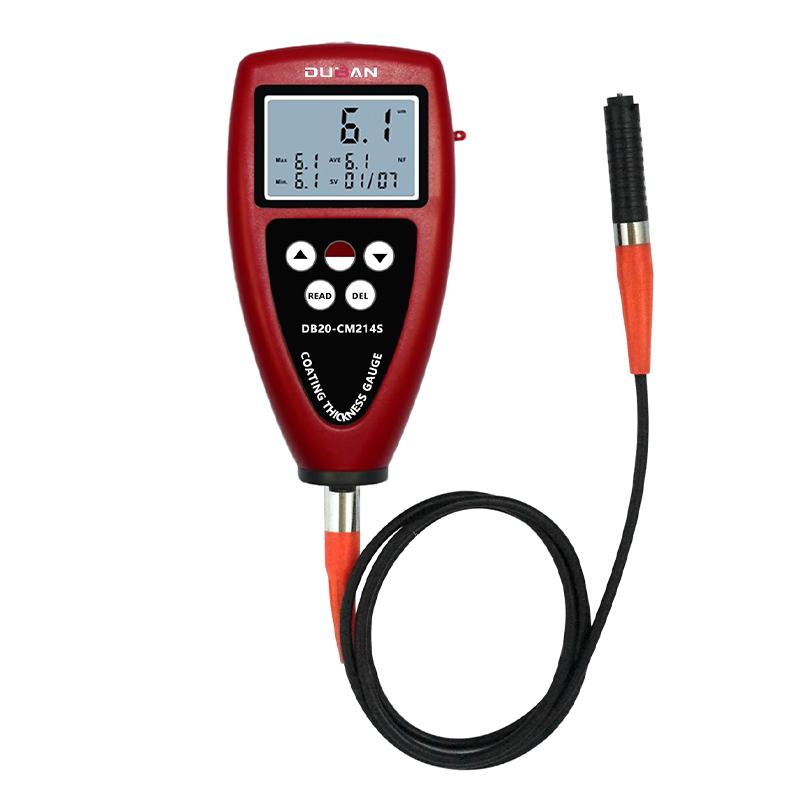

DUBAN DB20-CM214S Statistical coating Thickness Gauge split dual-use Film Thickness Gauge

DB20-CM214S

Statistical coating Thickness Gauge

Statistical type, Measurement principle magnetic Induction + eddy Current, measurement range 0~1250μm, error range +/- 1~ 3% n or +/- 2.5μm, minimum measurement surface 6mm

Applications

The statistical coating Thickness Gauge DB20-CM214 series instruments are divided into two types: (integral type) and (split type), which can store 99 sets of new measurement data values; they are the most widely used and the most accurate in measurement, and can measure almost all The base body, whether iron-based or non-iron-based; and equipped with RS-232C data connection cable, USB data connection and Bluetooth transmission function; the integral instrument is suitable for one-handed operation and the measurement is more stable, because in the measurement, large-type probes The large contact surface has better stability, allowing users to obtain continuous and repeatable measurement results; the split type provides a variety of probes for greater measurement mobility.

Features

• Dual-purpose coating Thickness Gauge for iron-based and non-ferrous-based coatings.

• There are two measurement methods available: single and continuous.

• Metric/imperial unit conversion, with functions such as manual shutdown, automatic shutdown and under-Voltage prompt.

• Automatically memorizes calibration values and automatically identifies the material of the measured substrate; there is a buzzer sound during operation, but the buzzer does not sound during continuous measurement.

• Uses USB data cable output, RS-232C data cable and software to communicate with PC; optional Bluetooth™ data output option is also provided.

Packing list：Host X1, wrist rope buckle X1, titanium base (1 piece) X1, aluminum base (1 piece) X1, calibrated diaphragm (1 set) X1, measurement Sensors X1, portable case X1, operation manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
