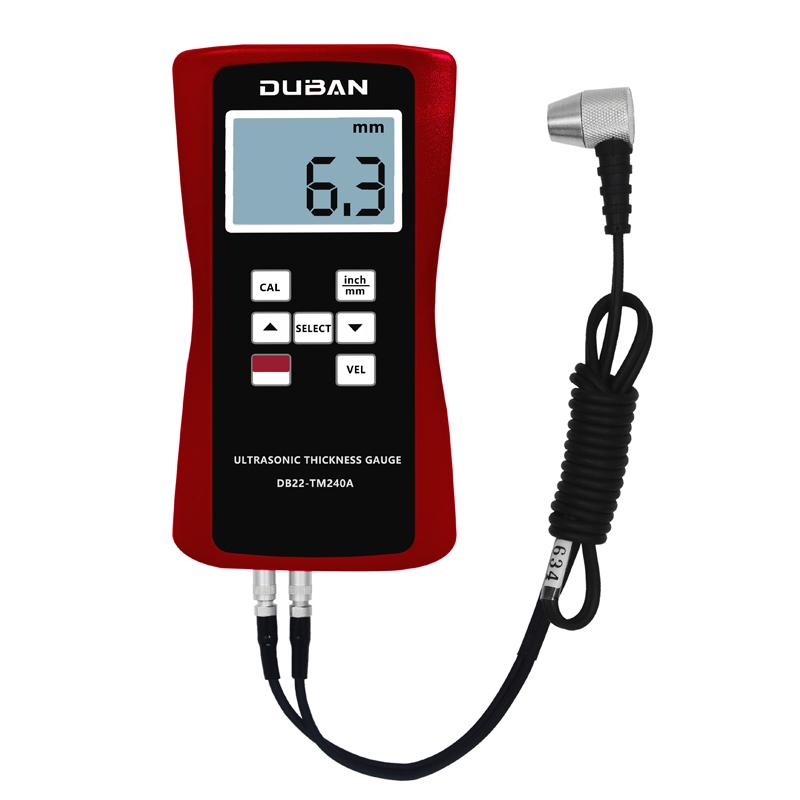

DUBAN DB22-TM240A Ultrasonic Thickness Gauge 200mm/0.1mm

DB22-TM240A

Ultrasonic Thickness Gauge

Measurement range 1.2~ 200mm, ultrasonic sensor 5MHz φ 8, Measurement accuracy 0.5% H + 0.1 (H is the thickness of the measured material), Speed of sound measurement 500~9000 m/s.

Product Applications

Ultrasonic Thickness Gauge DB22-TM240 is divided into two models: type A (resolution 0.1; test range 1.2~200), type B (resolution 0.01; test range 1.2~300,); Using the latest high-performance, low-power microprocessing technology, based on the ultrasonic measurement principle, it is possible to measure the thickness of metals and many other materials, and the sound velocity of materials can be measured. Thickness measurement can be carried out on various pipes and pressure vessels in production equipment, monitoring the degree of thinning after corrosion during use, as well as accurate measurement of various plates and various machined parts. It can test the thickness of any hard material, aluminum, copper, brass, zinc, polyethylene, polyvinyl chloride, gray cast iron, and any other ultrasonic good conductor. Such as rigid, cast steel, glass, ceramics, plastics.

Features

• Automatic memory of material code and sound velocity value, easy to use; And it has functions such as coupling status prompt, automatic shutdown and manual shutdown.

• "USB data line output" and "RS-232 data line output" are used to collect data with PC; There is also a "Bluetooth™ Bluetooth Data Output" option.

Packing list：Host X1, coupling agent X1, measurement Sensors X1, portable case X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
