DUBAN DB22-TM240T3 Penetrating coating Ultrasonic Thickness Gauge

SE
Two thickness measurement modes, single point mode and scan mode, display LCD with backlight, range echo echo mode: 3mm~ 30mm pulse echo mode: 1.00mm~ 300mm (steel), resolution 0.1mm/0.01mm/0.001inch, Measurement accuracy +/- (0.5% n + 0.05mm).
$426.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT OI

Duban DB22-TM240T3 Penetration coating Ultrasonic Thickness GaugeSPEC

Duban DB22-TM240T3 Penetration coating Ultrasonic Thickness GaugeDetails

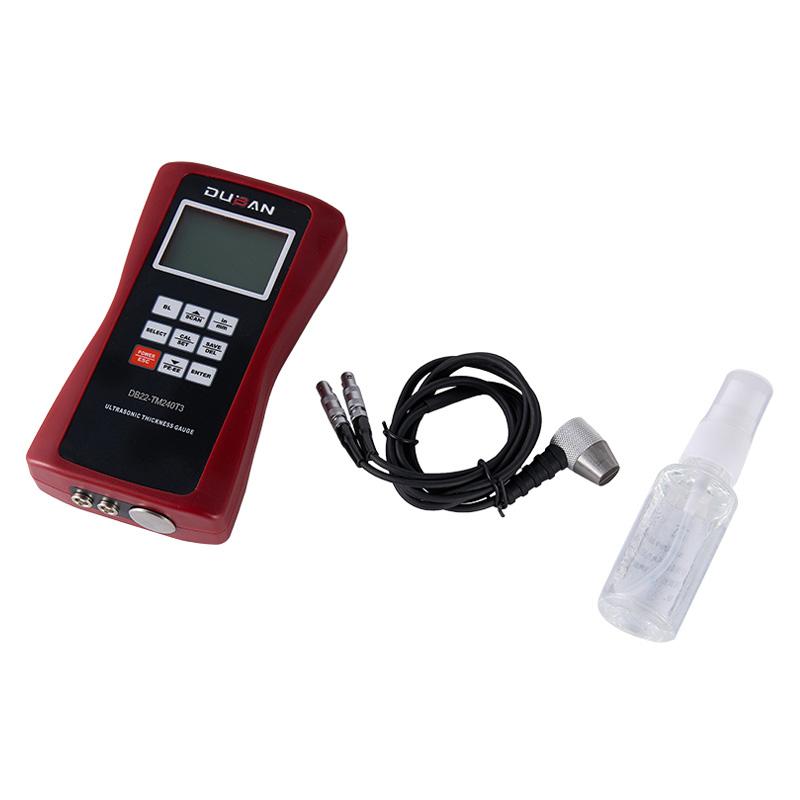

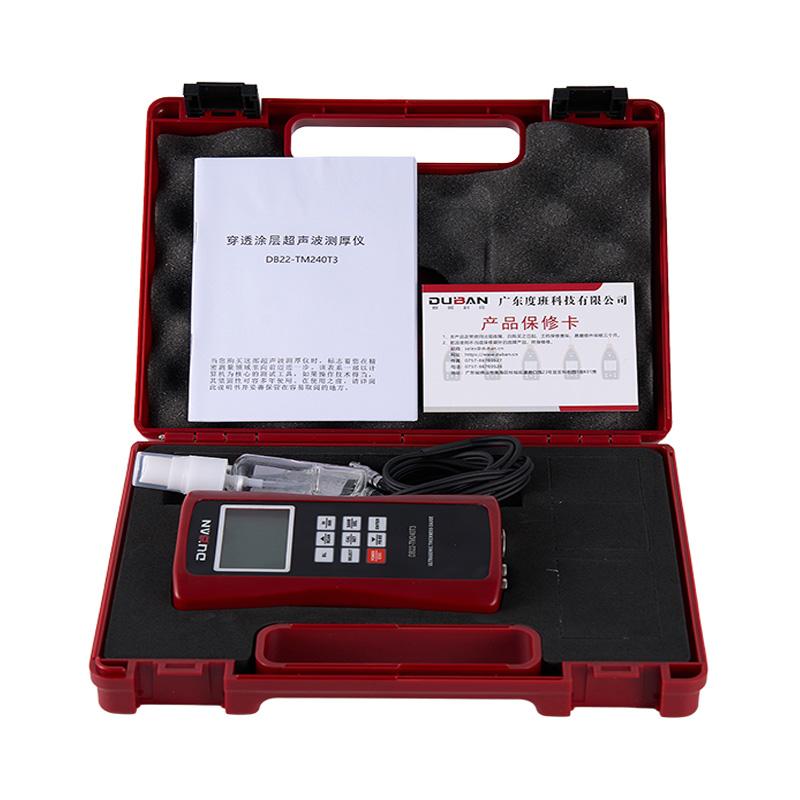

Duban DB22-TM240T3 Penetration coating Ultrasonic Thickness GaugePacking list

SKU
NB044193
Operating Mode
Two Operating Modes of thickness measurement, single point mode and scan mode
monitor
LCD with backlight
scope
Echo mode: 3mm~ 30mm Pulse echo mode: 1.00mm~ 300mm (steel)
resolution
0.1mm/0.01mm/0.001inch
Measurement Accuracy
+/- (0.5% n + 0.05mm), depending on material and conditions
Measurement period
Single point mode 4 times per second, scan mode 10 times per second
Speed of sound measurement
1000M/s~ 9999 m/s can store up to 20 files (up to 99 values per file)
unit system
Metric or imperial (optional)
Operating temperature
0°C~40°C
Relative Humidity
<85%RH
Power Supply
4 AA batteries
size
140mmx77mmx32mm
DB22-TM240T3
Penetration coating Ultrasonic Thickness Gauge
Two thickness measurement modes, single point mode and scan mode, display LCD with backlight, range echo echo mode: 3mm~ 30mm pulse echo mode: 1.00mm~ 300mm (steel), resolution 0.1mm/0.01mm/0.001inch, Measurement accuracy +/- (0.5% n + 0.05mm).

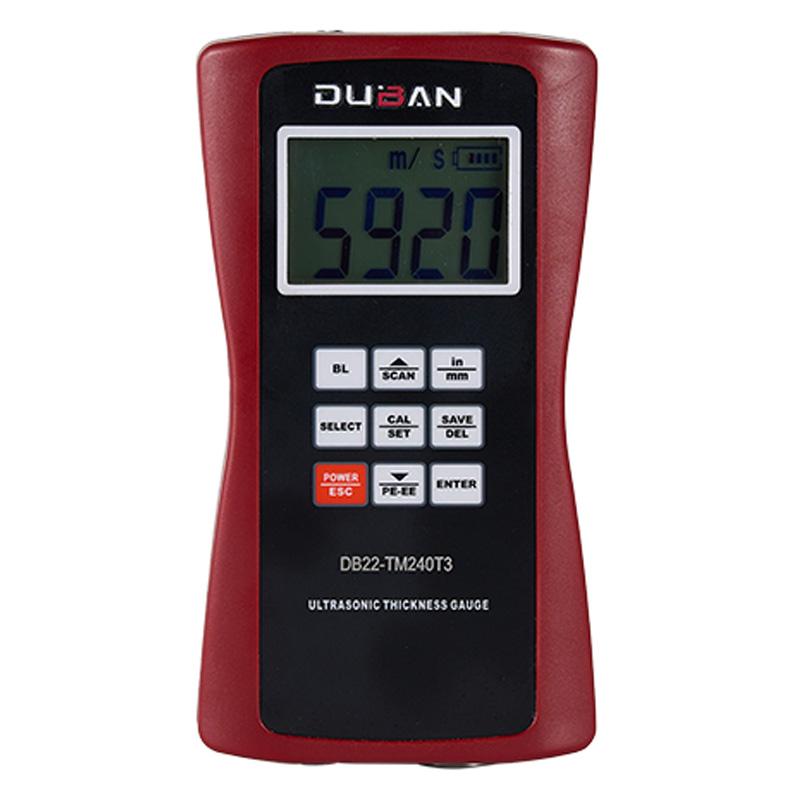

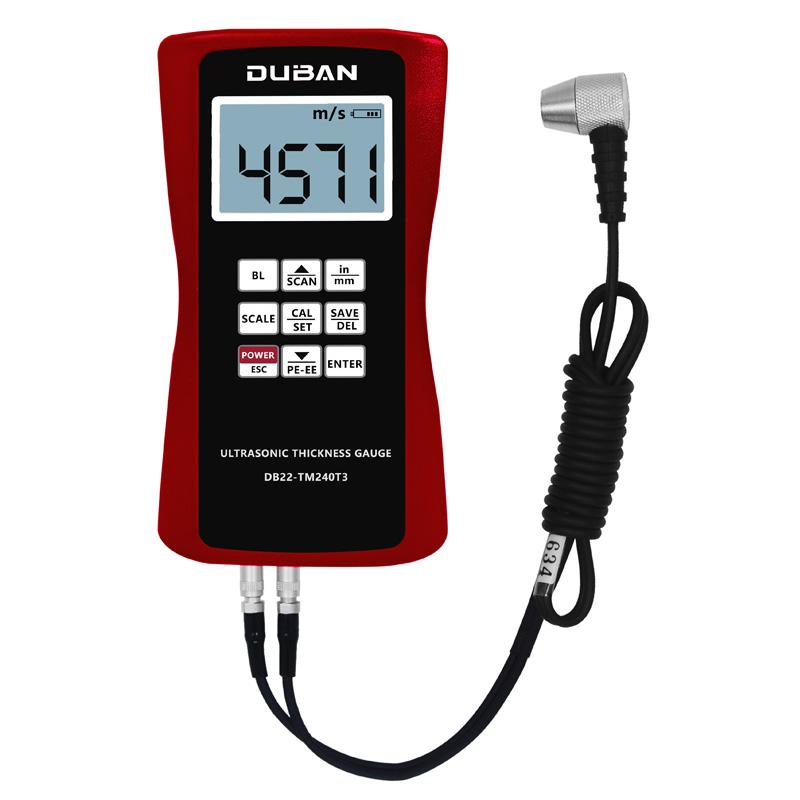

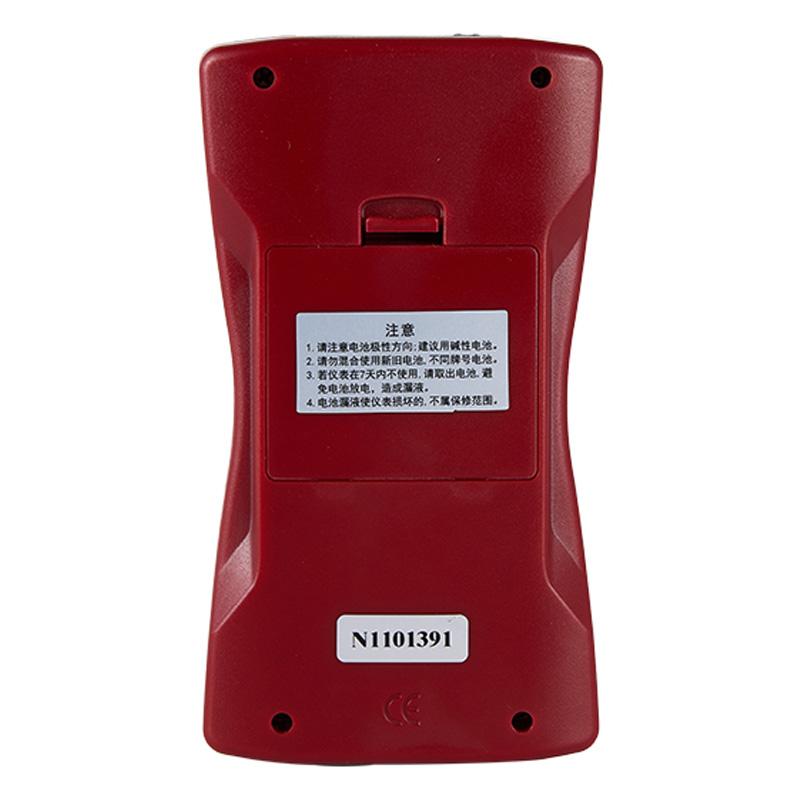

DUBAN DB22-TM240T3 Penetrating coating Ultrasonic Thickness Gauge Picture

Product Applications

This instrument is suitable for thickness measurement and corrosion measurement of boilers, oil storage tanks, pipes, pipes, slabs, forgings, flanges, hulls, decks, rails, machined parts, etc. in petrochemical industry, shipbuilding industry, automobile manufacturing industry, power station and machine manufacturing industry. For most of the materials that can propagate ultrasonic waves, this instrument can be used to measure the thickness, such as: metal, ceramic, plastic, nylon, glass, etc.

Features

  • Multiple modes: pulse-echo mode (for flaw detection and pit detection) and echo echo mode (for eliminating paint or coating thickness measurements).

  • It has strong transmitting power and high broadband receiving sensitivity. The probe can adapt to different frequencies, so it can be used for severely corroded rough surfaces and lacquers in almost all industrial sectors.

  • It has the function of coupling status prompt; Automatic shutdown and manual shutdown functions.

  • USB cable output for data acquisition with PC.

  • Bluetooth data output is also available.
