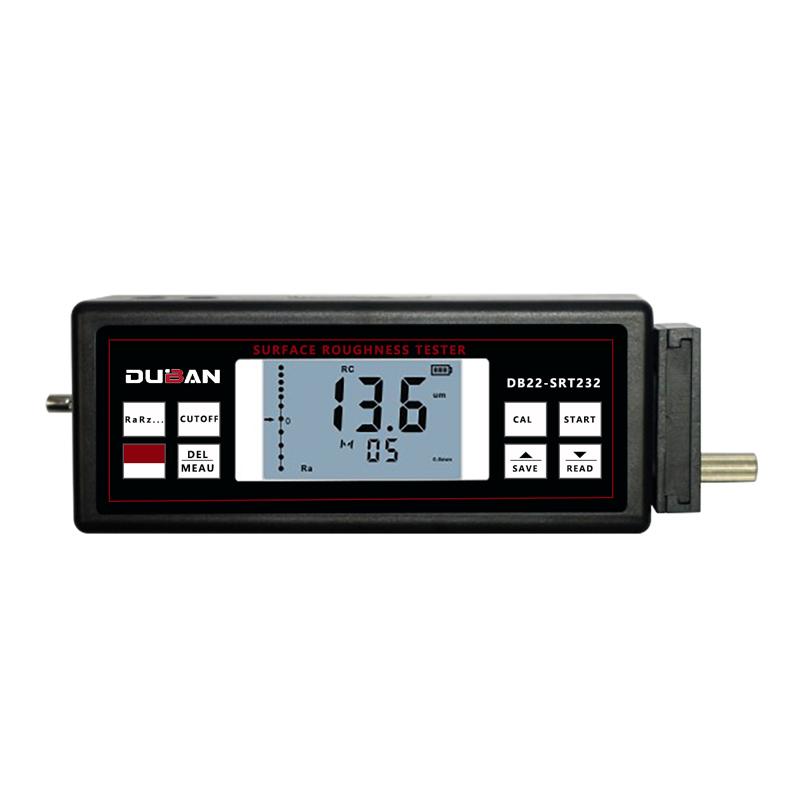

DUBAN DB22-SRT232 Surface Roughness Tester

DB22-SRT232

Surface roughness meter

Execution standard GB/T6062,1S04287, DIN4768, JIS B, ANS146.1, Measurement parameter Ra, Rz, Measurement range Ra; 0.05~ 10.00μm /1.000~400.OμinchRz: 0.020~100.0μm /0.780~4000μinch, Accuracy ≤ +/- 10%, widely used in production site measurement.

Product Applications

It can be widely used in the production site, and can measure the surface roughness of a variety of machined parts, calculate the corresponding parameters according to the selected measurement conditions, and clearly display all the measurement parameters on the LCD display.

Features

• It conforms to the national standard GB/T6062 and ISO, DIN, ANSI and JIS standards.

• Mechatronics design, small size, light weight, easy to use.

• All use high-precision inductive sensors.

• DB22-SRT234 can measure Ra, Rz, Rq, Rt; It has four filtering modes: RC, PC-RC, GAUSS, D-P; It can memorize 7 sets of measurement data.

• DB22-SRT232 can measure Ra, Rz.

• It has a built-in lithium-ion rechargeable battery and a charge control circuit, and has a high capacity.

• With automatic shutdown function; It has the function of converting the metric to the imperial system.

• It can be equipped with deep groove, curved surface sensor, extension rod, and measuring bench.

• USB cable output to communicate with PC;

  Bluetooth Bluetooth data output options are available.

Packing list：Portable box X1, host X1, standard Sensors X1, standard sample X1, instruction manual X1, screw driver X1, adjustable bracket X1, Sensors protective cover X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
