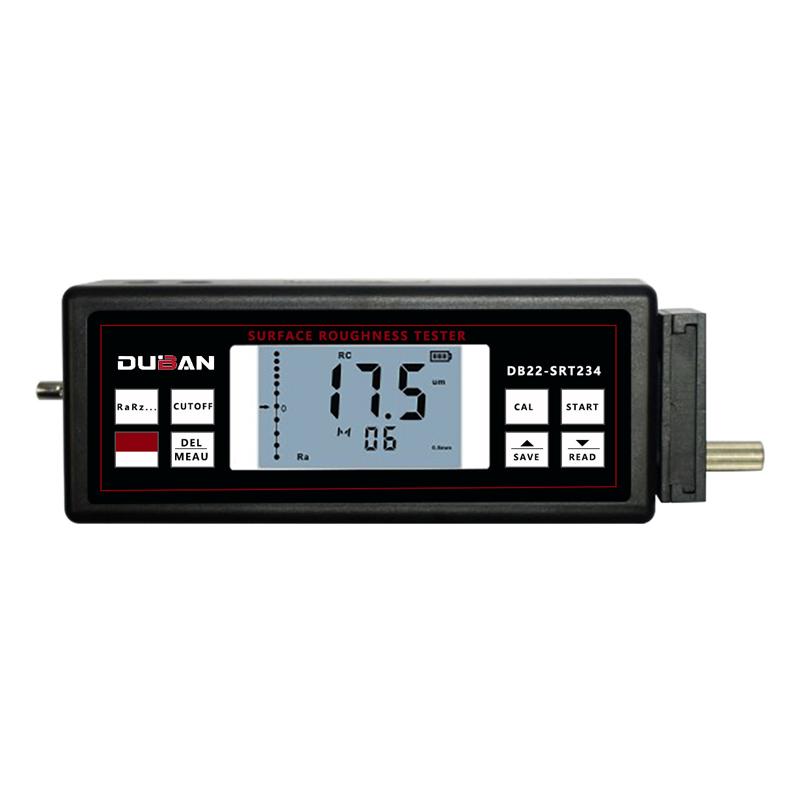

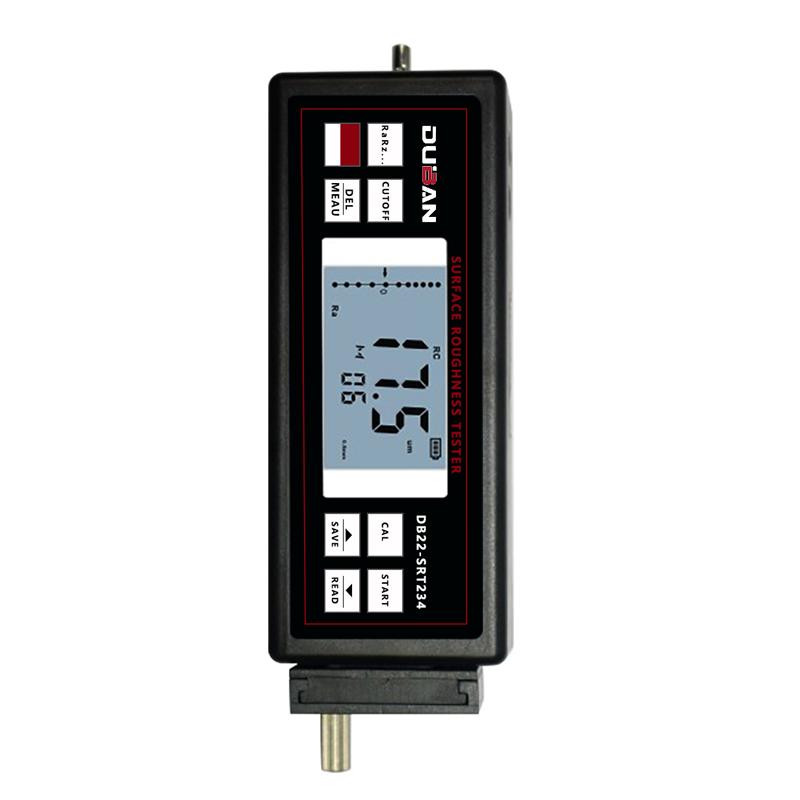

DUBAN DB22-SRT234 Surface Roughness Tester

DB22-SRT234

Surface roughness meter

Measurement parameters Ra, Rq, Rz, Rt, Measurement range Ra, Rq: 0.005~ 16.00μm/0.020~629.9μinchRz, Rt: 0.020~160.0μm/0.078~ 6299μinch, Accuracy ≤ +/- 10%, mechatronics design, small size, light weight, easy to use.

Product Applications

It can be widely used in the production site, and can measure the surface roughness of a variety of machined parts, calculate the corresponding parameters according to the selected measurement conditions, and clearly display all the measurement parameters on the LCD display.

Features

• It conforms to the national standard GB/T6062 and ISO, DIN, ANSI and JIS standards.

• Mechatronics design, small size, light weight, easy to use.

• All use high-precision inductive sensors.

• DB22-SRT234 can measure Ra, Rz, Rq, Rt; It has four filtering modes: RC, PC-RC, GAUSS, D-P; It can memorize 7 sets of measurement data.

• DB22-SRT232 can measure Ra, Rz.

• It has a built-in lithium-ion rechargeable battery and a charge control circuit, and has a high capacity.

• With automatic shutdown function; It has the function of converting the metric to the imperial system.

• It can be equipped with deep groove, curved surface sensor, extension rod, and measuring bench.

• USB cable output to communicate with PC;Bluetooth Bluetooth data output options are available.

Packing list：Host X1, standard Sensors X1, standard sample X1, small screw driver X1, portable case X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
