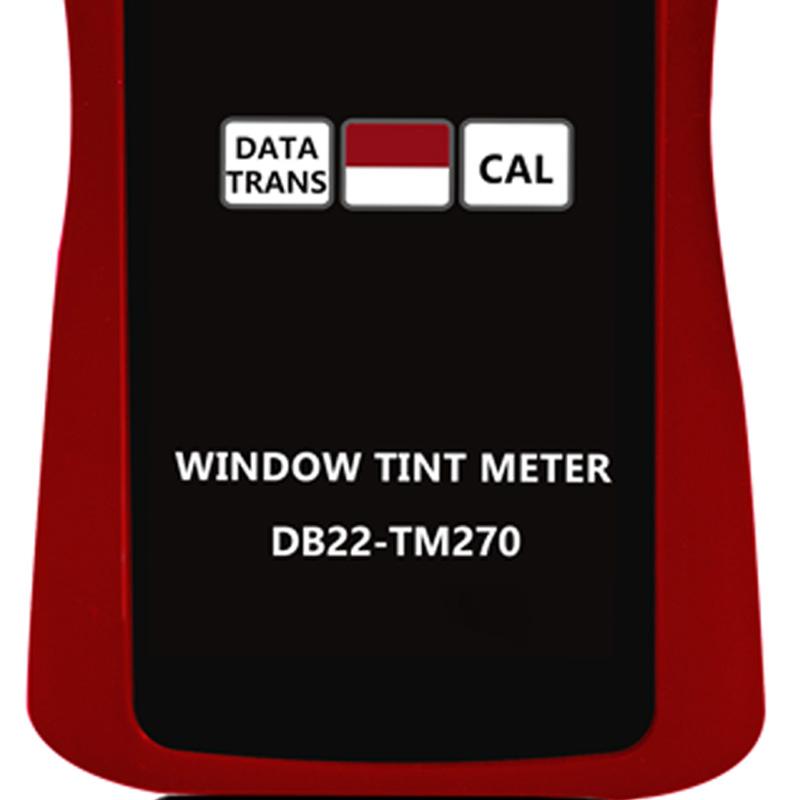

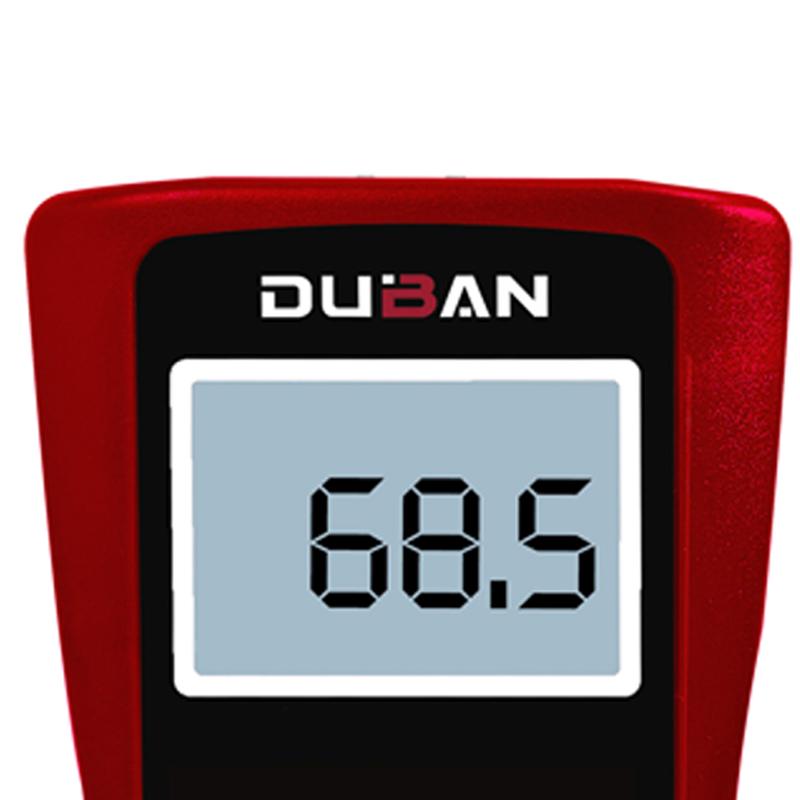

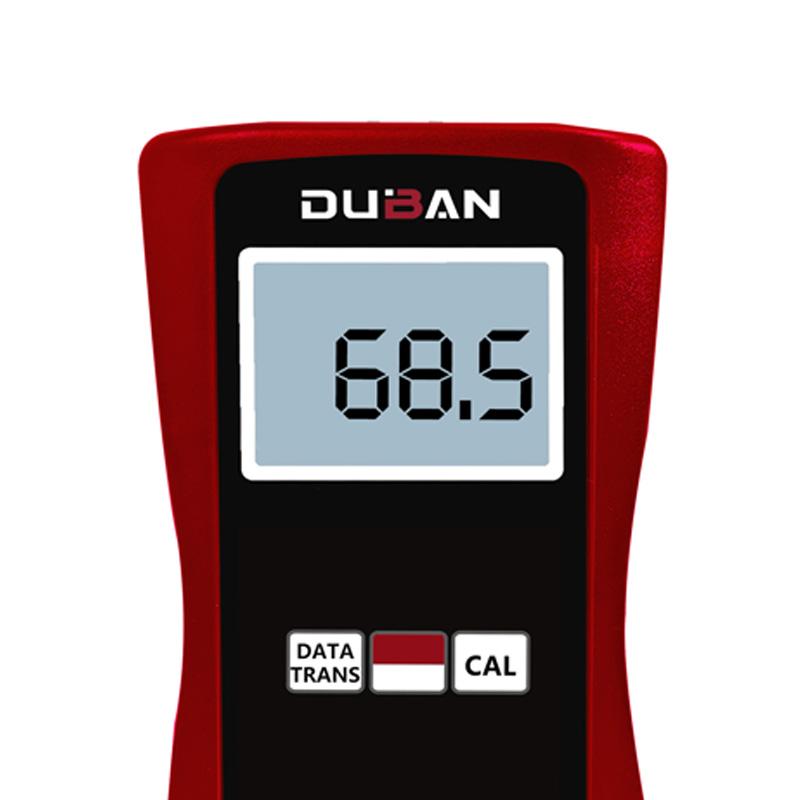

DUBAN DB22-TM270 Integrated Transmittance meter

Measurement range 0~100%, resolution 0.1, Accuracy +/- 2%, Light source LED Light source, the thickness of the measured object is less than 10mm, operating conditions temperature 0~50 ℃, power supply 4X1.5v AAA 7 #battery, set portability, accuracy and ease of use in one, is a reliable choice for the measurement of transparent and translucent material light transmitance, widely used in many industries.

$271.00/set

PromotionLoading...

Coupon

Model：

DB22-TM270

Certificate

Duban

Contact

Details SPEC Con OI

Duban DB22-TM270 Transmittance meterSPEC

Duban DB22-TM270 Transmittance meterDetails

Duban DB22-TM270 Transmittance meterPacking list

SKU: NB044199

Measurement range: 0~100%

resolution: 0.1

Accuracy: ±2%

Light source: LED Light source

Thickness of the measured object: Less than 10mm

operating conditions: Temperature 0~50 ℃

Power Supply: 4X1.5v AAA 7 #battery

size: Host: 184x76x32 mm; Sensors: 125x38x38 mm

Weight: 160 g (without battery)

DB22-TM270

Transmittance meter

Introduction

The DB22-TM270 Integral Transmittance Meter is a portable measuring instrument that is battery-powered. Its working principle is based on the relationship between the transmitted and incident luminous fluxes of transparent or translucent objects. This design allows the instrument to comply with several international standards, including GB 2410-80, ASTM D1033-61, and JIS k7105-81. It is suitable for measuring the light transmittance of various transparent and translucent flat samples. The instrument is used in a wide range of industries, including automotive, aerospace, glassware, and plastic sheets and sheets. In addition, it is suitable for determining the turbidity or clarity of liquid samples such as water and beverages.

Features

Digital display, the instrument is equipped with a digital display with a wide measurement range and high resolution, which is able to provide precise measurement results.
Rugged and durable, the structural design is rugged, refined, and portable, making it ideal for field measurements and mobile testing needs.
One-key calibration, the instrument supports one-key calibration function, which makes the operation easy, and users can quickly complete the calibration process and save time.
Data output, via USB cable, can be used to output the measurement data to a PC for further analysis and storage. In addition, the instrument offers a Bluetooth data output option for wireless data transfer.

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.

Standard
