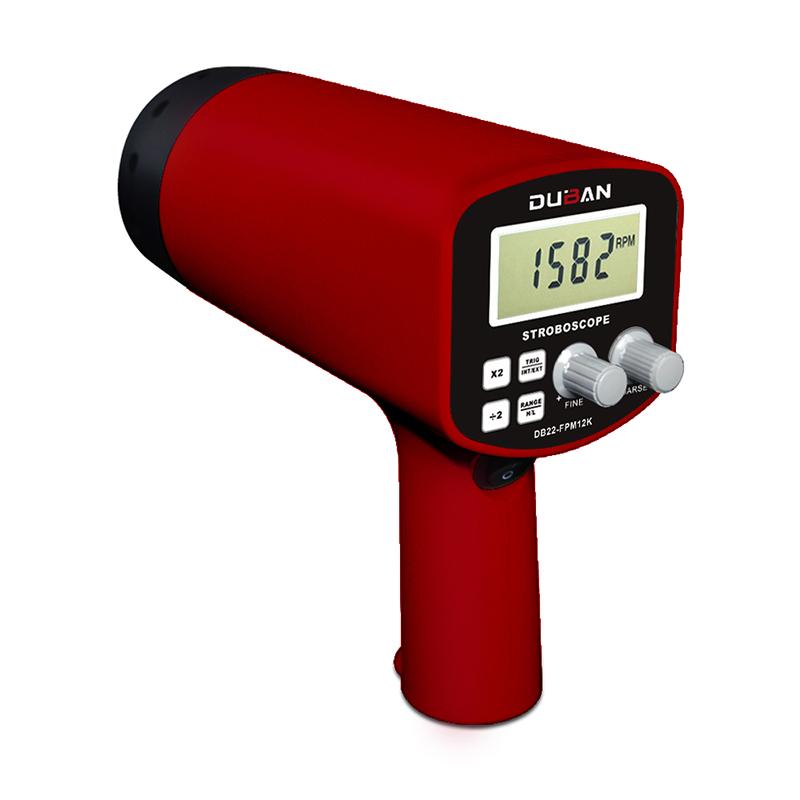

DUBAN DB22-FPM12K Stroboscope 50-12000FPM

Measurement range 50~12000 FPM, Measurement accuracy +/- ( 0.05% + 1nd), Sampling time 0.3 s, Fast FM × 2, ÷ 2, Internal/External trigger free conversion, Lamp life 100 million times, Power supply AC220/AC110 +/- 10% v

$273.00/set

PromotionLoading...

Coupon

Model：

DB22-FPM12K

Certificate

Duban

Contact

Details SPEC Con CAT OI

Duban DB22-FPM12K StroboscopeSPEC

Duban DB22-FPM12K StroboscopeDetails

Duban DB22-FPM12K StroboscopePacking list

SKU: NB044211

monitor: 5-Position 10mm LCD display

Resolution: 0.1FPM (below 1000 FPM); 1FPM (above 1000 FPM)

Measurement range: 50~12000 FPM

Measurement Accuracy: ±( 0.05%+1nd )

Sampling time: 0.3 s

Fast FM: ×2，÷2

internal/external trigger: Free conversion

Lamp life: 100 million times

Power: AC220/AC110±10%v,2A,50Hz

size: 210x85x185 mm

Weight: 660g

DB22-FPM12K

Stroboscope

Applications

The stroboscope is used to detect the rotation speed and movement frequency of the object (for example: motor). The stroboscope can also be used to analyze the vibration of the object, the movement of high-speed moving objects, and high-speed photography.

Features

Digital display, no parallax; wide measuring range, high resolution.
Functions such as automatic flash stop save electricity and increase the service life of the strobe light.
Quick conversion of internal trigger/external trigger selection; double frequency and half frequency fast frequency modulation function.
When working in external trigger mode (using photoelectric signals), the automatic tracking function of the pattern can be realized.
Using many advanced technologies such as microcomputer technology, flash technology and anti-interference technology, the speed value can be accurately measured without contact.
