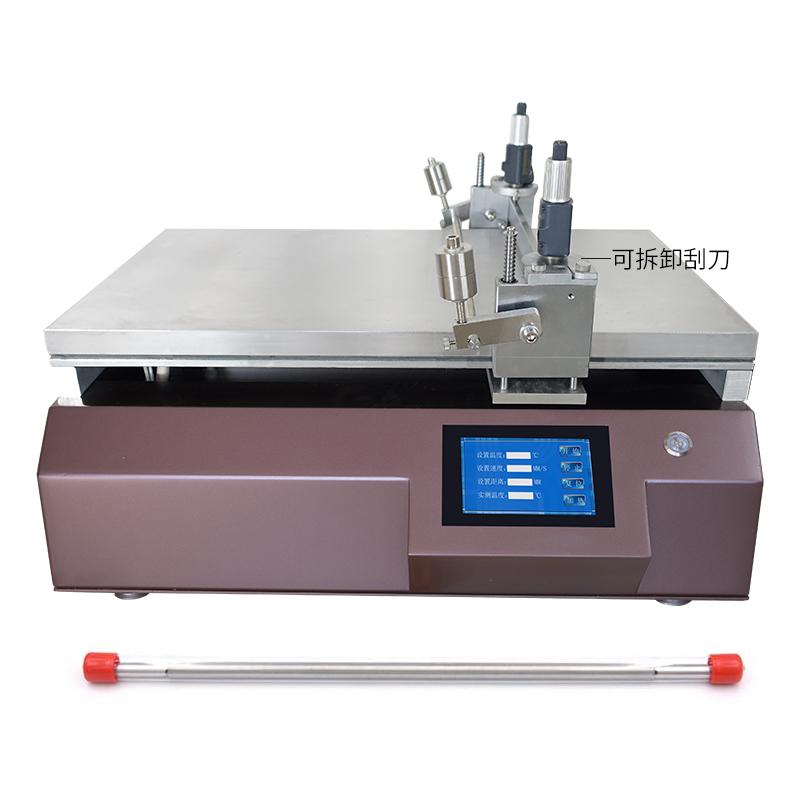

China Drawdown blade bar Heating Vacuum chuck Film Applicator TBJ-X3-DJ11
SEVacuum chuck, heating, bar, removable Drawdown blade integrated, convenient Drawdown blade disassembly, cleaning, replacement, with bracket Drawdown blade makes Spreader run more stable, film more uniform, standard high-precision imported bar, application width 30cm
$4423.00/set
PromotionLoading...
Coupon
Model：
TBJ-X3-DJ11
zy
Manufacturer authorization
Similar products
-
TM3300 Wire bar & Drawdown Blade Laboratory Film Applicator with Heated Vacuum Table$ 4734.00SE -
HUINUO TM3300pro High-precision Automatic Film Applicator with Drawdown Blade and Rod Applicator, Plus Heated Vacuum Table$ 5667.00SE -
HUINUO TM3300pro+ High-precision Rod & Drawdown Blade coater with Heated Vacuum Table$ 6133.00SE -
CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C$ 4423.00SE -
China Intelligent Program Control Film Applicator TBJ-X3-DJ19 bar + Drawdown blade + Heating + Vacuum chuck type$ 7222.00SE
zy TBJ-X3-DJ11 Automatic Film ApplicatorSPEC
zy TBJ-X3-DJ11 Automatic Film ApplicatorDetails
zy TBJ-X3-DJ11 Automatic Film ApplicatorPacking list
- SKU
- NB044217
- Drawdown blade Accuracy
- ±0.003mm
- Spreader Film thickness range
- 0~10Mm drawdown blade can be lifted
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Coating size
- 300*400mm
- Spreader speed
- Digital display, different speeds
- Vacuum Area
- 300 * 400Mm (can be customized)
- vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Rod Width
- 300mm
- Rod Film thickness range
- 0~150μm (Spreader Film thickness according to bar type)
- Mayer Rod Accuracy
- ±0.001mm
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- Heating temperature range
- RT+~180℃
- Temperature Uniformity
- ±3℃
- power
- 1500W
- Vacuumpump size
- 380*180*280mm
- optional accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven film thickness of Spreader substrate), film width control baffle
- customizable function
- Jet system device, UV solid inclusion device, automatic inking system
- Drawdown blade type
- Removable drawdown blade, easy to clean and replace
- Host Power Supply
- 220V 50Hz
- Dimensions
- 630*410*520mm
- Weight
- Net Weight 65KG
TBJ-X3-DJ11
Automatic Film Applicator
Vacuum chuck, heating, bar, removable Drawdown blade integrated, convenient Drawdown blade disassembly, cleaning, replacement, with bracket Drawdown blade makes Spreader run more stable, film more uniform, standard high-precision imported bar, application width 30cm
Overview
The coating machine adopts all imported accessories and is affordable, which has been favored by many multinational enterprise research and development institutions, as well as many well-known universities and research institutions at home and abroad. By controlling the speed and stable pressure, the coating effect is ensured, ensuring the uniformity and smoothness of the coating.
Due to the main factors affecting the coating film, such as the coating speed and the pressure applied to the applicator, inconsistencies often occur in manually applied coatings, especially the differences between different individuals, which makes it difficult to compare the test results between samples. Our company's automatic coating machine is carefully designed to enable operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of the coating.
The TBJ-X3-DJ11 detachable scraper wire rod heating vacuum adsorption coating machine adopts a detachable scraper, which is convenient for scraper disassembly, cleaning, and replacement. The scraper with a bracket makes the coating operation more stable and the coating film more uniform.
Optional
|
|
|
FAQ
QOn the floor film laminating, wood substrate, and not flat, with curvature, wood board size 14 * 30 cm * thickness 30mm, with PVC film on top, coated with hot-melt adhesive on the board, and then composite, can use what film scheme?
A
You can use the Film Applicator to apply hot-melt adhesive on the PVC film first, and then stick the wooden board on it. It is recommended that the metering rod & doctor blade heat vacuum adsorption four-in-one Automatic Film Applicator.
QFat coated livering film
To heat, vacuum adsorption
A
With four in one function, metering rod & doctor blade heating vacuum adsorption
QThere are water and hot melt type, hot melt type to 160 ℃, the substrate is coated paper, film type,
Film thickness 20μm, viscosity is uncertain, can be adjusted, which Film Applicator?
A
Metering rod & doctor blade heating vacuum adsorption 4-in-1 Film Applicator can meet the needs.
QHello, we are a drug research and development company. We want to make mouth-soluble films and buy a Film Applicator. Can your equipment do it? Is there any recommendation? The substrate is a release film, which needs heating and drying function.
A
Four-in-one multi-functional coater for oral dissolving film, wire rod + doctor blade + heating + vacuum adsorption integrated
QRequired with adsorption function, can ensure that the substrate of about 30μm flat; heating function, below 100 ℃ is enough; doctor blade type, thickness range can be adjusted within 0-100μm; overall adjustable level, recommend a Film Applicator
A
Heating Quad Film Applicator with metering rod & doctor blade vacuum adsorption can meet your needs.
QUsed to coat lithium batteries, need heating vacuum adsorption, recommend a suitable Film Applicator
A
Vacuum adsorption Film Applicator can be heated with doctor blade rod.
QI don't know the thickness of the mouth-soluble film, and the temperature needs to be set at about 50 ° C
Just cut it into small pieces, put it in your mouth, and the size of your fingernails is average.
My thickness is 10-100μm.
A
Recommended vacuum adsorption + heating + wire rod + doctor blade, four in one,
TBJ-X3-DJ11
QHigh viscosity liquid
Glass plate
Glass plate peeling film after soaking in water
Dry-Film 100μm
Countertops need heating
A
Can use four-in-one function, metering rod & doctor blade heating vacuum adsorption integrated coater
QVacuum coater required
slurry coating
Substrate: Aluminum foil Copper foil
Thickness: Uncertain
With heating
A
With four-in-one function, metering rod & doctor blade heating vacuum adsorption coater
QCopper foil substrate, thickness of about 0.3mm or thinner, carbon cloth base is also available, the sample is experimental self-made, just like ordinary slurry
A
Vacuum adsorption for aluminum foil
Carbon cloth base with fixing fixture
Removable doctor blade + fixed fixture + heating + vacuum adsorption + wire rod
