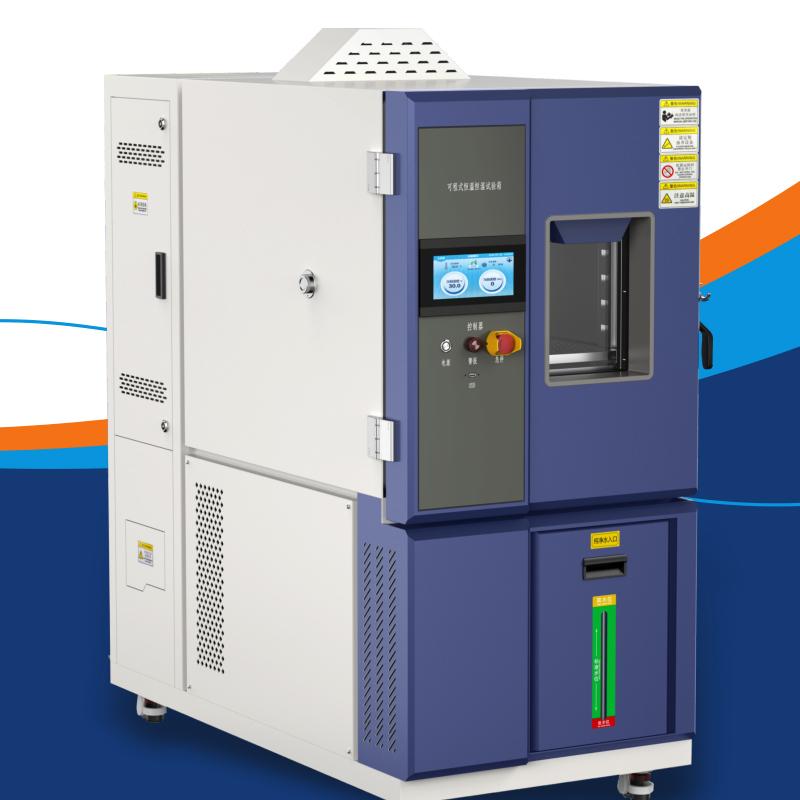

HUITAI GDT-1000AH High and low temperature alternating Climate Chamber with Humidity control 1000L/-20~ 150 ℃
SE
GDT-1000AH
HuiTai GDT-1000AH High and low temperature alternating climate chamberSPEC
HuiTai GDT-1000AH High and low temperature alternating climate chamberDetails
HuiTai GDT-1000AH High and low temperature alternating climate chamberPacking list
- SKU
- NB044263
- Temperature range
- -20~150℃
- Temperature Fluctuation
- ≤±0.5℃
- Temperature deviation
- ≤±2℃
- Temperature Uniformity
- ≤2℃
- Temperature Resolution
- 0.1℃
- Heating rate
- -40 ℃ → 100 ℃ 3~ 5 ℃/min (mechanical refrigeration, under standard load)
- Cooling rate
- + 25 ℃ → -40 ℃ 1~ 1.5 ℃/min (mechanical refrigeration, under standard load)
- Humidity range

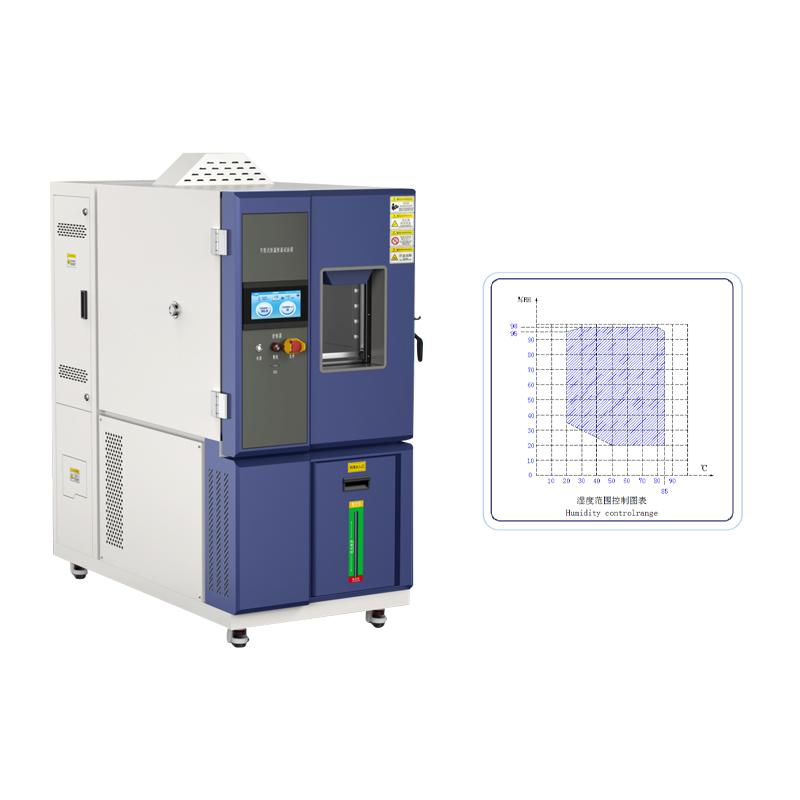

- 20% R. H~ 98% R. H (see Temperature Humidity Controllable Chart)
- Humidity Deviation
- ≤±3%R.H
- Humidity stability
- ±1.5%R.H
- Humidity resolution
- 0.1%R.H
- Standard load Capacity
- 1Kg aluminum sheet, 200W calorific value
- Interior Volume
- 1000L
- Voltage
- 380V/50A
- Power
- 12Kw
- Interior size
- 1000*1000*1000mm
- Dimensions
- 1200*1900*2100mm
Instrument interface
GDT series configuration
| temperature range | Aï¼-20~150 Bï¼-40~150℃ Cï¼-60~150℃ |
| Humidity range | 20%~98% Relative Humidity (model with H) |

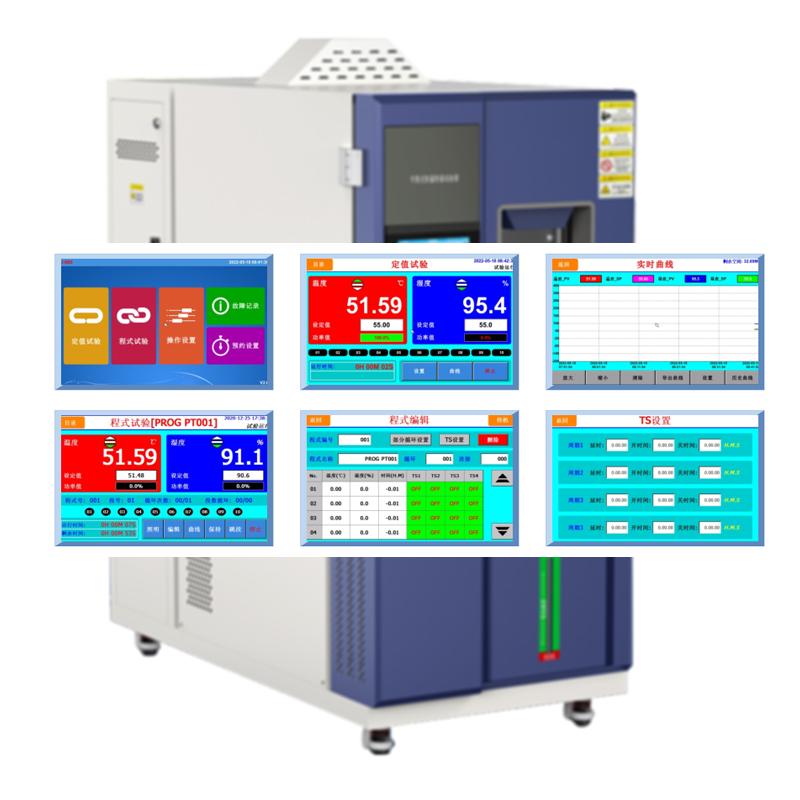

| Display instrument | 7-inch TFT color LCD display (can be connected to RMCS control software) |
| Operation mode | Fixed value mode, program mode (preset 100 groups, 100 steps, 999 cycles) |
| control method | BTC balance temperature control method + DCC (intelligent cooling capacity control) + DEC (intelligent electrical control) (temperature test equipment) BTHC balance temperature and humidity control method + DCC (intelligent cooling capacity control) + DEC (intelligent electrical control) ( Temperature and humidity testing equipment) |
| Curve recording function | It has battery-protected RAM that can save the deviceâs setting values, sampling values ââand sampling time; the maximum recording time is 350 days (when the sampling cycle is 1/min) |
| Software usage environment | The upper computer operating software is compatible with XP, Win7, Win8, and Win10 operating systems (provided by the user) |
| Communication function | Choose one of RS-485 interface MODBUS RTU communication protocol and Ethernet interface TCP/IP communication protocol; support secondary development and provide host computer operation software, RS-485 interface single device link, Ethernet interface can realize remote communication of multiple devices Online. |
| Way of working | A/B: Mechanical single-stage compression refrigeration system C: Two-stage cascade compressor refrigeration method |
| way of observation | Heated viewing window with LED internal lighting |
| Temperature and humidity sensing method | Temperature: Class A PT100 armored thermocouple Humidity: Class A PT100 armored thermocouple Dry and wet bulb thermometer method (works only in tests with humidity control) |
| safety protection | Fault alarm and cause, processing prompt function, power-off protection function, upper and lower limit temperature protection function, calendar timing function (automatic start and automatic stop running), self-diagnosis function |
| Verify configuration | Access hole with silicone plug (50 mm, 80mm, 100mm left) |
| Data interface | Ethernet + software, USB data export, 0-40MA signal output |
Implementation standards
GB/T5170.2-2008 Temperature test equipment
GB/2423.1-2008 (1EC60068-2-1:2007) Low temperature test method AB.
GB/2423.2-2008(1EC60068-2-2:2007) High temperature test method BA. GB/T5170.5-2008 Damp heat test equipment.
GJB150.3(MIL-STD-810D) High temperature test method.
GJB150.4(MIL-STD-810D) Low temperature test method.
GB2423.3-93 (IEC68-2-3) Test Ca: Constant damp heat test method.
GB2423.4-93(1EC68-2-30) Test Db: alternating damp heat test method.

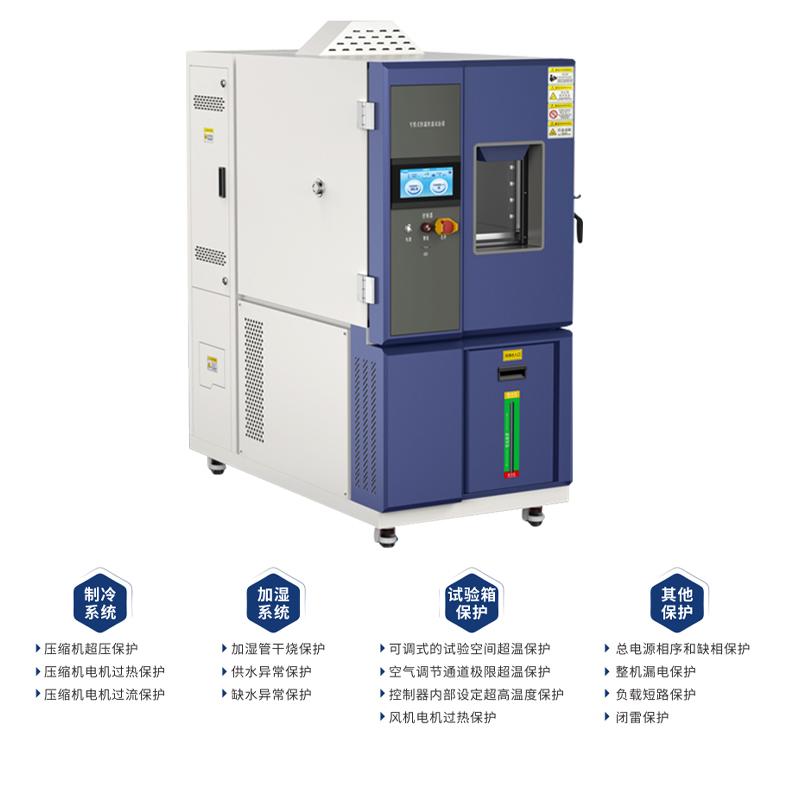

Equipment security protection
Cooling System
Compressor overpressure protection
Compressor motor overheat protection
Compressor motor overcurrent protection
humidification system
Humidification tube dry burning protection
Water supply abnormality protection
Water shortage abnormality protection
Test chamber protection
Adjustable test space over-temperature protection
Air conditioning channel extreme over-temperature protection
Ultra-high temperature protection is set inside the controller
Fan motor overheat protection
Other protection
Total power phase sequence and phase loss protection
Whole machine leakage protection
Load short circuit protection
Closed lightning protection
Refrigeration process
Refrigeration Compressors
French Taikang fully enclosed compressor
Way of working
A/B: Mechanical single-stage compression refrigeration system
C: Cascade compressor refrigeration method
Evaporator
High-efficiency components use slope-type evaporators (AC&R compound spoiler-type aluminum fins)
condenser
Adopt water cooling system to facilitate equipment movement, etc.
heat exchanger
Ultra-high efficiency SWEP plate type cold coal cold and heat exchange design is more efficient than the traditional internal spiral type
Installation process
1. Adopt nitrogen flushing welding process, use oxygen-free copper pipes for low-temperature connecting pipes, and use 48-hour high pressure-maintaining and anti-leakage process to ensure welding quality.
2. The pipeline installation adopts the bending process of pipe bending machine. Elbow welding is not allowed in the turning parts.
3. The low-temperature pipeline is equipped with shock-absorbing process pipes, and the refrigeration unit uses shock-absorbing springs and foot pads for shock absorption and noise reduction.
4. The filter dryer absorbs residual moisture, particles, impurities, and acidic substances in the refrigeration system.
5. The selection of solenoid valves is mainly based on brand. Necessary valve core cooling protection measures should be taken when welding solenoid valves to prevent damage or shortening of service life.
