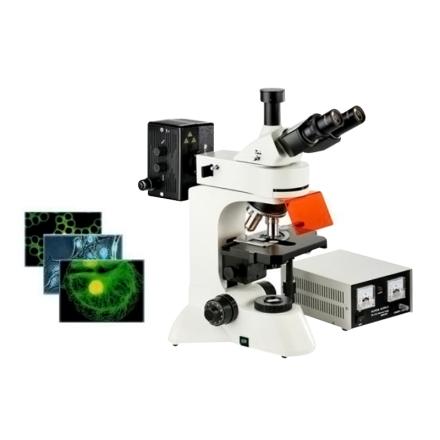

Specifications
| eyepiece | Large field of view WF10X (field number of viewing) |
| Total Magnification | 40X-1000X |
| Infinity flat-field color difference objective | PL 4X/0.10 working distance: 19.8 mm; PL 10X/0.25 working distance: 5.0 mmPL 40X/0.85 (spring) working distance: 0.42 mm (no magnification color difference); PL 100X/1.25 (spring, oil) working distance: 0.36mm |
| Infinity flat-field color difference fluorescence objective | PL20X 0.40 working distance: 8.0 mm; PL 40X/0.85 (spring) working distance: 0.42 mm (no magnification color difference) |
| Eyepiece tube | Three eyepieces, 30 ° tilt |
| Epofluorescence Lighting System - Power Box | 110V/230V optional |
| Epofluorescence Illumination System - Mercury Lamp | 100W/DC |
| epifluorescence illumination system | Turntable fluorescent epiphany illuminator (including ultraviolet, violet, blue, green light, excitation color filter group) |
| Ultraviolet (UV) excitation wavelength | 320-380Nm, transmission wavelength: 435nm |
| Purple (V) excitation wavelength | 380-415Nm, transmission wavelength: 475nm |
| Blue (B) excitation wavelength | 450-490, transmission wavelength: 515nm |
| Green (G) excitation wavelength | 495-555, transmission wavelength: 595nm |
| Focusing mechanism | Coarse fretting coaxial focusing, fretting grid value: 2μm, with locking and limit device |
| converter | Five holes (inward ball positioning) |
| stage | Double-decked mechanical mobile (size: 210mmX140mm, moving range: 75mmX50mm) |
| Transmission illumination system | Abbe condenser NA.1.25 can be lifted up and down; Blue filter and frosted Glass; collector, halogen lamp for lighting (built-in field of view light bar); 6V30W lamp, luminance adjustable |
Packing list
Electronic tension meter * 1, tension hook * 1, flat probe * 1, conical probe * 1, V-shaped groove probe * 1, V-shaped wedge probe * 1, extended connecting rod (double-headed screw * 1, double-headed nut * 1) Instruction manual * 1, portable case * 1
After-sales instructions
Warranty days: 730 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/44314/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
