CHINA DHG-9053AE Desktop Forced Air Drying Oven 850W/50L

SE
Temperature range Rt + 10~200 ℃, Interior size 420 × 350 × 350mm, horizontal, back heating type, horizontal forced convection to ensure uniform temperature of the studio.
$406.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con
Similar products

Factory DHG-9053AE Desktop Forced Air Drying OvenSPEC

Factory DHG-9053AE Desktop Forced Air Drying OvenDetails

Factory DHG-9053AE Desktop Forced Air Drying OvenPacking list

SKU
NB044377
Temperature range
Rt+10~200℃
Temperature Fluctuation
±1℃
Temperature Accuracy
0.1℃
Temperature alarm
SV + 5 ℃ (factory value)
Interior size
420×350×350mm
Chamber material
304 stainless steel plate
Shelf (std.)
2pcs
Shelves (max)
3pcs
Timer
Optional 0~9999 minutes or hour Timer
Convection mode
Forced circulation convection duct
Temperature transducer
High-Precision Platinum Resistance Sensors
monitor
Liquid crystal display, push-button, fuzzy PID control technology for microprocessor temperature control
Power
AC 220V±10%   50Hz±1Hz
Power Consumption
850W
Ambient Temperature
5~30℃
Relative Humidity
≤80%
Dimensions
710×520×520mm
Net Weight
50KG
Enclosure Material
08F Cold rolled steel plate
DHG-9053AE
Desktop Forced Air Drying Oven
Temperature range Rt + 10~200 ℃, Interior size 420 × 350 × 350mm, horizontal, back heating type, horizontal forced convection to ensure uniform temperature of the studio.

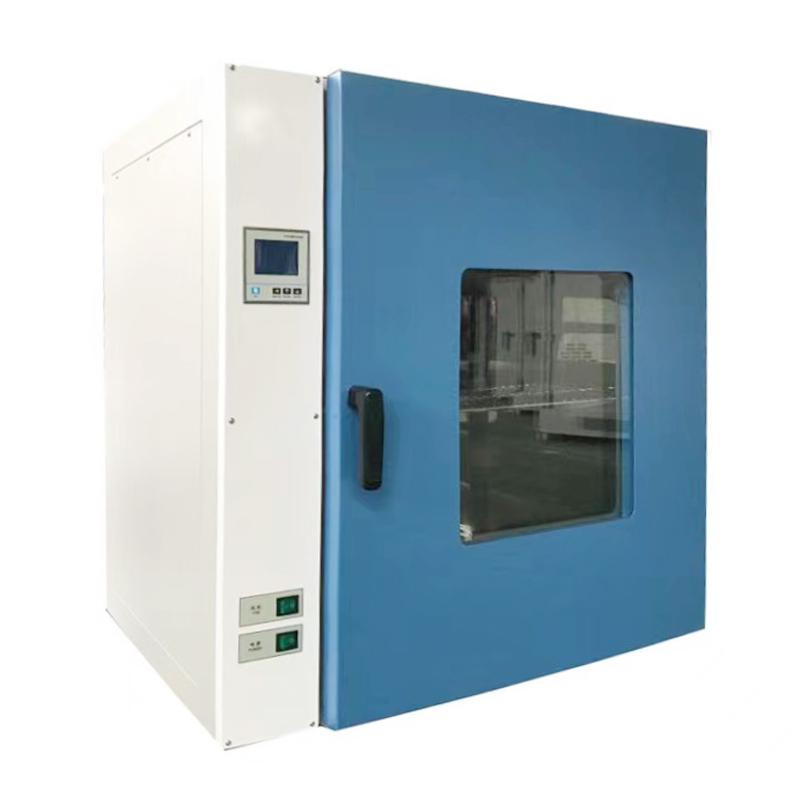

CHINA DHG-9053AE Desktop Forced Air Drying Oven 850W/50L Picture

Applications

It is used for drying, baking, wax melting, disinfection and sterilization of non-flammable and explosive items and non-volatile items for industrial and mining enterprises, colleges and universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories. use.

Features

1. Horizontal, back heating type, horizontal forced convection ensures uniform temperature in the studio;

2. The temperature control system uses high-performance CPU processing chips and high-sensitivity, high-precision platinum resistance sensors to make temperature control more precise and easier to operate;

3. It has sensor fault alarm, over-temperature alarm, self-diagnosis dynamic control, temperature display correction, parameter memory and timing functions up to 999 minutes.

Series model

modelDHG-9023ADHG-9053ADHG-9123ADHG-9203A
Operating ConditionsAmbient temperature 5～30℃
Relative Humidity ≤80%
Altitude ≤ 2000m
Power supply AC220V±10% 50Hz±1Hz
Way of workingLCD display, push-button type, microprocessor temperature control with fuzzy PID control technology
High precision platinum resistance sensor
Forced circulation convection duct
Optional 0~9999 minutes or hour timing
temperatureControl rangeRt+10～200℃
Accuracy0.1℃
Volatility±1℃
Call the policeSV+5℃(factory value)
Power consumption650W850W1500W2050W
Materialstudio304 stainless steel plate

shell08F cold rolled steel plate
Number of shelves (standard/optional)2/32/32/32/4
weightnet weight36KG50KG72.5KG91KG
sizestudio300×300× 275mm420×350× 350mm550×350×550 mm600×550× 600mm
shape580×470× 445mm710×520× 520mm830×530×720 mm880×740×790 mm


FAQ
QOur laboratory needs to dry some biological samples. The temperature should be uniform and stable. Do you recommend a suitable drying oven?
A DHG-9053AE desktop blast drying oven adopts back heating and horizontal forced convection technology to ensure uniform temperature in the studio, especially suitable for drying biological samples, the temperature is accurate to 0.1 ° C, and the fluctuation is only +/- 1 ° C to ensure sample safety.
QThe factory wants to sterilize some non-flammable items, which model is better?
A DHG-9053AE is very suitable, Temperature range from room temperature + 10 ℃ to 200 ℃, can be used for sterilizing, it has over-temperature alarm and timing function, maximum timing 9999 minutes, safe and convenient operation, suitable for daily use in factories.
