CHINA DHG-9123AE Desktop Forced Air Drying Oven 1500W/100L

SE
Temperature Control system with high-performance CPU processing chip and high-sensitivity and high-precision Platinum Resistance Sensors makes temperature control more precise.
$540.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

Factory DHG-9123AE Desktop Forced Air Drying OvenSPEC

Factory DHG-9123AE Desktop Forced Air Drying OvenDetails

Factory DHG-9123AE Desktop Forced Air Drying OvenPacking list

SKU
NB044378
Temperature range
Rt+10~200℃
Temperature Fluctuation
±1℃
Temperature Accuracy
0.1℃
Temperature alarm
SV + 5 ℃ (factory value)
Interior size
550×350×550mm
Chamber material
304 stainless steel plate
Shelf (std.)
2pcs
Shelves (max)
3pcs
Timer
Optional 0~9999 minutes or hour Timer
Convection mode
Forced circulation convection duct
Temperature transducer
High-Precision Platinum Resistance Sensors
monitor
Liquid crystal display, push-button, fuzzy PID control technology for microprocessor temperature control
Power
AC 220V±10%   50Hz±1Hz
Power Consumption
1500W
Ambient Temperature
5~30℃
Relative Humidity
≤80%
Dimensions
830×530×720mm
Net Weight
72.5KG
Enclosure Material
08F Cold rolled steel plate
DHG-9123AE
Desktop Forced Air Drying Oven
Temperature Control system with high-performance CPU processing chip and high-sensitivity and high-precision Platinum Resistance Sensors makes temperature control more precise.

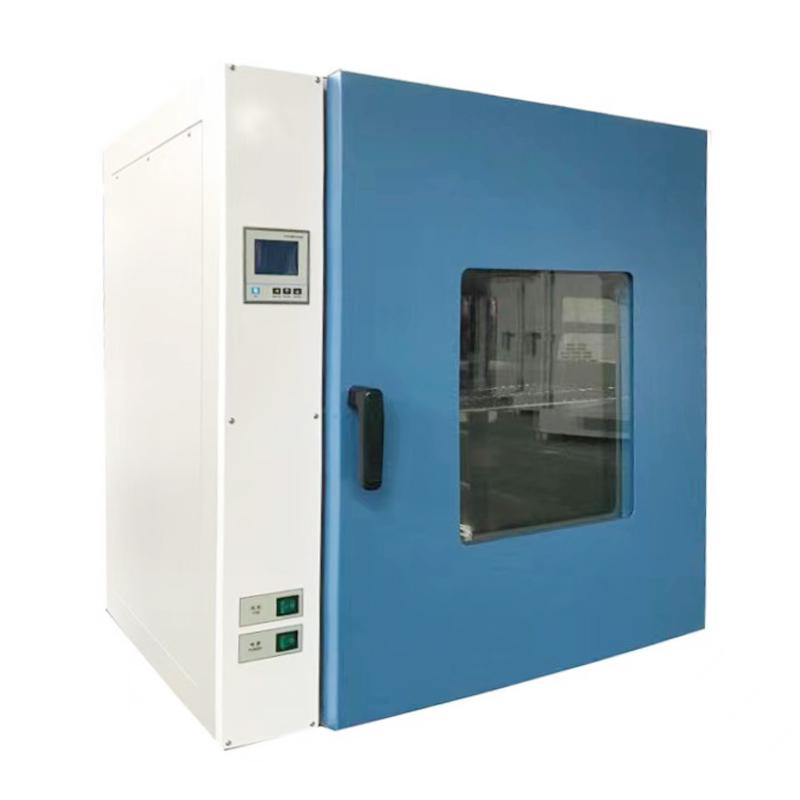

CHINA DHG-9123AE Desktop Forced Air Drying Oven 1500W/100L Picture

Applications

It is used for drying, baking, wax melting, disinfection and sterilization of non-flammable and explosive items and non-volatile items for industrial and mining enterprises, colleges and universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories. use.

Features

1. Horizontal, back heating type, horizontal forced convection ensures uniform temperature in the studio;

2. The temperature control system uses high-performance CPU processing chips and high-sensitivity, high-precision platinum resistance sensors to make temperature control more precise and easier to operate;

3. It has sensor fault alarm, over-temperature alarm, self-diagnosis dynamic control, temperature display correction, parameter memory and timing functions up to 999 minutes.

Series model

modelDHG-9023ADHG-9053ADHG-9123ADHG-9203A
Operating ConditionsAmbient temperature 5～30℃
Relative Humidity ≤80%
Altitude ≤ 2000m
Power supply AC220V±10% 50Hz±1Hz
Way of workingLCD display, push-button type, microprocessor temperature control with fuzzy PID control technology
High precision platinum resistance sensor
Forced circulation convection duct
Optional 0~9999 minutes or hour timing
temperatureControl rangeRt+10～200℃
Accuracy0.1℃
Volatility±1℃
Call the policeSV+5℃(factory value)
Power consumption650W850W1500W2050W
Materialstudio304 stainless steel plate

shell08F cold rolled steel plate
Number of shelves (standard/optional)2/32/32/32/4
weightnet weight36KG50KG72.5KG91KG
Dimensions (mm)studio300×300×275420×350×350550×350×550600×550×600
shape580×470×445710×520×520830×530×720880×740×790



FAQ
QWhat technology is used in the Temperature Control system?
A We use a high-performance CPU processing chip and fuzzy PID control technology microprocessor Temperature Control system, equipped with high-Sensitivity, high-precision Platinum Resistance Sensors. These technologies ensure the accuracy and Stability of temperature control, making operation more convenient and reliable.
QFor scientific research institutions, how does this drying oven support experimental needs?
A In the field of scientific research, this drying oven can be used for a variety of laboratory work, including rapid drying of samples, heating of reagents and sterilization of laboratory equipment. Its timing function and temperature Control system make the experimental process more accurate and efficient.
QWhat is the noise level of this drying oven during operation?
A The forced circulation convection air duct is used in the design to make the flow in the air duct more stable, thereby reducing noise generation. The noise level during operation is low and will not disturb the surrounding environment or laboratory staff.
