MODERNER Frame Type 100/200/300/400 Small Frame Type 4-sided Applicator Groove Width 58mm

Frame type 100/200/300/400 (groove width 58mm)

Small Frame Applicator

Overview of the Frame Four-Side Preparator

MODERNERal frame-type four-sided Applicator, model frame type 100/200/300/400, coating film width is 58mm, four coating film surfaces with different film thickness, coating film thickness is 100/200/300/400 microns. Made of stainless steel, it has good corrosion resistance and does not rust.

Parameter comparison

Advantages of use

Frame type 1 00/200/300/400 small frame four-sided Applicator is used to coat wet films of specified thickness to measure the covering power and color of the sample or prepare samples, etc. It is suitable for the coating and ink industry.

product operations

1) Place the sample on the platform and fix it, ensuring that the frame type 1 00/200/300/400 small frame four-sided Applicator cannot move when it slides over.

2) According to the experimental requirements, select a small Frame Applicator with appropriate wet film thickness and place it on the short side of the sample, close to parallel or at a specified position.

3) In framePour about 5 ml of sample into the front of the 100/200/300/400 small frame four-sided Applicator .

4) Press both ends of the preparer with your fingers and slide it at a constant speed of 150 ml/second to obtain a wet film of the required thickness.

5) After use, the preparer should be cleaned immediately with a suitable solvent and coated with oil or petroleum jelly.

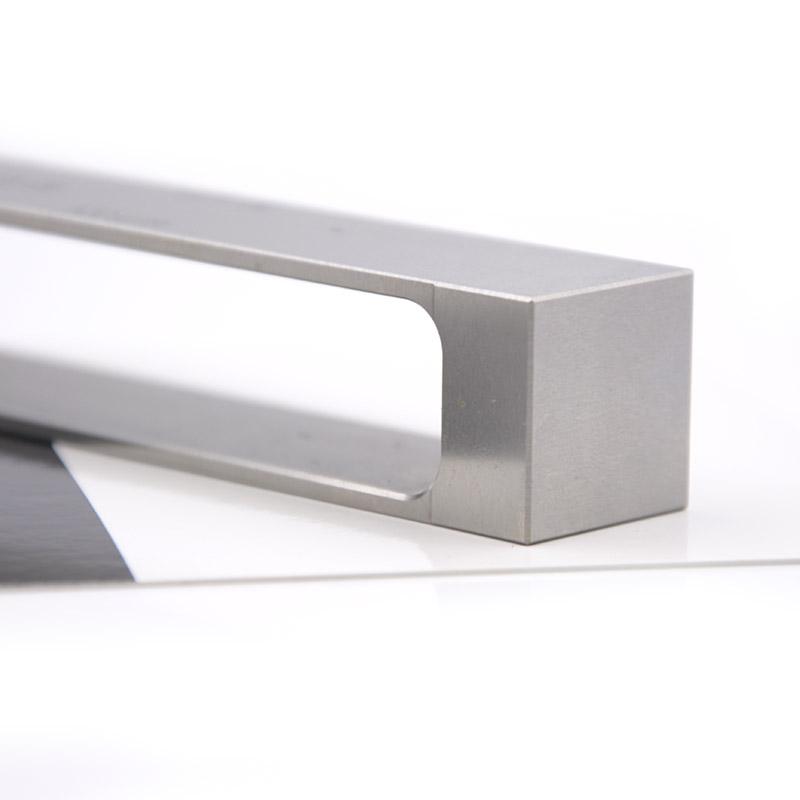

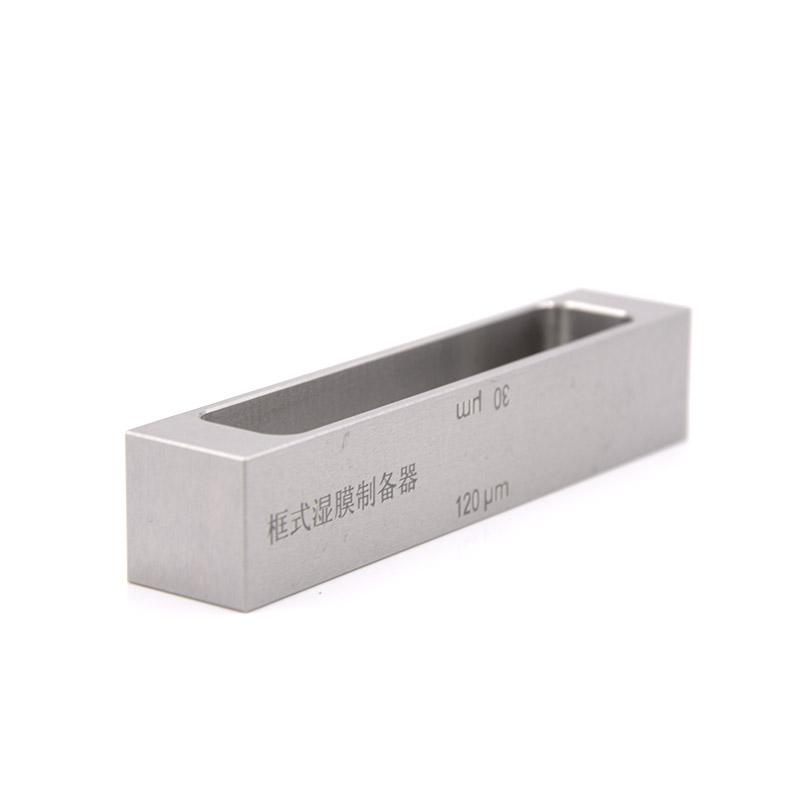

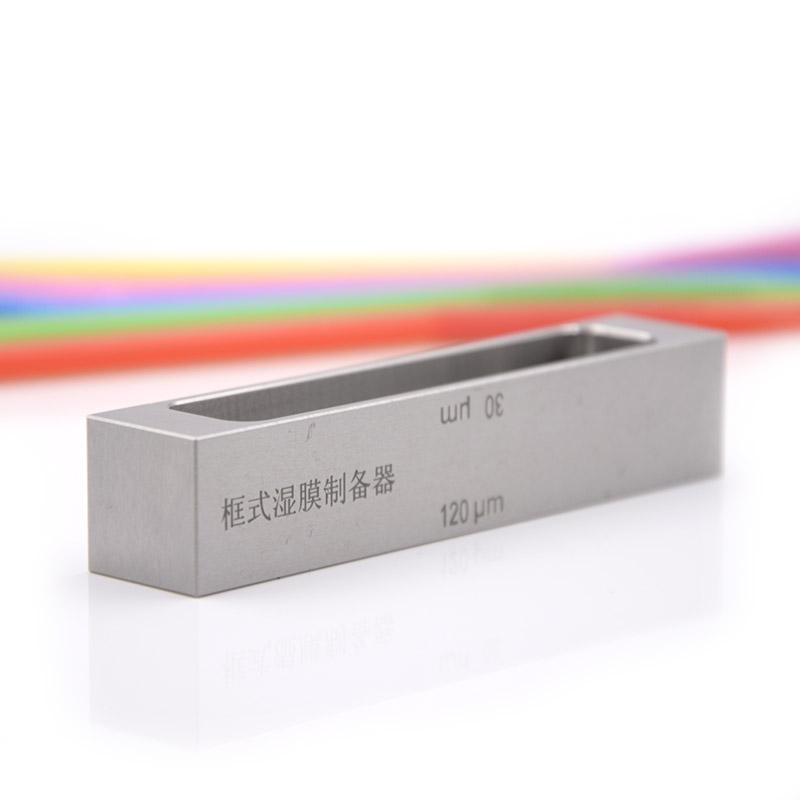

Product actual pictures

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
