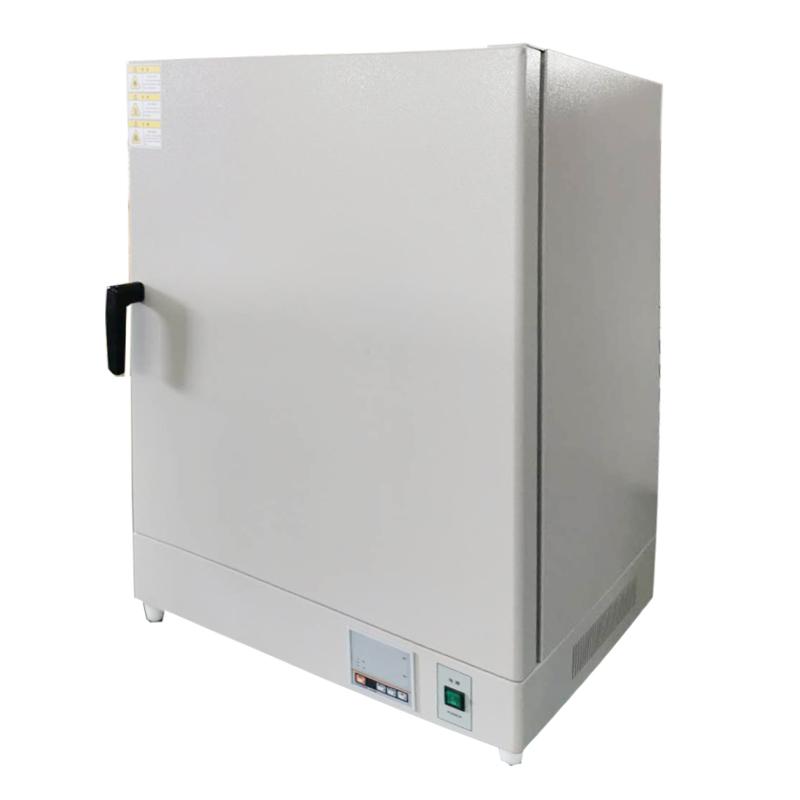

CHINA DHG-9070C high temperature Drying Oven temperature control 400 ℃ 70L
SE
DHG-9070C
-
CHINA DHG-9030BE vertical Forced Air Drying Oven hot topic blast heating box 300 ℃/30L$ 448.00SE -
CHINA DHG-9030C high temperature Drying Oven temperature control 400 ℃ 30L$ 576.00SE -
CHINA DHG-9140BE Vertical Forced Air Drying Oven Box type Forced Air Drying Oven 300 ℃/136L$ 623.00SE -
CHINA DHG-9140C high temperature Drying Oven temperature control 400 ℃ 140L$ 1131.00SE -
CHINA DHG-9240C high temperature Drying Oven temperature control 400 ℃ 240L$ 1512.00SE
Factory DHG-9070C High temperature Drying OvenSPEC
Factory DHG-9070C High temperature Drying OvenDetails
Factory DHG-9070C High temperature Drying OvenPacking list
- SKU
- NB044405
- Volume
- 70L
- Ambient Temperature
- +5~30°C
- Relative Humidity
- <80%
- Altitude
- <2000m
- Convection mode
- Natural convection
- Power
- AC220V 50Hz
- Temperature range
- RT+10~400℃
- Temperature Resolution
- 0.1℃
- Fluctuation
- +0.5°C
- Thermostat
- Liquid crystal display, button type, PID microprocessor control, touch type, digital display
- Sensors
- Platinum resistance PT100
- Timer
- 1~9999min
- Chamber material
- 304 stainless steel
- Enclosure Material
- 08F Cold rolled steel plate
- Interior size
- 400*400*450mm
- Dimensions
- 840*620*675mm
- Net Weight
- 65KG
- Power Consumption
- 2000W
- Shelves (most available)
- 2/4
Applications
DHG-9070C high temperature Drying Oven is mainly used in industrial and mining enterprises, colleges and universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories for drying, baking and curing of non-flammable and explosive items and non-volatile items. , disinfection and sterilization. Specific uses: drying of glassware, thermal deformation, thermal hardening, thermal softening, and moisture removal of experimental samples and food chemicals; dry heat sterilization of vessels and utensils in bioengineering; drying and aging of electronic components, etc.
Features
1. Reasonably designed air duct structure and fanless natural convection circulation design ensure uniform temperature in the studio.
2. Stainless steel studio, high-quality steel plate electrostatically sprayed shell, stainless steel polished electrolytic shelf, safe and convenient to use, novel and beautiful in shape.
3. The temperature controller adopts a high-speed and high-performance CPU processing chip, a high-sensitivity and high-precision platinum resistance sensor, and has fixed programming control functions of timed on, timed off, and fixed value operation; the Timer Setting is up to 9999 minutes.
4. The temperature controller comes with sensor failure alarm, upper and lower limit temperature deviation alarm, over-temperature alarm, parameter memory temperature display correction, and self-diagnostic dynamic control technology.
5. Independent temperature limit control alarm system, automatically interrupts work when the temperature exceeds the limit, double insurance. (optional)
