CHINA DHG-401A aging Test Chamber 1500W/200 ℃

SE
Select high-performance CPU processing chip and high-sensitivity, high-precision platinum resistance Sensors Temperature Control system, with Sensors fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction.
$532.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

Factory DHG-401A Aging Test ChamberSPEC

Factory DHG-401A Aging Test ChamberDetails

Factory DHG-401A Aging Test ChamberPacking list

SKU
NB044422
Ambient Temperature
5～30℃
Relative Humidity
≤80%
Altitude
≤2000m
Power
AC220V±10%   50Hz±1Hz
Display
Liquid crystal display, push-button, fuzzy PID control technology for microprocessor temperature control
Sensors
High-Precision Platinum Resistance Sensors
Convection mode
Forced circulation convection duct
Timer
Optional 0~9999 minutes
Temperature control range
Rt+10～300℃
Accuracy
0.1℃
Fluctuation
±5℃
alarm
SV + 5 ℃ (factory value)
Power Consumption
1500W
Rotation speed
15r/min
external material
08F Cold rolled steel plate
Internal Dimensions
450x450x450mm
External Dimensions
730x640x1250mm
DHG-401A
Aging Test Chamber
Select high-performance CPU processing chip and high-sensitivity, high-precision platinum resistance Sensors Temperature Control system, with Sensors fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction.

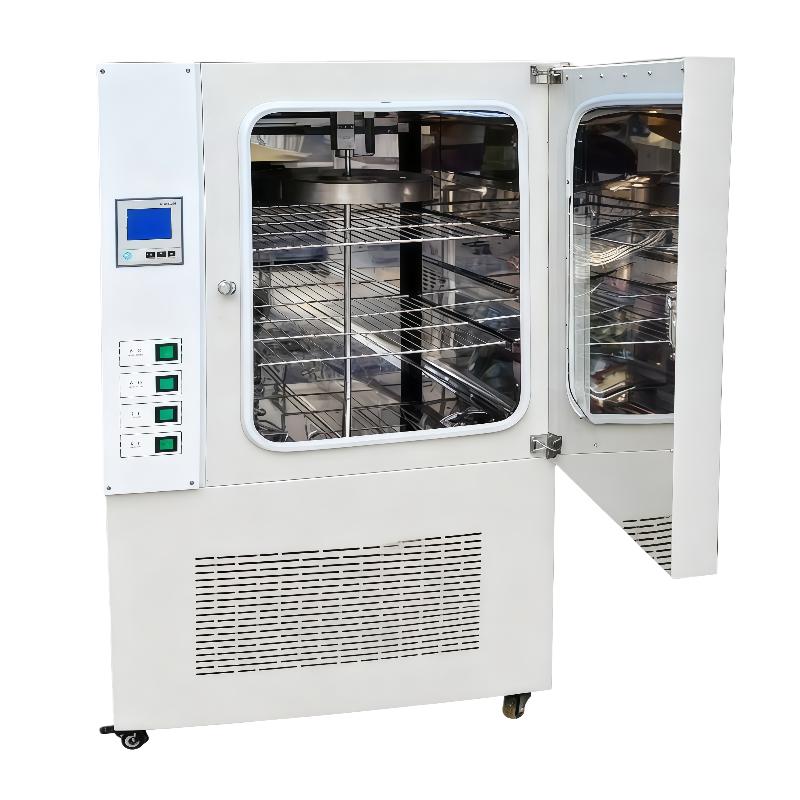

CHINA DHG-401A aging Test Chamber 1500W/200 ℃ Picture

Applications

DHG-401A aging Test Chamber is mainly used in industrial and mining enterprises and laboratory scientific research units for aging, drying, baking, wax melting and sterilization.

Features

1. The temperature control system uses high-performance CPU processing chips and high-sensitivity, high-precision platinum resistance sensors to make temperature control more precise and operation more convenient.

2. Equipped with sensor failure alarm, over-temperature alarm, self-diagnosis dynamic control, temperature display correction, parameter memory and timing functions up to 9999 minutes.

3. The shell is made of high-quality cold-rolled steel plates and uses phosphating electrostatic spraying technology to make it more durable and easier to clean.

4. The double-layer tempered glass observation window that complies with CCC certification makes it safer to observe samples in the box more clearly.

Series model

modelDHG-401ADHG-401AGDHG-401BDHG-401BGDHG-401C
Operating ConditionsAmbient temperature 5～30℃
Relative Humidity ≤80%
Altitude ≤ 2000m
Power supply AC220V±10% 50Hz±1Hz
Way of workingLCD display, push-button type, microprocessor temperature control with fuzzy PID control technology
High precision platinum resistance sensor
Forced circulation convection duct
Optional 0~9999 minutes
temperatureControl rangeRt+10～200℃Rt+10～300℃Rt+10～200℃Rt+10～300℃Rt+10～300℃
Accuracy0.1℃
Volatility±5℃
Call the policeSV+5℃(factory value)
Power consumption1500W2000W1500W2000W2500W
Rotating speed15r/minNo turntable
Materialinternal304 stainless steel
external08F cold rolled steel plate
Dimensions (mm)internal450x450x450450x450x45045x450x450450x450x450500x500x500
external730x640x1250730x640x1250 730x640x1250730x640x1250950x750x1300


FAQ
QOur laboratory needs to do material aging test, the temperature range is about 100-200 ℃, what do you recommend?
A The temperature control range of the DHG-401A aging test chamber is room temperature + 10 ° C to 200 ° C, just to meet your needs. This one uses High Accuracy Platinum Resistance Sensor and PID control technology, and the temperature accuracy reaches 0.1 ° C, which can ensure the accuracy of the aging test.
QOur factory needs to do product drying and sterilizing, and it needs to operate stably for a long time. Which one is suitable?
A DHG-401A is suitable, it has 9999 minutes long timing function, suitable for long-term drying sterilizing operations. 304 stainless steel liner and forced circulation convection air duct, good temperature uniformity, but also set over-temperature alarm to ensure safe and stable operation of equipment.
QWe need to observe the sample change process, and at the same time, it should be durable and easy to clean. Is there any recommendation?
A DHG-401A is equipped with double-decked tempered Glass observation window, which is safe and clear. Cold rolled steel plate with phosphating electrostatic spray is durable and easy to clean. The internal 304 stainless steel material is also resistant to corrosion, making it suitable for laboratory environments that require frequent observation and cleaning.
