JINGKELIAN KTQ-150 Micrometer Film Applicator KTQ Adjustable Preparation, Width 150mm

KTQ-150

Adjustable Coating Applicator

Adjustable, wet film thickness 0~3500μm, application width 150mm, accuracy +/- 2μm, material stainless steel, size 120 * 115 * 105mm

Overview of KTQ Adjustable Film Applicator

JinKeLian adjustable Film Applicators are divided into 4 models, KTQ-I, KTQ-II , KTQ-III , and KTQ-IV  according to the different coating widths, and the coating widths are 50mm, 100mm, 150mm, and 200mm respectively .  The film coating accuracy of KTQ-I/II/III/IV adjustable Film Applicators is ±2μm, which can be freely adjusted in the film thickness range of 0~3500μm, and the gap of the scraper can be adjusted in units of 10 microns.

Application of KTQ adjustable Film Applicator

The adjustable Film Applicator can adjust the scraper below by adjusting the two differentiators above the Film Applicator up and down to control the gap, that is, the thickness of the final coating.

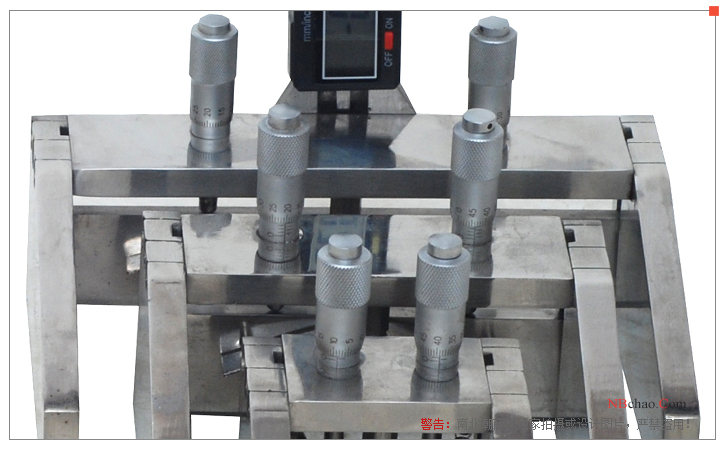

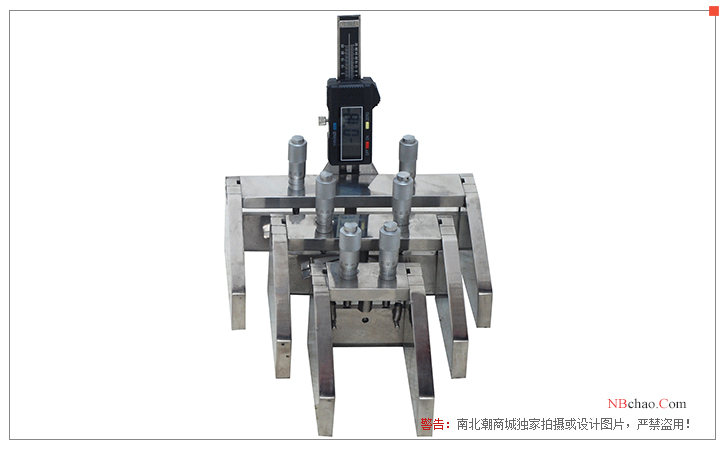

Real shot of KTQ adjustable Film Applicator

Packing list：Adjustable coating applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
