CHINA PY-200 Desktop thermostatic Shaker

SE
Rotary drive, set thermostatic foster and Shaker in one, closed adjustable cycle heating, mirror stainless steel liner, standard 500mlx3, 250mlx3, 100mlx5, 50mlx5 fixture, Temperature range 4 ℃~ 60 ℃, rocker size 405x455mm.
$1712.00/set
PromotionLoading...
Coupon
Model:

Factory PY-200 Desktop thermostatic ShakerSPEC

Factory PY-200 Desktop thermostatic ShakerDetails

Factory PY-200 Desktop thermostatic ShakerPacking list

SKU
NB044471
Oscillation mode
Cyclotron/Multidimensional Drive
Temperature range
4℃~60℃
Temperature Accuracy
Thermostatic +/- 0.1 ℃
Temperature Fluctuation
±0.1℃
Swirl/spin Frequency
20~300rpm
Speed Accuracy
±1rpm
Oscillation Stroke
φ24mm
Maximum configuration
500mlx9、250mlx16、100mlx28
Rocking board size
405x455mm
Number of pallets
1 piece
Liner size
510x480x370mm
Timer
Can be selected arbitrarily
Dimensions
800x700x520mm
Net Weight
75kg
Input Power
300W
Power
Ac220v±10% 50~60HZ
Display mode
LCD liquid crystal display
Gross Weight
105kg
Control mode
PLD microcomputer intelligent control
Merry way
Forced convection
Standard configuration
500ml*3、250ml*3、100ml*5、50ml*5
PY-200
Desktop thermostatic Shaker
Rotary drive, set thermostatic foster and Shaker in one, closed adjustable cycle heating, mirror stainless steel liner, standard 500mlx3, 250mlx3, 100mlx5, 50mlx5 fixture, Temperature range 4 ℃~ 60 ℃, rocker size 405x455mm.

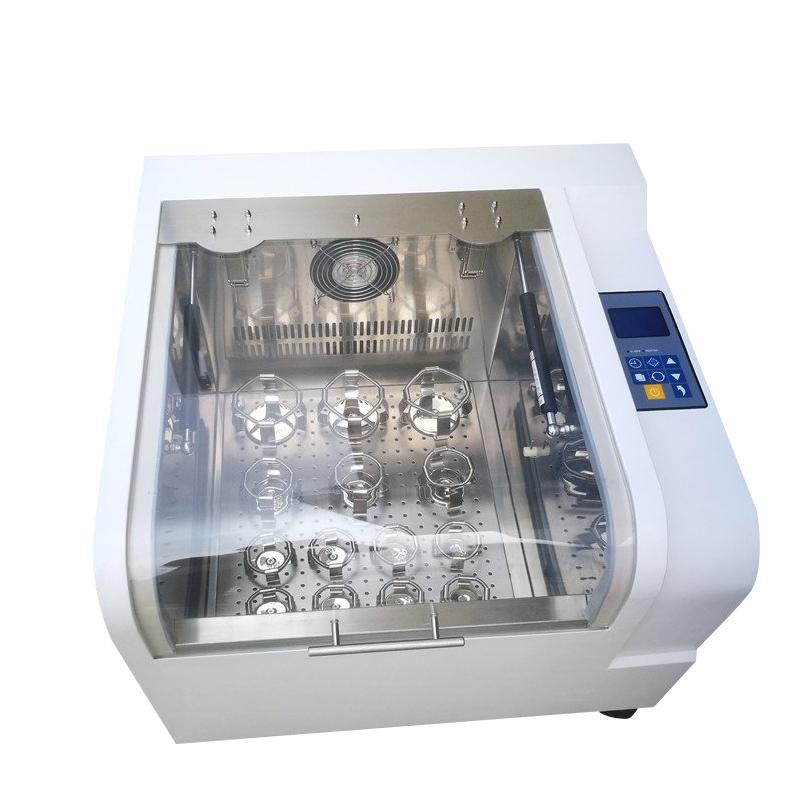

CHINA PY-200 Desktop thermostatic Shaker Picture

Applications

Widely used in cell culture, fermentation, hybridization, biochemistry, and scientific research on enzymes and cell tissues. Widely used in life science and other fields.

Features

  • It integrates a constant temperature Incubator and an oscillator into one, with more functions and less investment. When the temperature is higher than or lower than the set temperature, the host will sound an alarm.

  • It is equipped with an automatic stop protection device when the cover is removed to protect the operator from accidents .

  • Electronically controlled closed adjustable circulation heating and cooling system, silent fan design.

  • The streamlined and luxurious overall machine shape with rich aesthetic concepts brings you visual enjoyment. The large screen viewing window allows the operator to observe cultures cleanly during use .

  • Equipped with incoming call recovery function, it is not affected by power interruption .

  • It has a powerful and fast heating and cooling system.

  • Types 200 and 100B are equipped with air pressure regulating valves to make the door opening more flexible and lighter.

  • A wide variety of detachable rocking plates and stainless steel spring flask clamps can be combined at will .

  • The mirror stainless steel inner liner makes the whole machine look neat and bright.

PY series technical parameters

modelStandard configurationtemperature controlRocking board size
PY-100C100mlx9Room temperature +5~60℃290x250mm
PY10013500mlx3, 250mlx3, 100mlx4, 50mlx4Room temperature +5~60℃405x375mm
PY200500mlx3, 250mlx3, 100mlx5, 50mlx54~60℃405x455mm
Other parameters
Temperature control accuracy±0.1℃ at constant temperature
Oscillation/drive methodSwing/Multidimensional Drive
romantic styleforced convection
amplitudeφ24mm
rotation frequency20~300rpm (frequency accuracy ±1rpm)


FAQ
QThe laboratory needs to handle multiple sizes of foster bottles at the same time. What is the recommendation?
A PY-200 is recommended. It comes standard with 500ml * 3, 250ml * 3, 100ml * 5, 50ml * 5 flask clips, and can also be equipped with different rockers. The maximum can be configured to 500ml * 9 or 100ml * 28, which flexibly meets your needs for handling different specifications of foster bottles at the same time.
