RDS 8 #1/4 "molded Mayer Rods WFT 18.3μm

SE
It is suitable for preparing 18.3μm wet-film, rod diameter 6.35mm, Total length 400mm, effective Spreader width 300mm, suitable for Coating inks, Resin, Plastic, Pressure sensitive adhesive, etc.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 8# 1/4“ Applicator rod 1/4 "SPEC

RDS 8# 1/4“ Applicator rod 1/4 "Details

RDS 8# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB004458
Production process
formed
WFT
18.3μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
8# 1/4“
Applicator rod 1/4 "
It is suitable for preparing 18.3μm wet-film, rod diameter 6.35mm, Total length 400mm, effective Spreader width 300mm, suitable for Coating inks, Resin, Plastic, Pressure sensitive adhesive, etc.

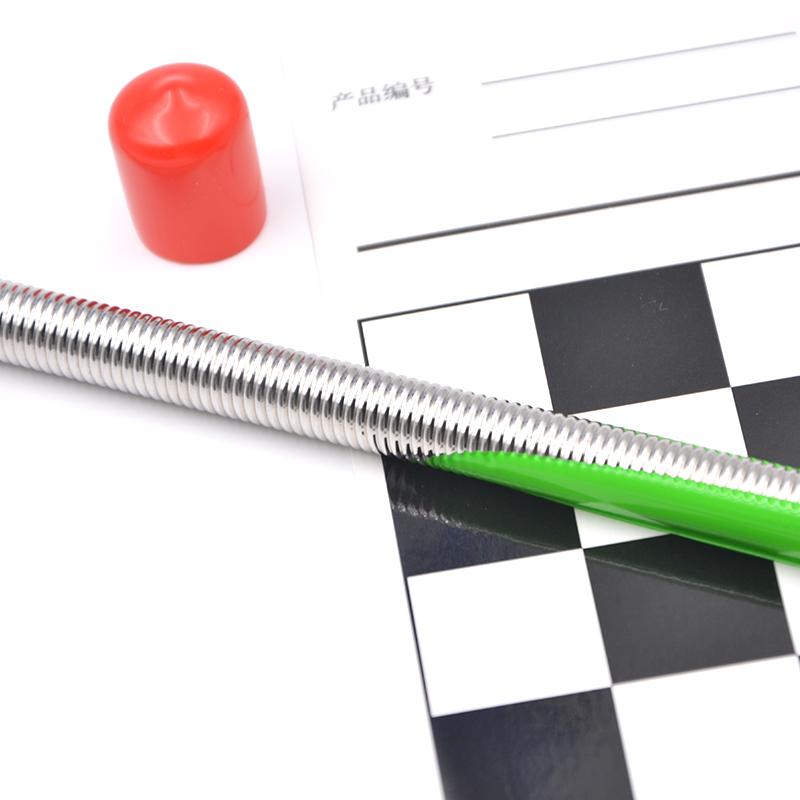

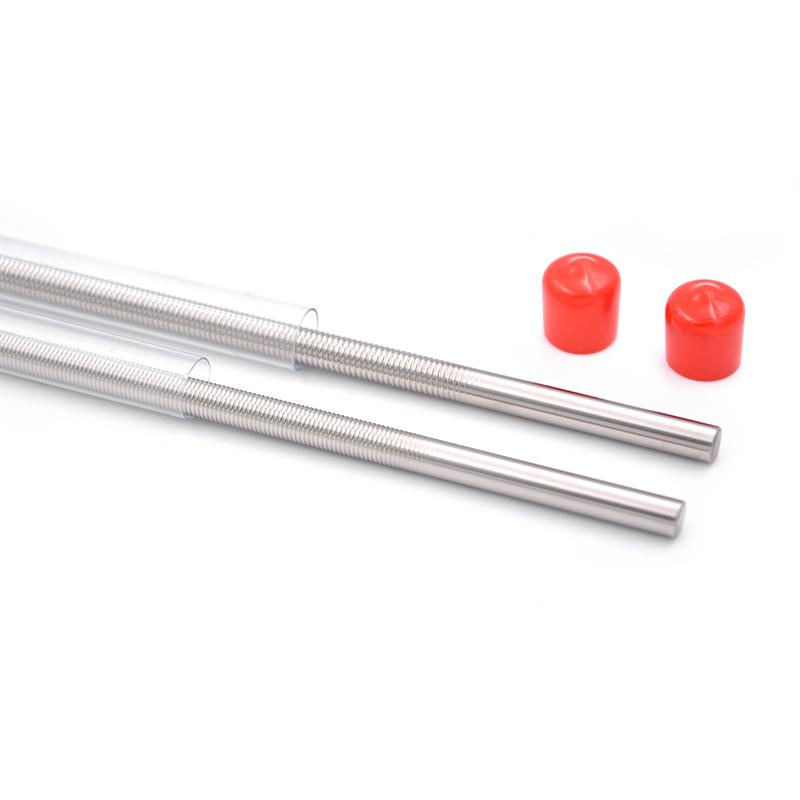

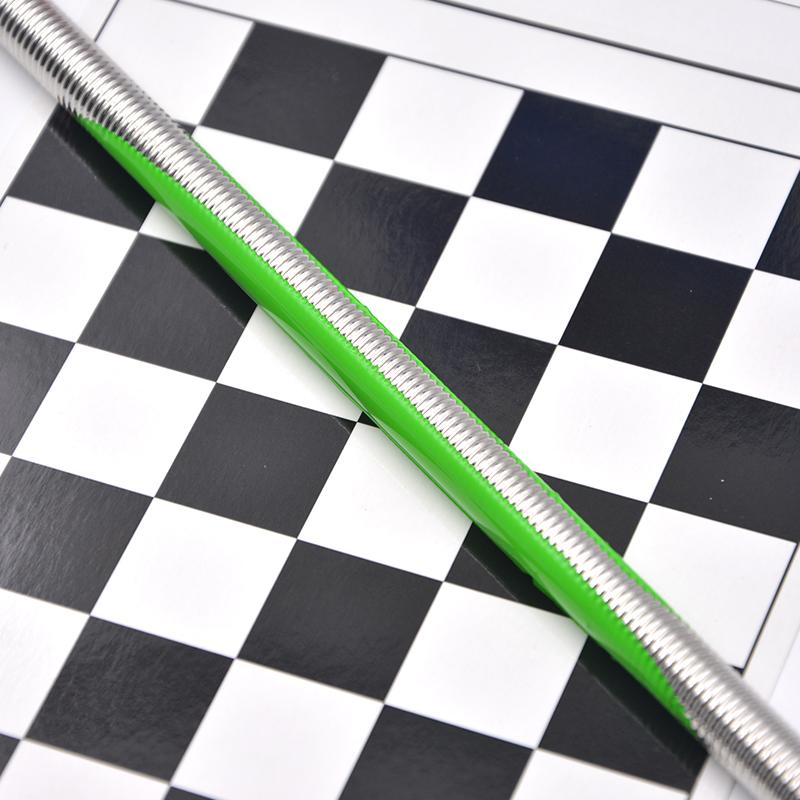

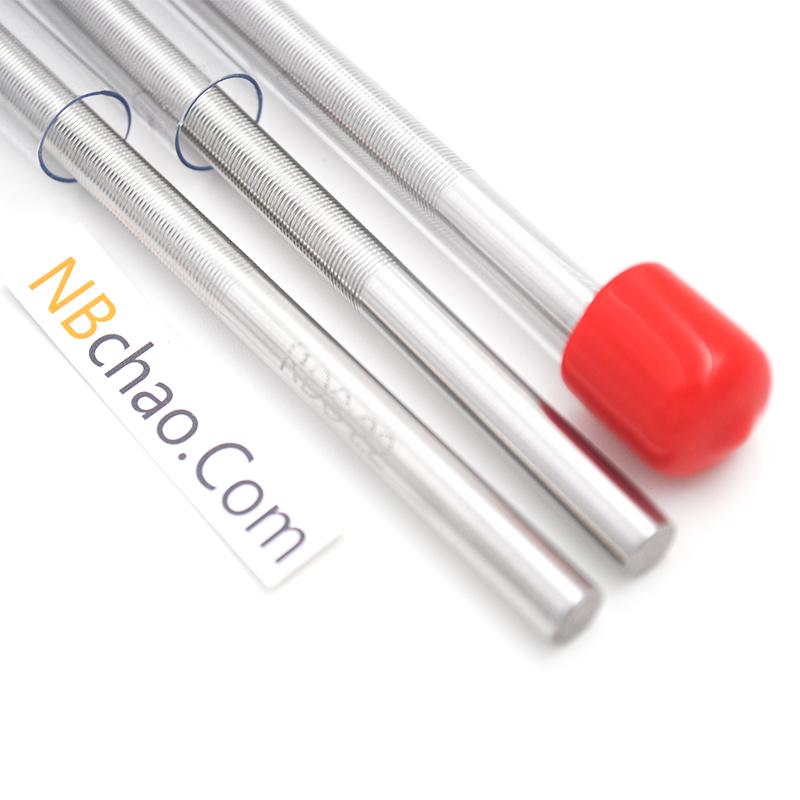

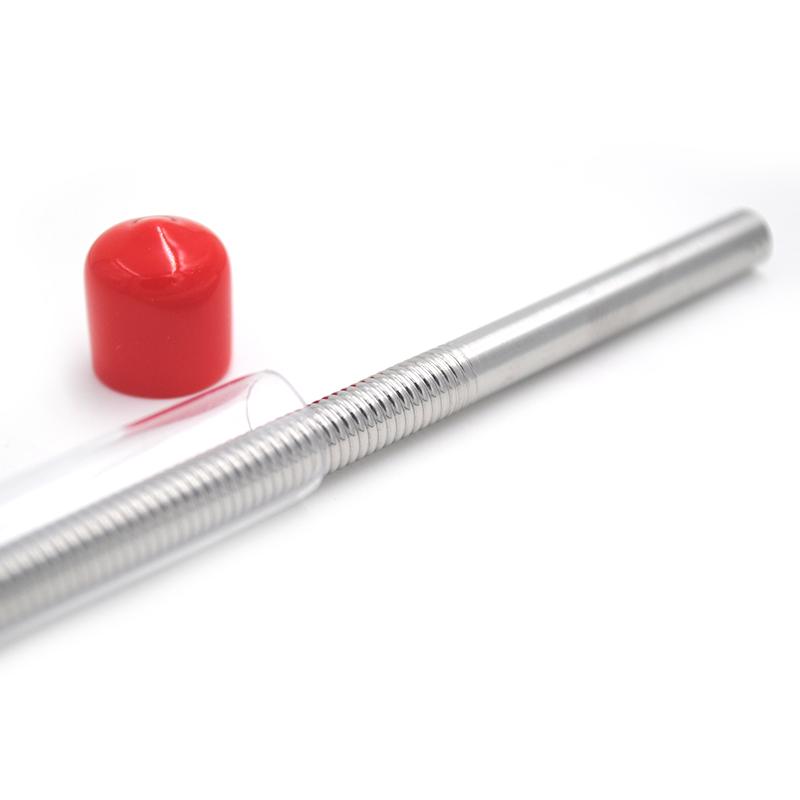

RDS 8 #1/4 "molded Mayer Rods WFT 18.3μm Picture

Product description

RDS#8 wire rod applicator has two processes of wire-wound rod and forming rod, among which the wire-wound rod is divided into three diameters: 1/2'', 3/8'', 1/4'', the same model The wet film thickness prepared by the RDS wire Bar Coater is the same, the wet film thickness that can be coated by the RDS#8 wire Bar Coater is 18.3 microns, the rod length is 400mm, and there are 50mm grips at both ends . The RDS wire Bar Coater is made of 303 high-grade stainless steel, which has the characteristics of wear resistance and corrosion resistance. It is not only suitable for the coating and ink industry, but also widely used in resin, plastic, pressure-sensitive adhesive and other industries.

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QCan this scraper be coated with UV Gloss oil?
A OK
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan the RDS8 #1/4 "extrusion rod meet the ASTMD823 standard?
A Applicable, you can consult the customer service of the mall for details about the ASTMD823 standard.
QHow many microns is the RDS rod 8 rod equivalent to?
A RDS bar 8 bar Spreader wet film thickness of 18.3 μ m.
QI am a plastic bag printing factory. We need Applicator rod for color matching. Is this No. 8 rod suitable?
A Hello, according to NBchao data, there are indeed users in your industry who use RDS8 for preparation, but it is wired. Both winding and extrusion are OK. Strictly speaking, it is recommended to convert through a wet film thickness calculator or a wet and dry film converter. If you have more detailed questions, you can consult NBchao customer service.
