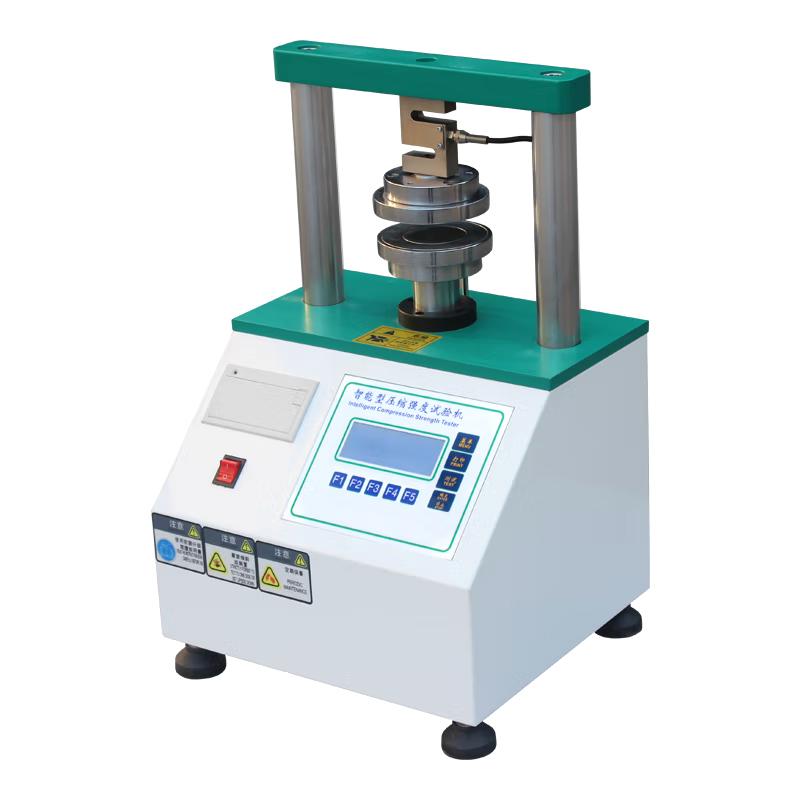

CHINA NBC-8503 Side Compression/Ring Compression Strength Tester, Touch Screen Compression Strength Tester

NBC-8503

Side pressure/ring pressure Strength Tester (touch)

Stable and accurate operation, with patent certificate. Automatically calculate side pressure and ring pressure strength, with stacking test function, LCD display, unit optional, and can be directly printed.

Introduction

The intelligent cardboard edge crush strength Tester is a basic instrument for testing (i.e. paper packaging testing instrument). It is equipped with various fixture accessories to test the ring crush strength of base paper, flat crush strength of cardboard, and edge compression strength. Tests such as compressive strength and gluing strength allow paper product manufacturers to control production costs and improve product quality. Its various performance parameters and technical indicators comply with relevant standards.

Equipped with various fixture accessories, it can test the ring crush strength of base paper, flat crush strength of cardboard, edge crush strength, glue strength and other tests, so that paper product manufacturers can control production costs and improve product quality.

Adopt standards

1.GB/T 2679.8-1995 "Determination of ring crush strength of paper and paperboard"

2.GB/T 6546-1998 "Determination of edge pressure strength of corrugated cardboard"

3GB/T 6548-1998 "Determination of Adhesion Strength of Corrugated Board"

4.GB/T 2679.6-1996 "Determination of Flat Pressure Strength of Corrugated Base Paper"

5.GB/T 22874 "Determination of flat compression strength of single-sided and single-sided corrugated cardboard"

Equipped with corresponding auxiliary equipment, the following tests can be carried out

1. Equipped with a ring pressure test center disk and a special ring pressure sampler to conduct the cardboard ring pressure strength test (RCT);

2. Equipped with edge pressure (bonding) sample sampler and auxiliary guide block to conduct edge pressure strength test (ECT) of corrugated cardboard

3. Use the peel strength test frame to do the corrugated cardboard adhesion (peel) strength test (PAT)

4. Equipped with a flat compression sampler to conduct flat compression strength test (FCT) of corrugated cardboard;

5. The compressive strength (CCT) and flat compressive strength (CMT) of base paper after corrugation in the laboratory.

product advantages

1. The system automatically calculates ring pressure strength and edge pressure strength, eliminating the need for users to calculate by hand, reducing workload and errors;

2. It has its own packaging stacking test function, which can directly set the force and time, and automatically shut down after the test is completed;

3. After the test is completed, it has an automatic return function to automatically determine the crushing force and automatically save the test data;

4. Three settable speeds, full Chinese LCD display operation interface, and a variety of units to choose from;

5. Can record and save 20 test results.

Packing list：host X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
