CHINA NBC-8502 Automatic Breaking Strength Tester

SE
Measurement range 250-5600kPa, Precision +/- 0.5% FS, oil feeding speed 170 +/- 15ml/min, clamping force > 690kPa, in line with ISO2759 and GB/T1539 standards.
$968.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Factory NBC-8502 Breaking Strength TesterSPEC

Factory NBC-8502 Breaking Strength TesterDetails

Factory NBC-8502 Breaking Strength TesterPacking list

SKU
NB044582
Measurement range
250~5600kPa
resolution
1kPa
Precision
±0.5%FS
Oil delivery speed
170±15mL/min
Clamping Force
>690Kpa
Power
300W
Power supply Voltage
AC220V±10%，50Hz
Dimension
445*425*525mm
Remarks
Paper rupture test can be customized
NBC-8502
Breaking Strength Tester
Measurement range 250-5600kPa, Precision +/- 0.5% FS, oil feeding speed 170 +/- 15ml/min, clamping force > 690kPa, in line with ISO2759 and GB/T1539 standards.

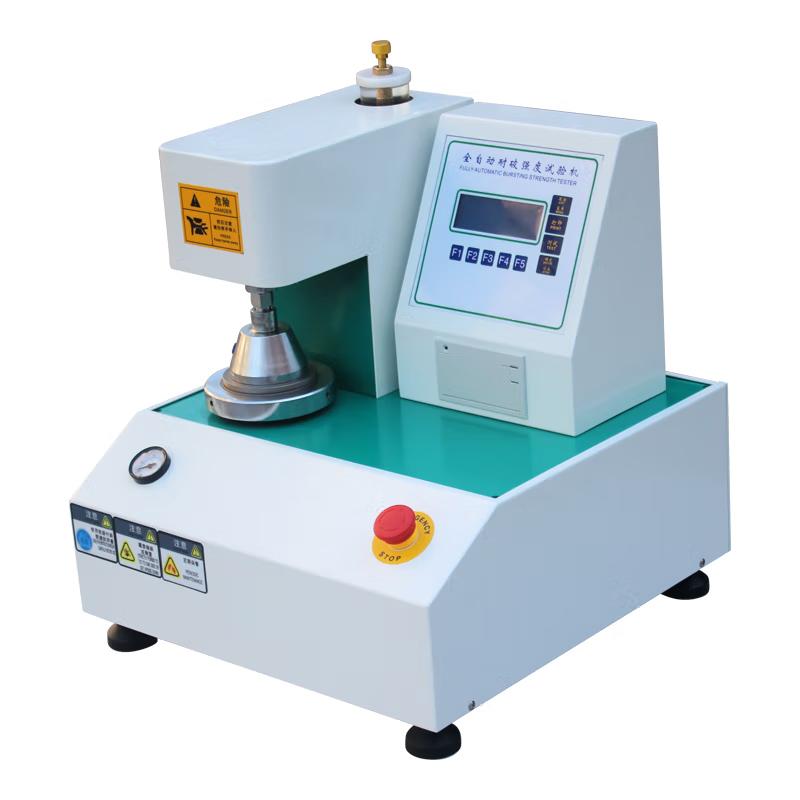

CHINA NBC-8502 Automatic Breaking Strength Tester Picture

Introduction

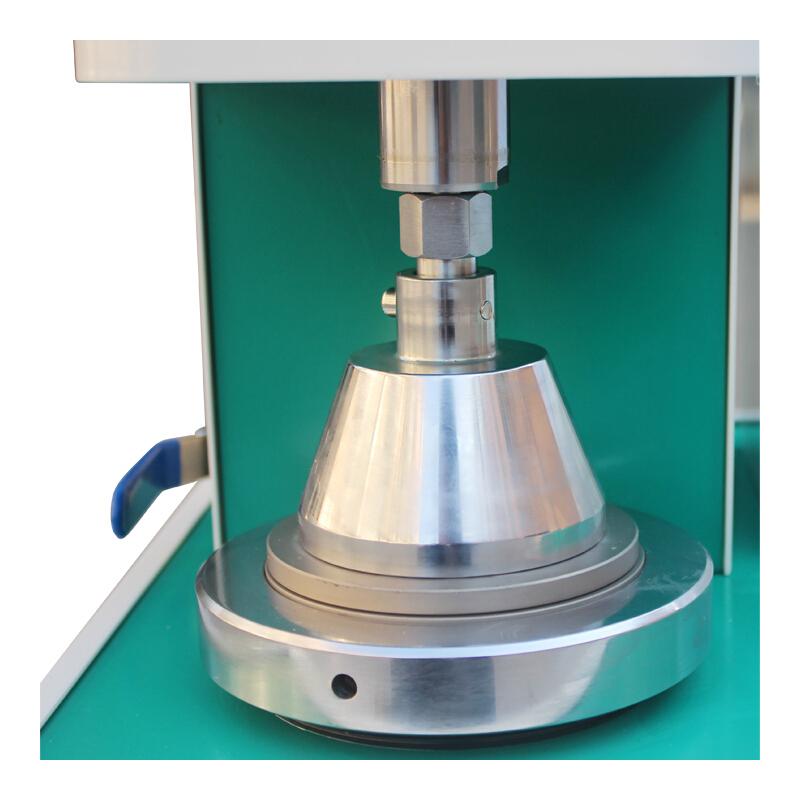

The fully automatic bursting Strength Tester adopts pneumatic clamping of the sample and LCD display, and is suitable for measuring the bursting strength of cardboard, corrugated cardboard and other sheet-like boards.

It complies with the standards of ISO2759 "Method for Determination of Bursting Strength of Paperboard" and GB/T1539 "Method for Determination of Burst Strength of Paperboard", and is suitable for various types of paperboard bursting strength tests. It adopts professional microcomputer detection control system and digital signal processing technology to ensure test data Accurately adopts large-screen LCD graphics and text display, friendly menu-based human-machine interface, easy and fast operation, high-quality micro printer and complete and detailed test data reports.

Features

1. After the cardboard is crushed, it will automatically stop and return to the initial position.

2. Fully automatic one-click operation

3. Can store 50 sets of data at the same time

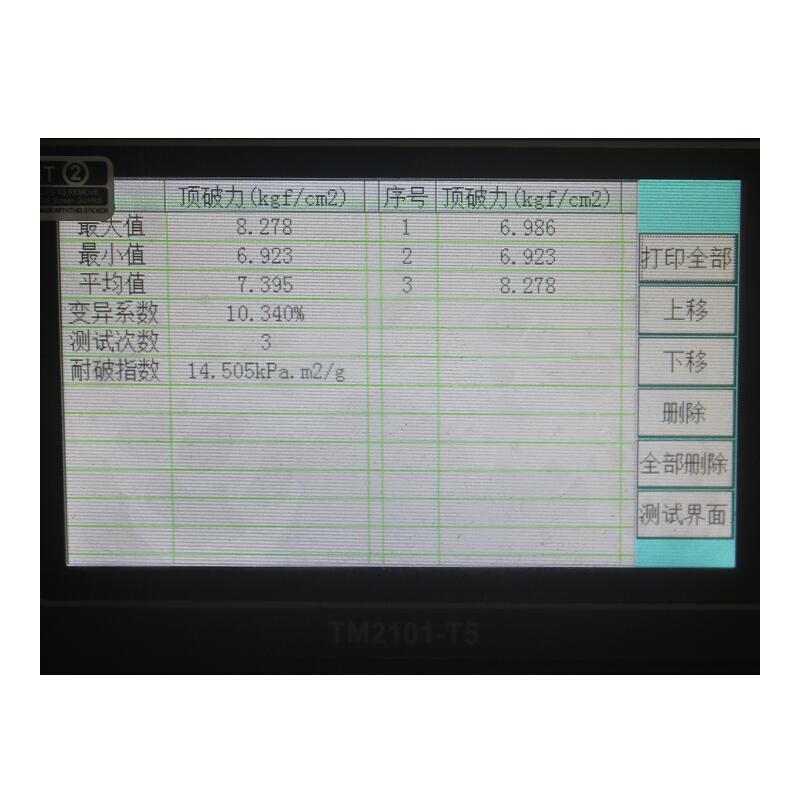

4. Equipped with micro-printing to print test results

5. Equipped with emergency stop button to improve operation safety

6. Equipped with air pressure gauge to monitor pressure at any time

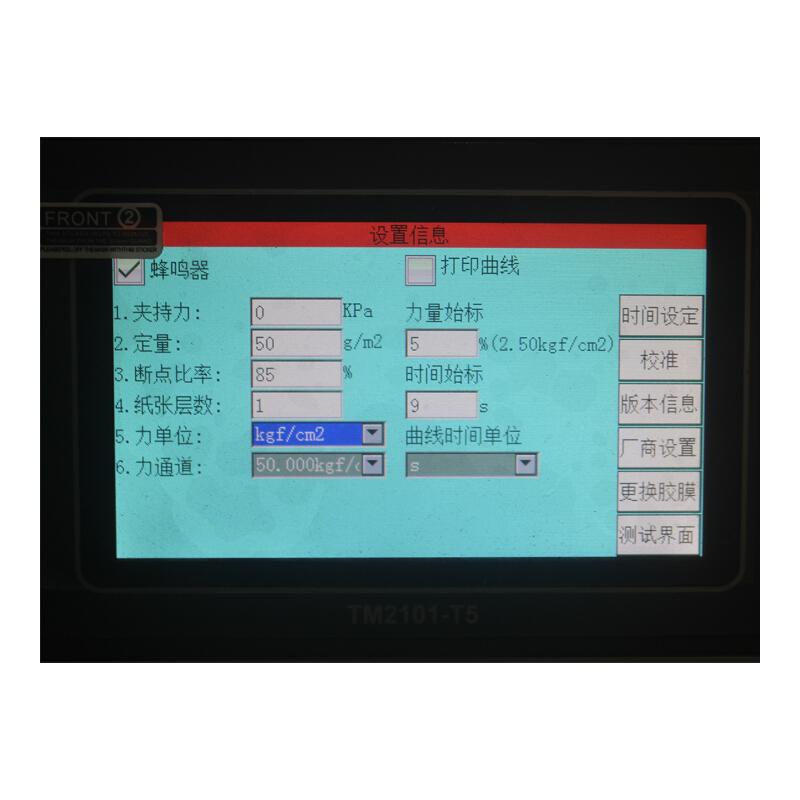

7. High-definition LCD display

8. Change the traditional glycerin + water method and use silicone oil instead. The machine will not rust easily and extend the life of the machine.

Adopt standards

ISO 2759: Determination of bursting strength of cardboard;

GB/T 1539 : Determination of bursting strength of cardboard;

QB/T 1057 : Burst Strength Tester for paper and cardboard.

FAQ
QOur factory mainly do corrugated fibreboard, want to buy a burst resistance tester, have recommendations?
A The NBC-8502 automatic Breaking strength testing machine is specially designed for Cardboard, conforming to the GB/T1539 standard, pneumatic clamping sample, one-button operation, test range of 250~ 5600kPa, can accurately measure the breaking strength of Cardboard, and is also equipped with a micro printer to directly report.
QWhat materials is this machine suitable for testing?
A It is suitable for the bursting resistance determination of Cardboard, corrugated fibreboard and Miscellaneous sheet, such as Encasement Cardboard, because silicone oil is used instead of traditional glycerol water, rust-resistant and durable, in line with ISO2759 and GB/T1539 standards, to ensure reliable test results.
QOur factory mainly do corrugated fibreboard, want to buy a burst resistance tester, have recommendations?
A NBC-8502 automatic Breaking strength testing machine is specially designed for Cardboard corrugated fibreboard, in line with ISO2759 and GB/T1539 standards, pneumatic clamping sample operation is simple, but also automatic shutdown reset.
QWhat are the bright points in the function?
A The NBC-8502 is a fully automatic one-button operation, equipped with a high definition LCD screen and a micro printer, which can store 50 sets of data and print the results. It uses silicone oil instead of traditional glycerol water, the machine is more durable and not easy to rusting, and there are emergency stop buttons and barometers, which are safe and convenient, especially suitable for factory environments with frequent daily testing.
QDo you need an external air compressor? This automatic Breaking strength tester
A To pick up
