CHINA NBC-LRCJ11 Impact Toughness Tester Pendula Impact Tester

SE
Pendulum energy 2.75J, 5.5J, 11J, Impact speed 3.5M/s, Impact blade angle 37 ° +/- 1 °, suitable for hard plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulation materials and other Non-metallic materials Impact determination.
$666.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT
Similar products

Factory NBC-LRCJ11 Pendula Impact TesterSPEC

Factory NBC-LRCJ11 Pendula Impact TesterDetails

Factory NBC-LRCJ11 Pendula Impact TesterPacking list

SKU
NB044589
Internal Volume
30, 50, 150KG-CM selection
Impact velocity
3.5M/SET(11T/SEC)
Pendulum energy
2.75J、5.5J、11J
test angle
150°
Blade fillet radius
R=0.8±0.2mm
Distance from blade to jaw
22±0.2mm
Impact blade angle
37°±1°
Volume
About 550X400X690mm
Weight
About 50kg
NBC-LRCJ11
Pendula Impact Tester
Pendulum energy 2.75J, 5.5J, 11J, Impact speed 3.5M/s, Impact blade angle 37 ° +/- 1 °, suitable for hard plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulation materials and other Non-metallic materials Impact determination.

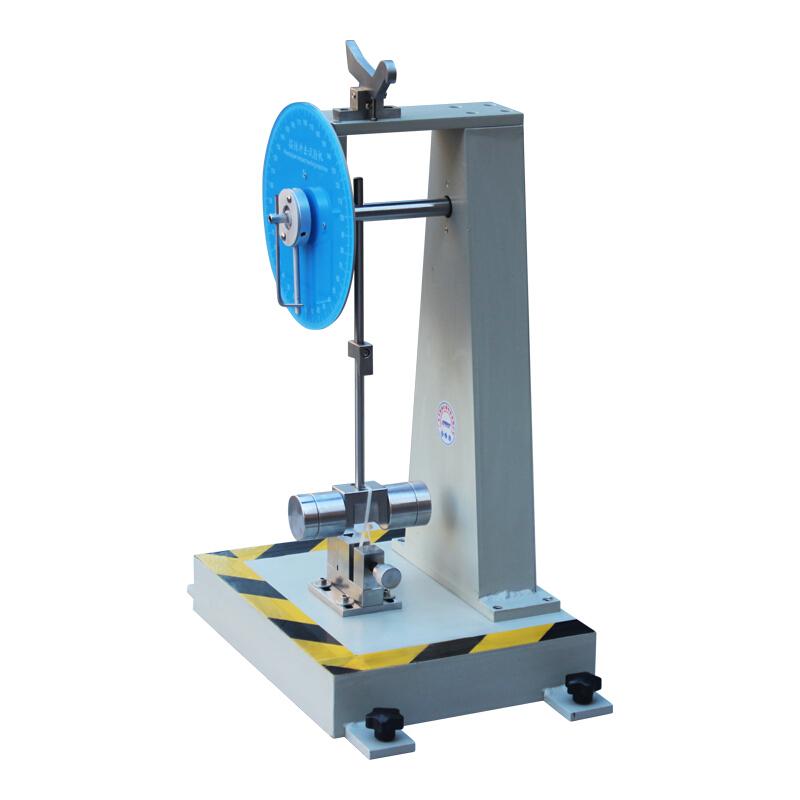

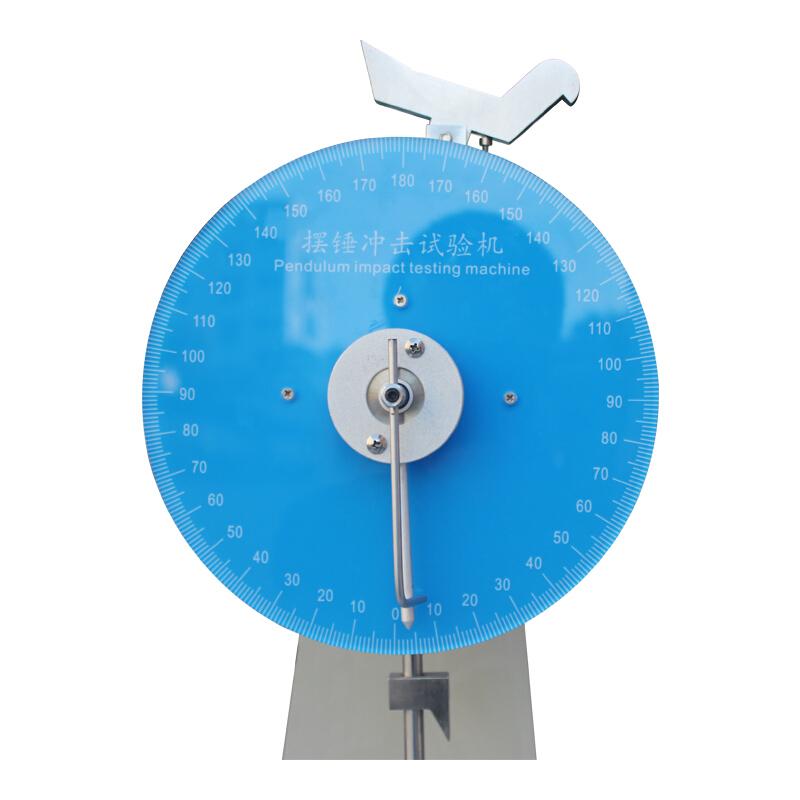

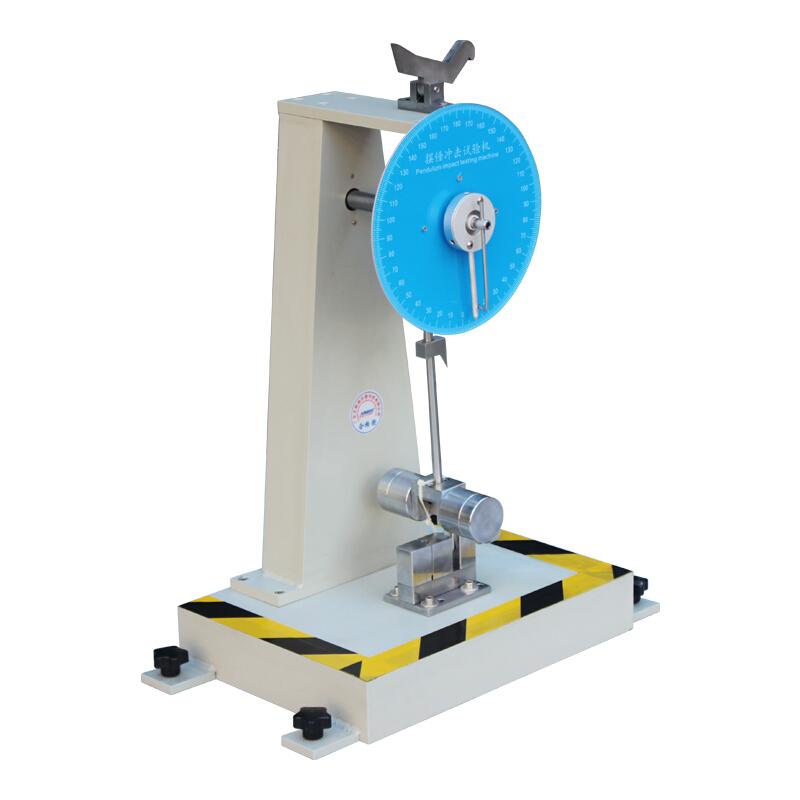

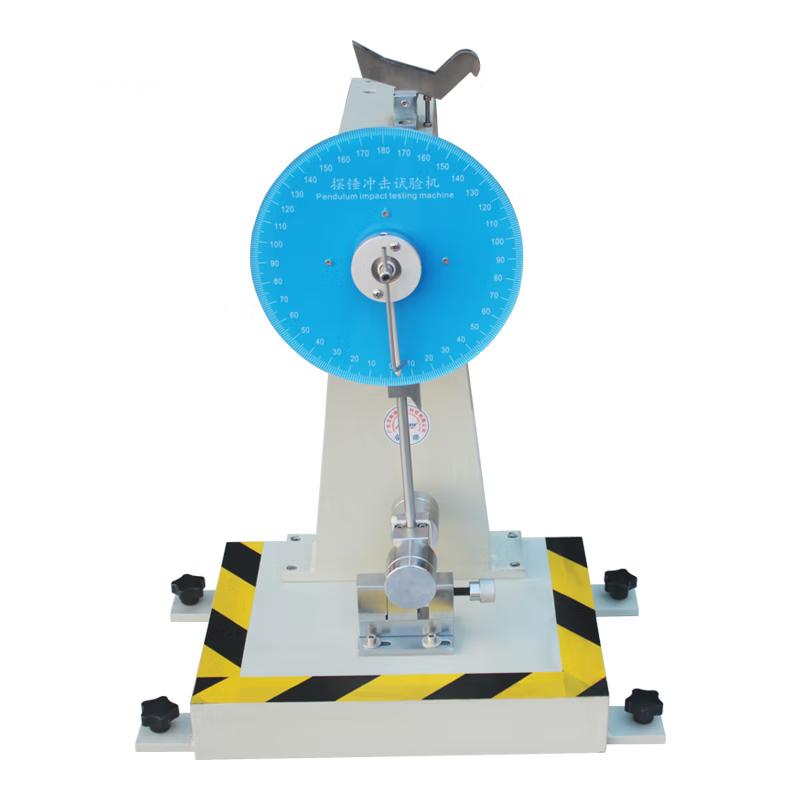

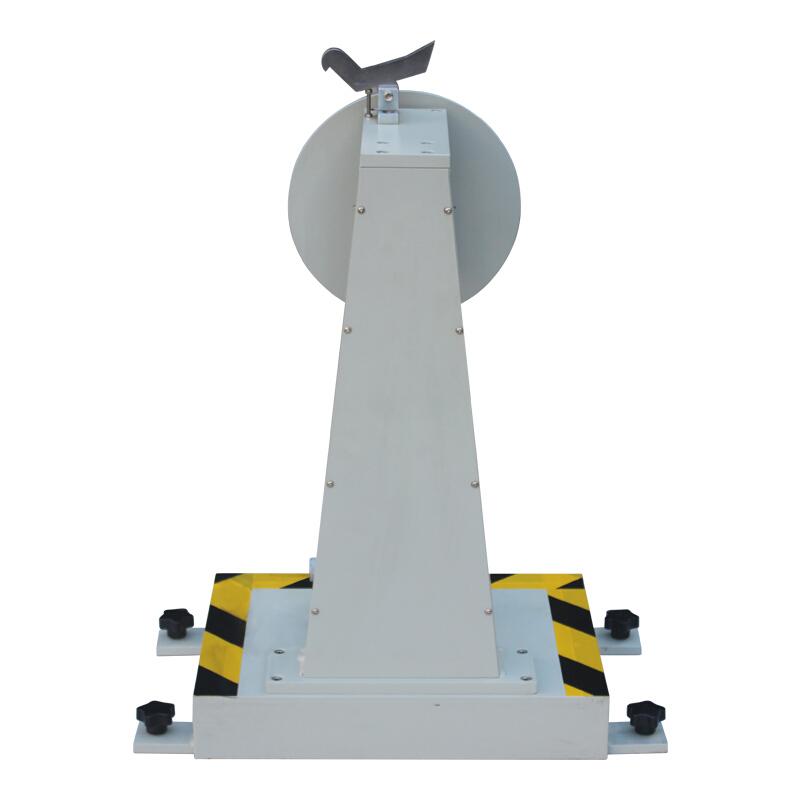

CHINA NBC-LRCJ11 Impact Toughness Tester Pendula Impact Tester Picture

Introduction

Pendulum impact is suitable for measuring the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics , cast stones, and electrical insulation materials. Test pieces of various hard plastic materials can absorb energy after being hit by a certain angle and a certain weight to determine the toughness of the material. This machine is a testing instrument with simple structure, beautiful appearance, easy operation and accurate data. The display mode is pointer dial display.

Standards compliant

The products comply with the requirements of ISO179, 180, GB/T1043, 1843, ASTM D256, JB8762, JB8761, ISO9854, GB18743 and other standards.

The pendulum impact testing machine complies with the international standard ISO180-1992 " Determination of impact strength of plastic-hard material cantilever beams"; national standard GB/T1843-1996 "Hard plastic cantilever beams"

Beam Impact Test Method", machinery industry standard JB/T8761-1998 "Plastic Izod Beam Impact Testing Machine".

FAQ
QOur factory mainly does the impact toughness test of hard plastics and FRPs. Which instrument should I choose?
A The NBC-LRCJ11 Pendulum Impact Tester is recommended. It is designed for non-metallic materials such as hard plastics and FRP, and meets ISO179 and GB/T1043 standards. It can accurately determine the energy absorbed by the material when it is impacted. The operation is simple and reliable.
QWhich Materials Can This Testing Machine Measure Their Impact Strength?
A It is suitable for hard plastics, reinforced nylon, FRP, ceramics, cast stone, and electrical insulation materials. It is tested for toughness by pendulum impact, and meets ISO180 and GB/T1843 standards to ensure authoritative test results.
QWhat functional configurations are available for the instrument?
A NBC-LRCJ11 provides 2.75J, 5.5J and 11J three pendulum energy options, suitable for different material testing needs; Impact speed 3.5m/s, angle 150 °, can flexibly match the impact test standards of various rigid plastics.
