CHINA NBC-4321 Wire and cable horizontal vertical combustion testing machine, wire flame retardant Test Chamber

SE
Vertical + horizontal combustion testing machine is suitable for combustion resistance test of various Wire and cable insulation coating materials, printing circuit board materials, IC insulators and other organic materials.
$671.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT

Factory NBC-4321 Wire and cable horizontal vertical combustion testing machineSPEC

Factory NBC-4321 Wire and cable horizontal vertical combustion testing machineDetails

Factory NBC-4321 Wire and cable horizontal vertical combustion testing machinePacking list

SKU
NB044590
Vertical combustion tank
Made according to UL1581 standard size, Internal Dimensions are 305 * 355 * 610mm.
Horizontal combustion tank
Made according to UL1581 standard size, Internal Dimensions are 305 * 355 * 610mm.

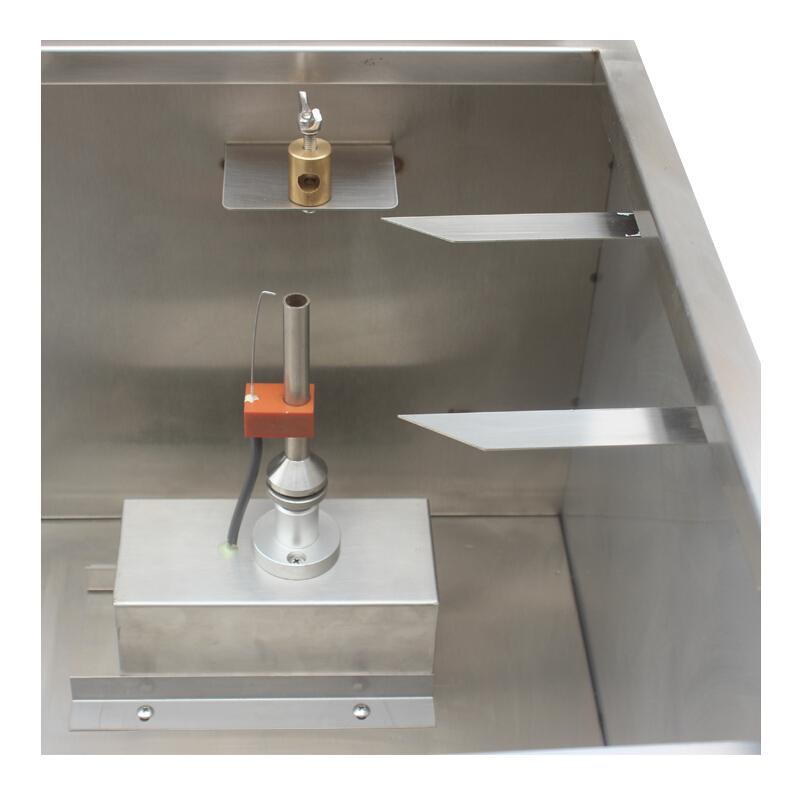

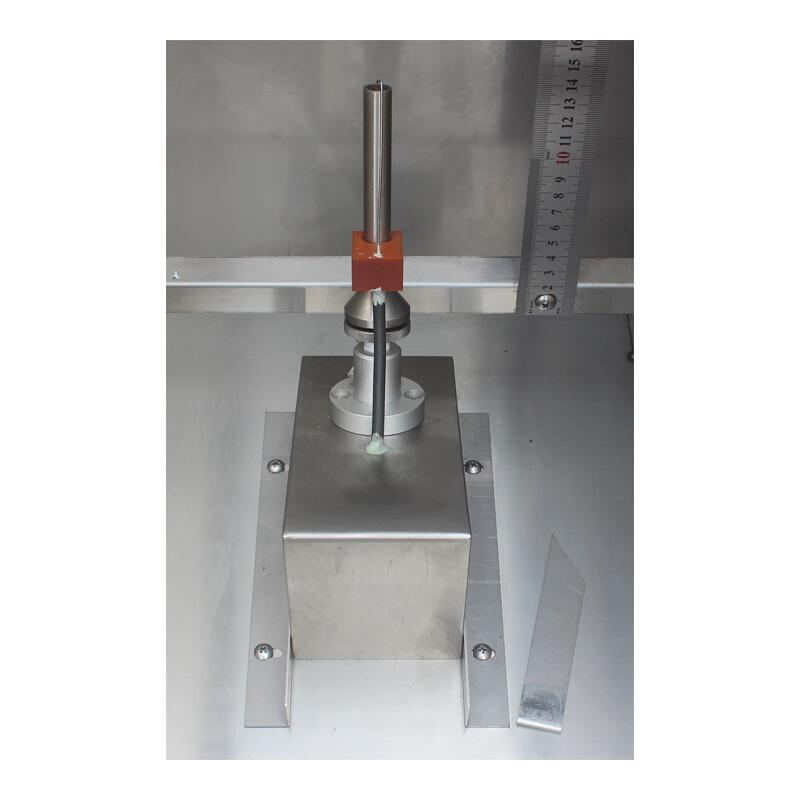

Vertical spark nozzle
The nozzle angle is 20 degrees with a gas control valve.
Horizontal spark nozzle
The nozzle angle is 90 degrees with a gas control valve.
mode
Manual/automatic mode, vertical or horizontal nozzle selection mode.
Combustion gas
Gas. Methane (customer-provided)
Miscellaneous
When the preset data is reached, the machine automatically stops the test.
NBC-4321
Wire and cable horizontal vertical combustion testing machine
Vertical + horizontal combustion testing machine is suitable for combustion resistance test of various Wire and cable insulation coating materials, printing circuit board materials, IC insulators and other organic materials.

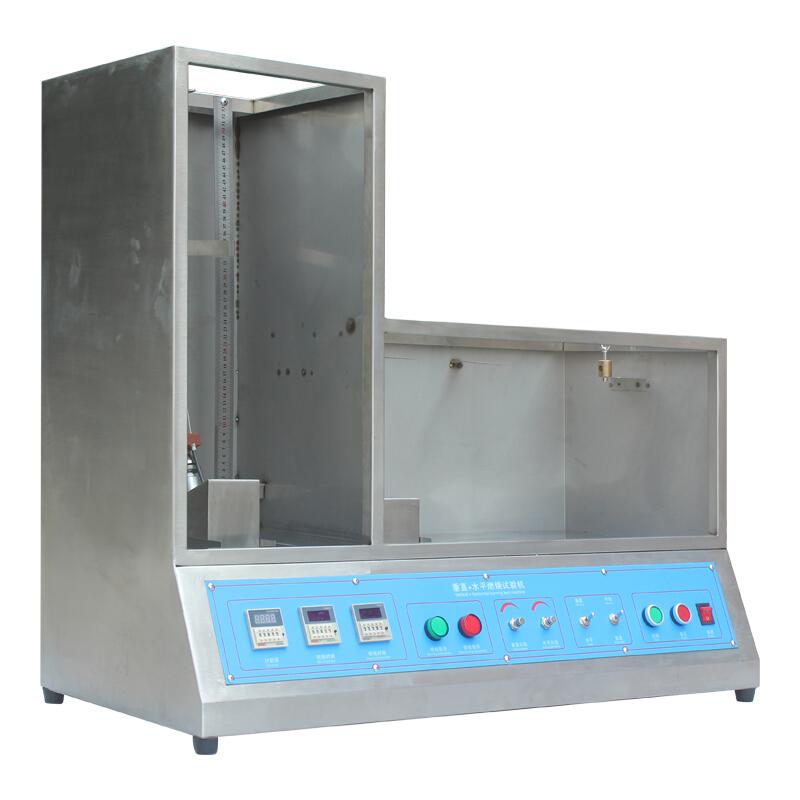

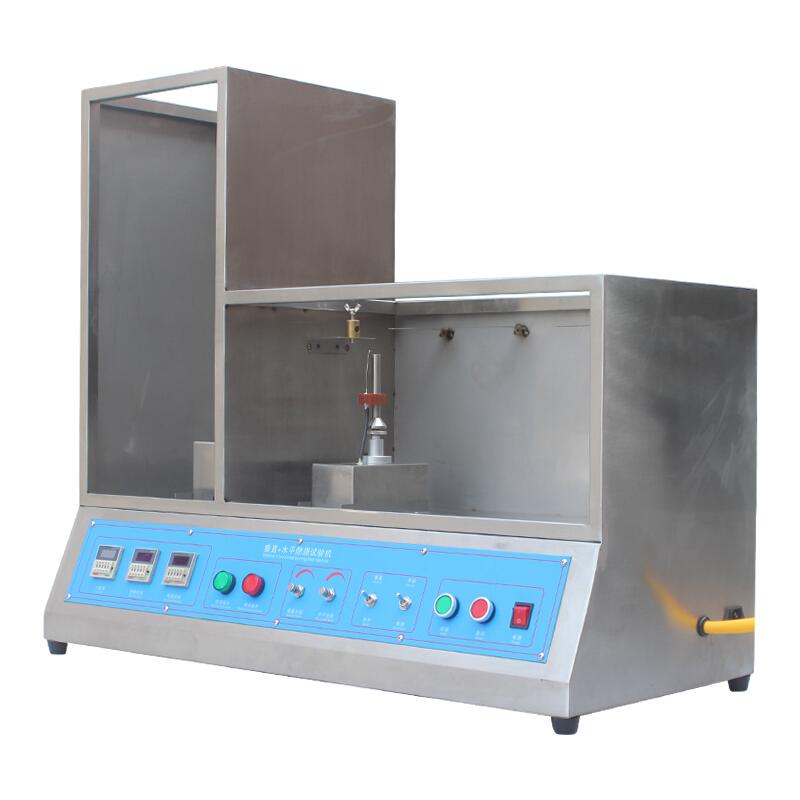

CHINA NBC-4321 Wire and cable horizontal vertical combustion testing machine, wire flame retardant Test Chamber Picture

Introduction

The vertical + horizontal combustion testing machine is suitable for combustion resistance testing of various organic materials such as wire and cable insulation coating materials, printed circuit board materials, and IC insulators. During the test, put the test piece to the top of the flame, burn it for 15 seconds, and extinguish it for 15 seconds. After repeating 5 times, check the burning condition of the test piece. The burning, extinguishing time and number of repetitions can be set, and it can be operated automatically.

Complies with standards UL1581.UL13.UL444.UL1655 VW-1 and CSA FT-1.


FAQ
QI want to test the flame retardant performance of Wire and cable, which combustion tester should I choose?
A NBC-4321 Wire and cable horizontal vertical combustion tester is specially designed for Wire and cable insulation materials, and can perform both horizontal and vertical combustion tests at the same time, in line with international standards such as UL1581.
QWhat materials can this machine test for fire performance?
A In addition to Wire and cable insulation coating materials, it is also suitable for combustion resistance testing of organic materials such as printing circuit board materials and IC insulators. By setting the combustion and extinguishing time, the flame retardant grade of the material can be accurately evaluated.
QIs it easy to operate? Can the testing process be automated?
A The machine provides manual and automatic operation modes, which can preset combustion time, extinguishing time and repeability times, and will automatically stop after reaching the set value, which greatly simplifies the test process and ensures the conformity of the results.
QI want to test the flame retardant performance of Wire and cable, which combustion tester should I choose?
A NBC-4321 Wire and cable horizontal vertical combustion testing machine This equipment has both horizontal and vertical combustion test modes, fully complies with UL1581, UL13 and other international standards, and can accurately evaluate the flame retardant grade of Wire and cable insulation materials.
QOur laboratory needs to do the UL1581 standard VW-1 test. Can this instrument meet the requirements?
A Can! NBC-4321 is specially designed according to the UL1581 standard, the combustion tank size fully meets the standard requirements, supports automated combustion-extinguishing cycle testing, and can accurately complete all the test processes required for VW-1 level certification.
QIs this combustion tester easy to operate? Can the testing process be automated?
A The operation is very convenient and supports both manual and automatic modes. You can preset the combustion time, extinguishing time and the number of repeabilities, and the device will automatically execute the test process and stop automatically after completion, which greatly improves the test efficiency and accuracy.
