CHINA NBC-4326 Plastic combustion flame retardant Test Chamber UL94 horizontal vertical combustion Tester

SE
Flame height range 20mm~ 175mm adjustable, combustion angle 20 °, 45 °, 90 ° adjustable, can evaluate the flammability of materials or foam such as: V-0, V-1, V-2, HB, HF-1, HF-2, HBF grade.
$1131.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI

Factory NBC-4326 Plastic horizontal and vertical combustion testing machineSPEC

Factory NBC-4326 Plastic horizontal and vertical combustion testing machineDetails

Factory NBC-4326 Plastic horizontal and vertical combustion testing machinePacking list

SKU
NB044591
Test space
≥ 0.5 cubic meters with Glass observation door

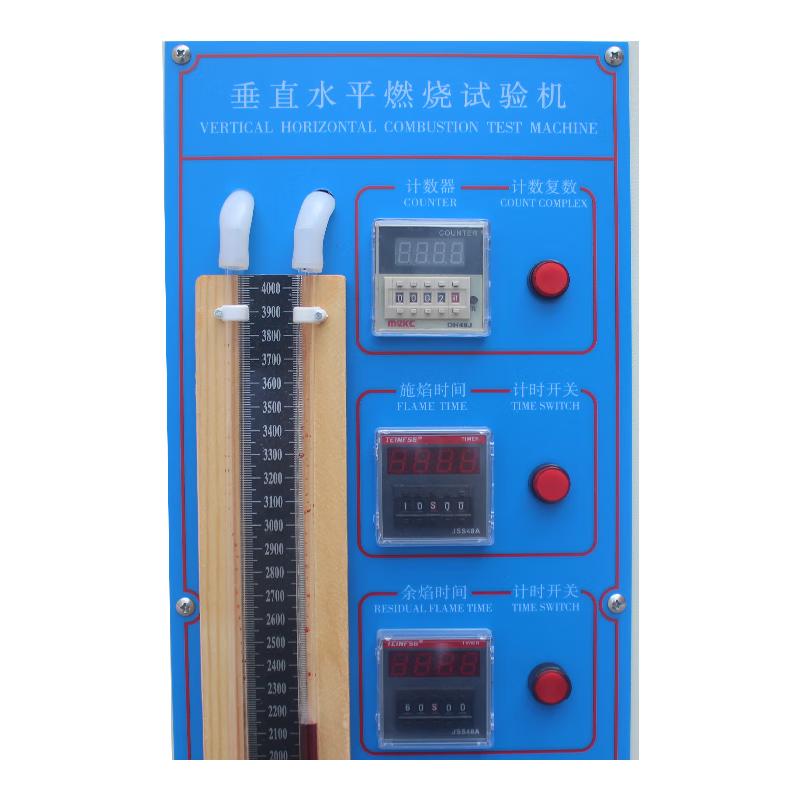

Flame time
0~99min99s can be set
afterflame time
0~99 minutes and 99 seconds can be set
afterflame time
0~99 minutes and 99 seconds can be set
Combustion angle
20 °, 45 °, 90 ° (i.e. 0 °) adjustable
Combustion size
The inner diameter of the nozzle is about 9.5mm, the effective length of the nozzle is 100mm, and there are air conditioning holes.
flame height
Adjustable from 20mm to 175mm according to standard requirements
Sample method

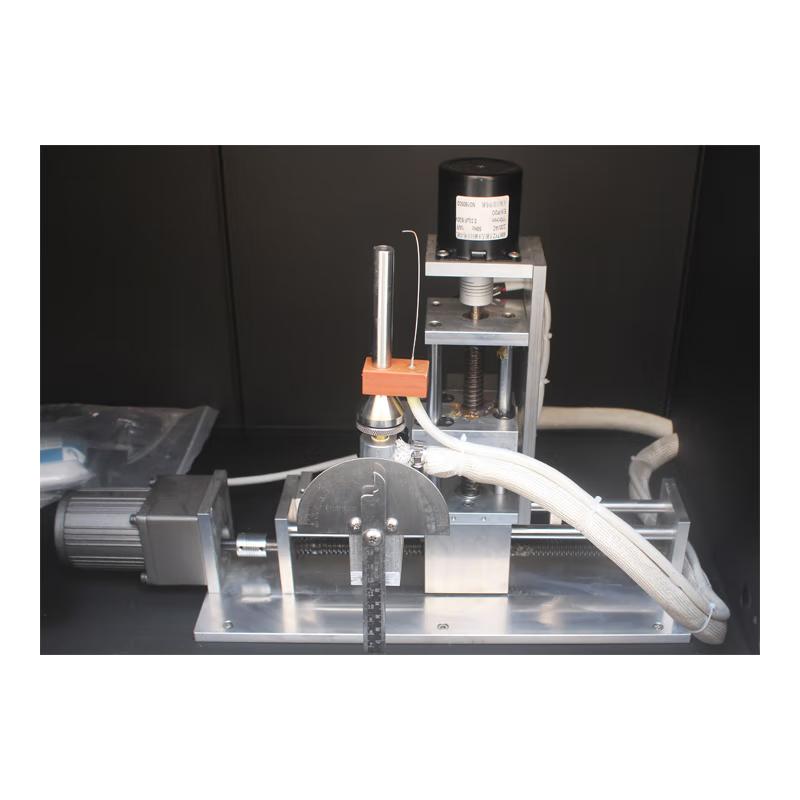

Motor drive front and rear left and right positive splines
Power
AC 220V/50H
NBC-4326
Plastic horizontal and vertical combustion testing machine
Flame height range 20mm~ 175mm adjustable, combustion angle 20 °, 45 °, 90 ° adjustable, can evaluate the flammability of materials or foam such as: V-0, V-1, V-2, HB, HF-1, HF-2, HBF grade.

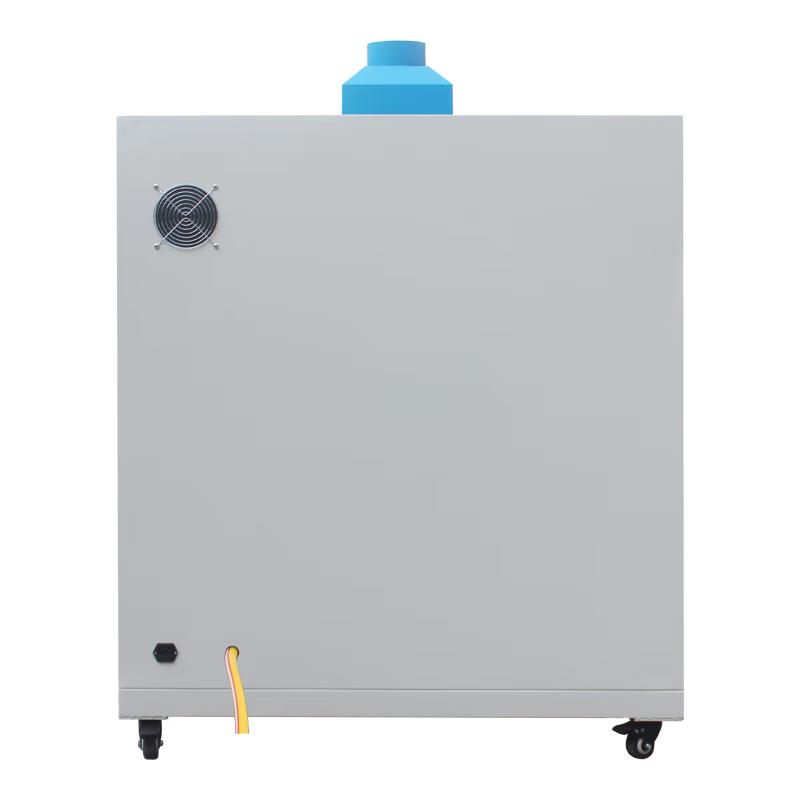

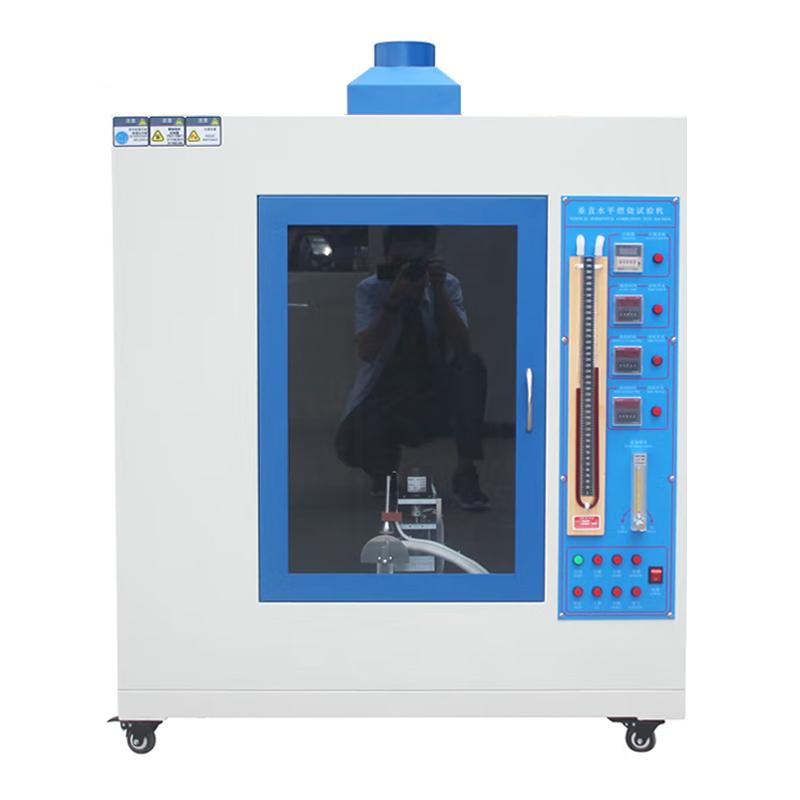

CHINA NBC-4326 Plastic combustion flame retardant Test Chamber UL94 horizontal vertical combustion Tester Picture

Introduction

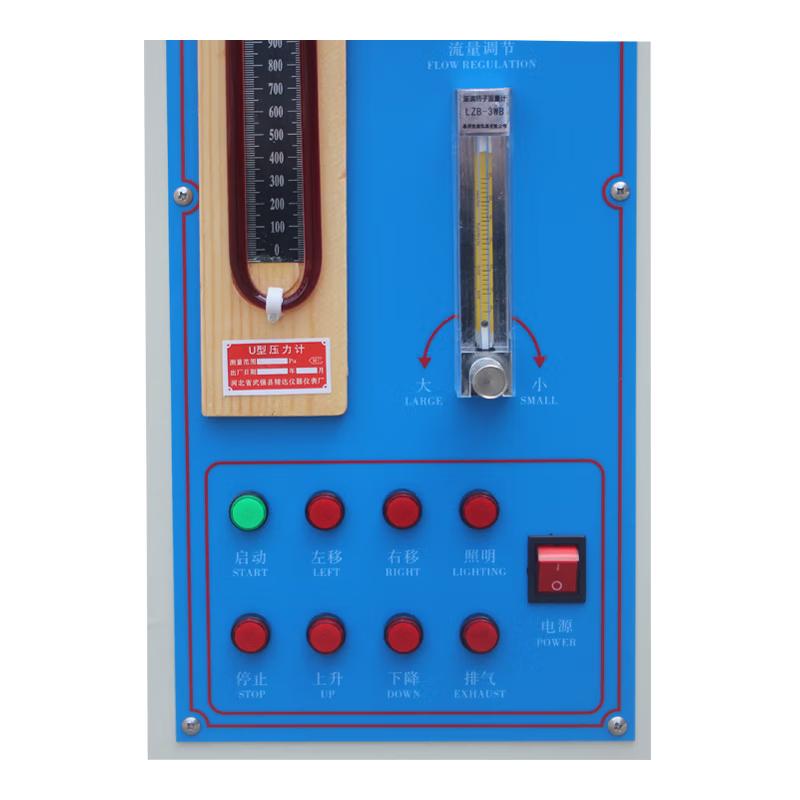

This Tester is suitable for testing and evaluating the combustion characteristics of plastic materials. It is designed and manufactured in accordance with the relevant provisions stipulated in the American UL94 standard and the GBT2408 standard "Flammability Test of Plastic Materials for Equipment and Appliance Parts". It can test the plastic parts of equipment and appliances. It conducts horizontal and vertical flammability tests and is equipped with a gas flow meter to adjust the flame size. The operation is simple and safe. This instrument can evaluate the flammability of materials or foam plastics such as: V-0, V-1, V-2, HB, HF-1, HF-2, HBF level.

Reference standards: UL94  , GBT2408

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
