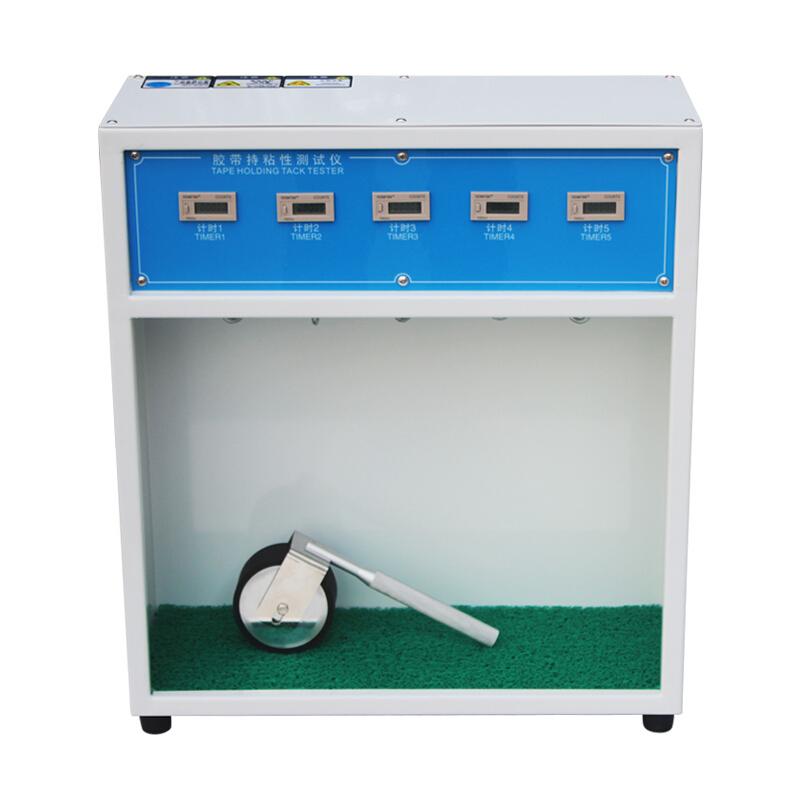

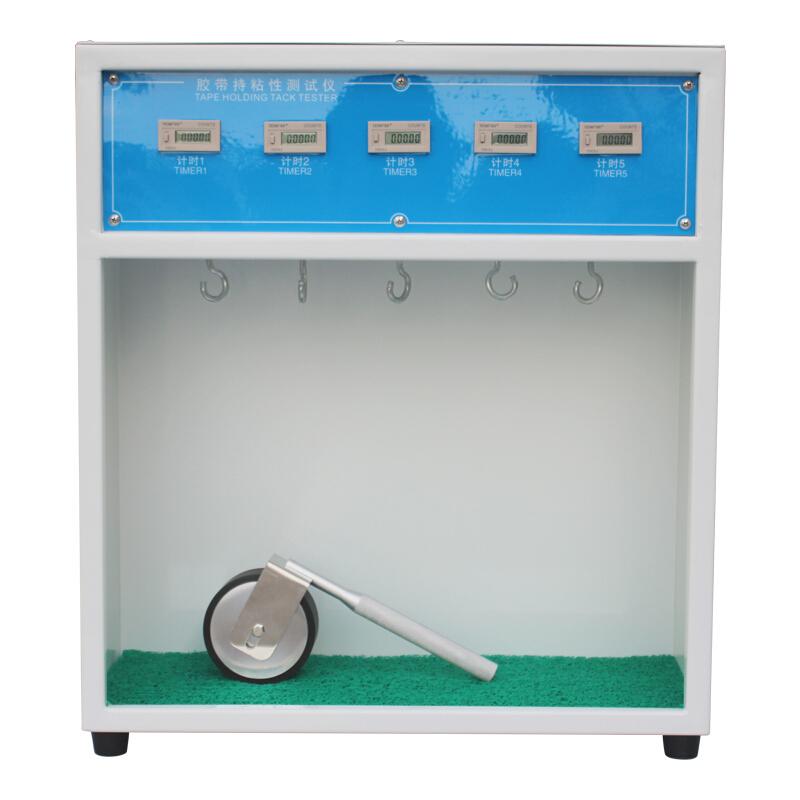

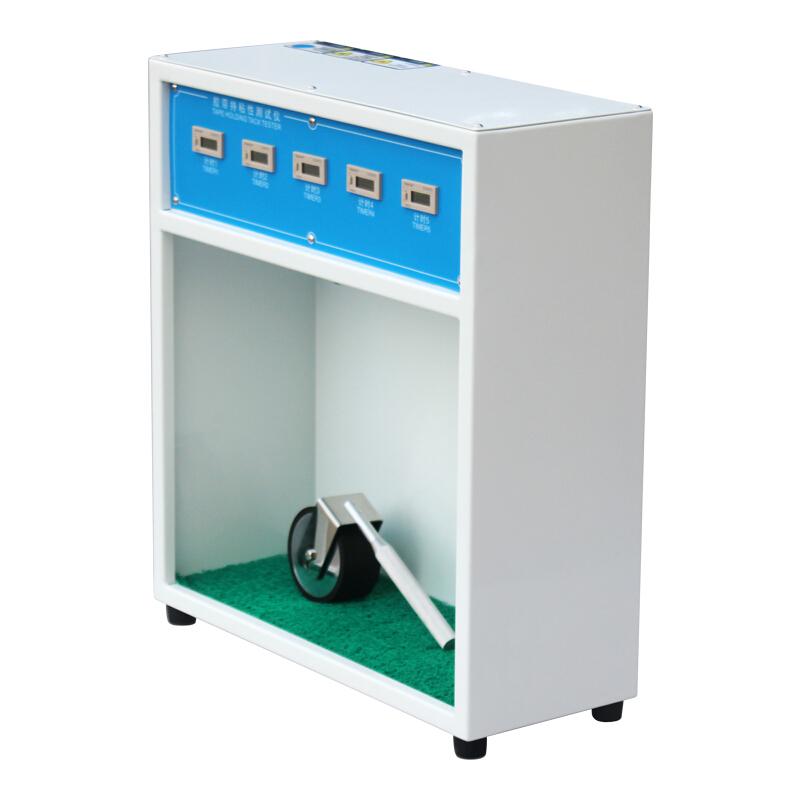

China NBC-5604 Tape holding tack tester

NBC-5604

Tape tack testing machine

5 stations, weight 1kg * 5, suitable for all kinds of tape, Adhesive, medical tape, sealing tape, labels, plaster and other products of thermostatic adhesive strength test.

Introduction

The tape holding tester is a device used to test the adhesion properties of tapes, adhesives and adhesive materials. This testing machine is commonly used to evaluate the adhesion and durability of tapes or adhesive materials under different conditions. During testing, a sample of the tape or adhesive material being tested is typically clamped between clamps and a certain amount of force is applied to peel the sample off. Testing can be conducted according to different standards and specifications to evaluate the adhesion properties of adhesive materials, including peel force, peel speed and durability.

This machine is used for the static load test of tape adhesion. Under a certain adhesion area and load, the time that the tape can withstand is tested to evaluate the durability of the tape adhesion.

Application scope

It is suitable for the tack test of various tapes, adhesives, medical tapes, sealing tapes, labels, plasters and other products.

working principle

Hang the test plate with the sample on it vertically on the test frame, and hang a weight with a specified weight at the lower end. Use the displacement of the sample to detach after a certain period of time, or the time for the sample to completely detach to characterize the tensile resistance of the adhesive tape. The ability to take off.

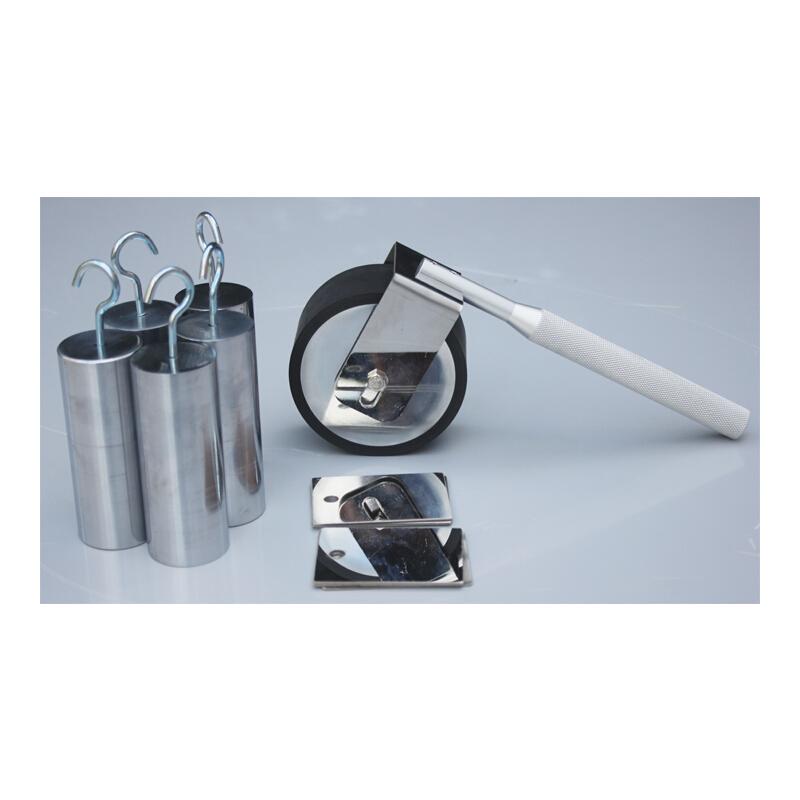

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
