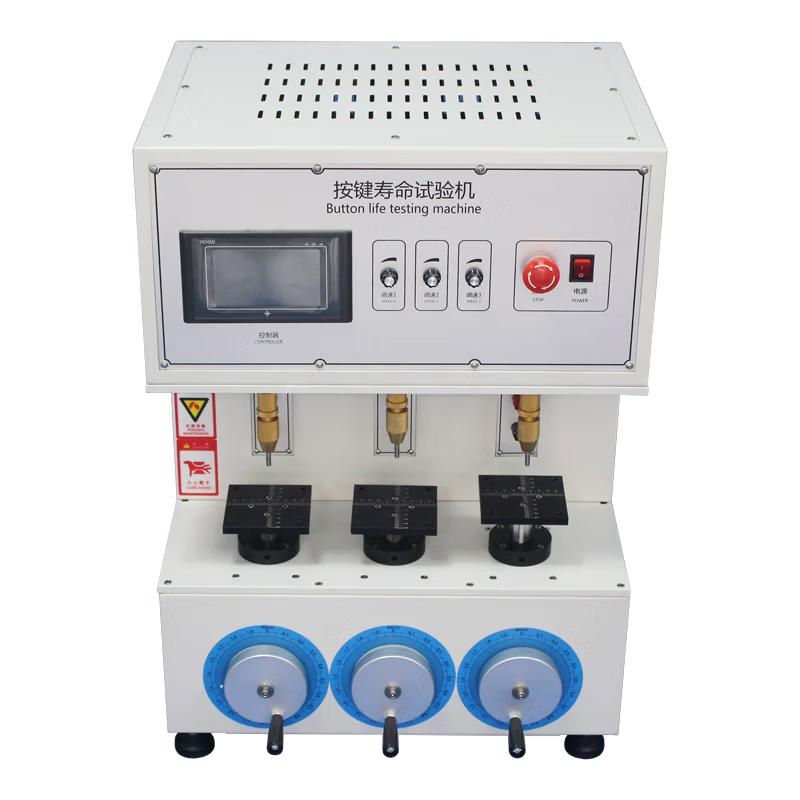

CHINA NBC-5617A three-axis button fatigue Life Cycle Tester up to 300 times in 1 minute
SETest products 3, 8-bit counter, with power-down memory function, Test speed 0-300 times/minute, hit switch touchpoint force 0-500gf adjustable.
$1596.00/set
PromotionLoading...
Coupon
Model：
NBC-5617A
Factory
Factory NBC-5617A Three-axis button Life Cycle TesterSPEC
Factory NBC-5617A Three-axis button Life Cycle TesterDetails
Factory NBC-5617A Three-axis button Life Cycle TesterPacking list
- SKU
- NB044623
- Number of products tested
- 3PCS
- Counter
- 8-Bit, power-down memory
- Power supply device
- 0-60V DC; current: 0-3A adjustable, while displaying current and Voltage values
- Test speed
- 0-300 times/minute (0-120 optional)
- Strike switch touchpoint power
- 0-500Gf adjustable
- Test head telescopic stroke
- 0-20mm
- Lifting platform travel
- 60mm
- Machine size
- sentireW500*D420*H480mm
- Machine Weight
- About 60kg
- Power
- AC220V 5A

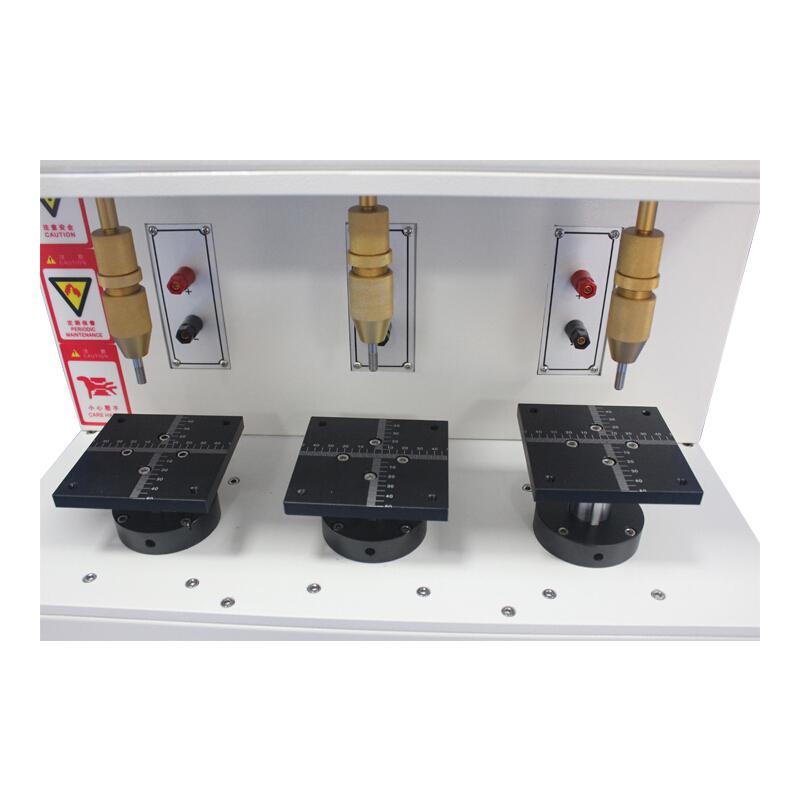

- Fixture activity range
- 50 * 50 adjustable

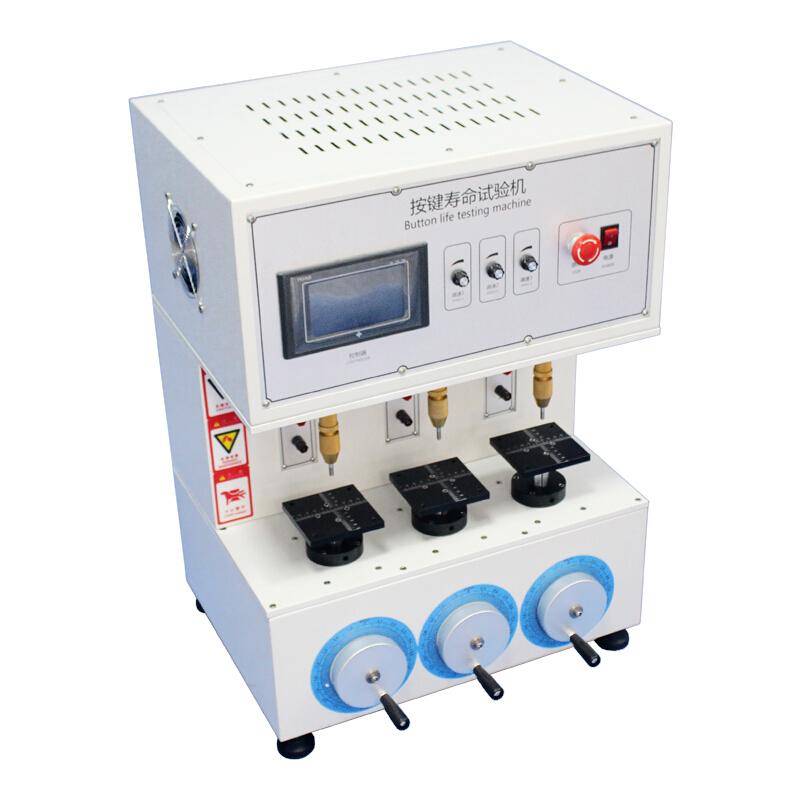

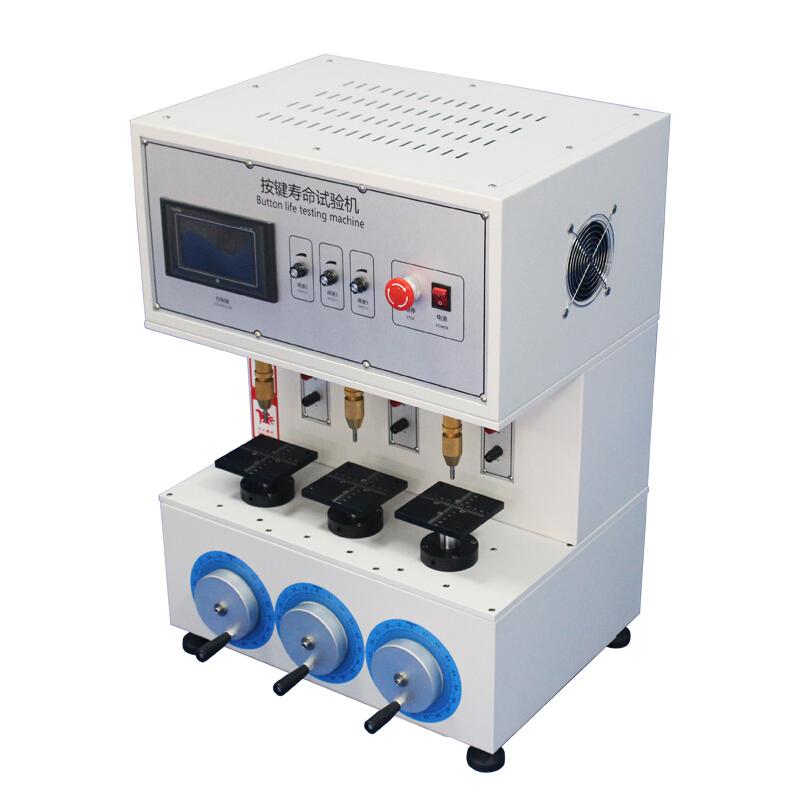

NBC-5617A
Three-axis button Life Cycle Tester
Test products 3, 8-bit counter, with power-down memory function, Test speed 0-300 times/minute, hit switch touchpoint force 0-500gf adjustable.
Introduction
This machine is suitable for the impact life aging test of key switches, computer keyboards, conductive rubber keys, metal shrapnel keys (commonly known as pots) or keys of the same type. A professional programmer is used to control the entire key life test process, and life testing can be carried out at the same time. Pain test, the button will automatically stop when the button is damaged, and the machine will stop transportation within 8 seconds when the object being tested appears to be always "conducting" or always "non-conducting" .
FAQ
QWhat types of keys is this testing machine suitable for testing?
A
The NBC-5617A is suitable for a variety of key tests, including computer keyboards, conductive rubber keys, metal shrapnel keys (pot pieces), etc. It uses adjustable strike force (0-500gf) and test head travel (0-20mm) to simulate the actual use of different keys to ensure accurate and reliable test results.
QCan the device automatically identify key failures during testing?
A
Yes. The NBC-5617A has an intelligent detection function. When the button under test is always on or not on, the machine will automatically stop running within 8 seconds. At the same time, it is equipped with an 8-bit counter and a power-down memory function to ensure that the test data is not lost.
