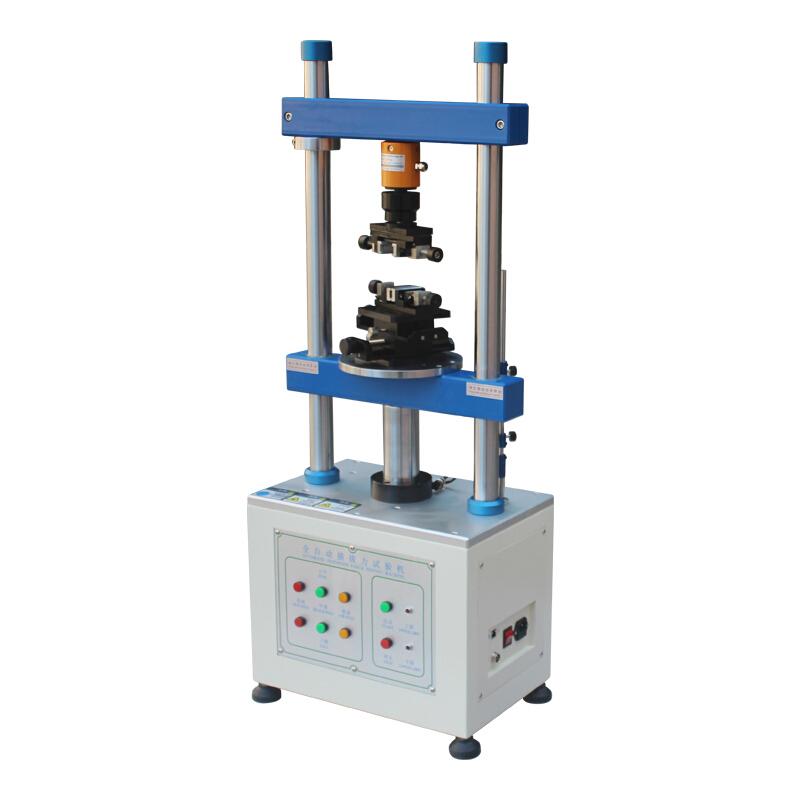

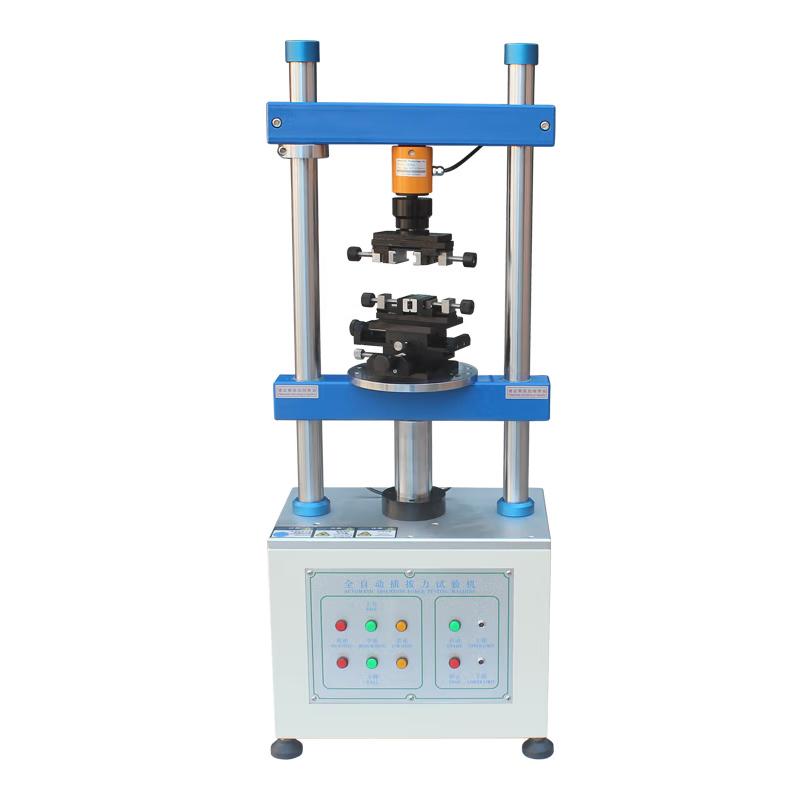

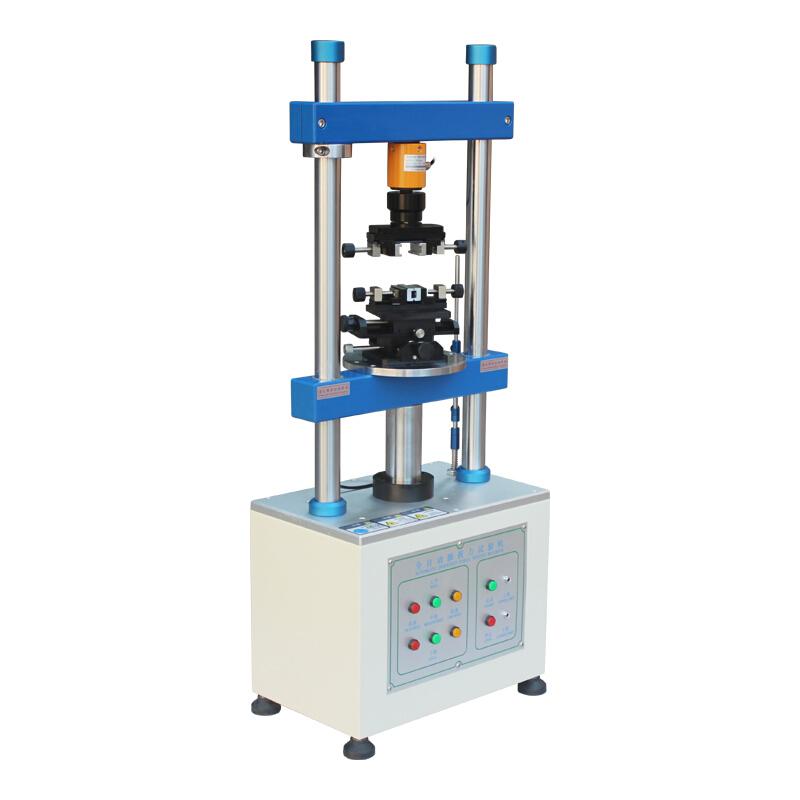

CHINA NBC-1220S Vertical Plug-in Life Tester, Terminal Harness Tester

NBC-1220S

Vertical plug-in Life Cycle Tester

With the dynamic Impedance test system, the dynamic Impedance can be tested and drawn while testing the insertion force, and can be connected to the contact Impedance machine at the same time for various compression and tensile failure strength tests.

Introduction

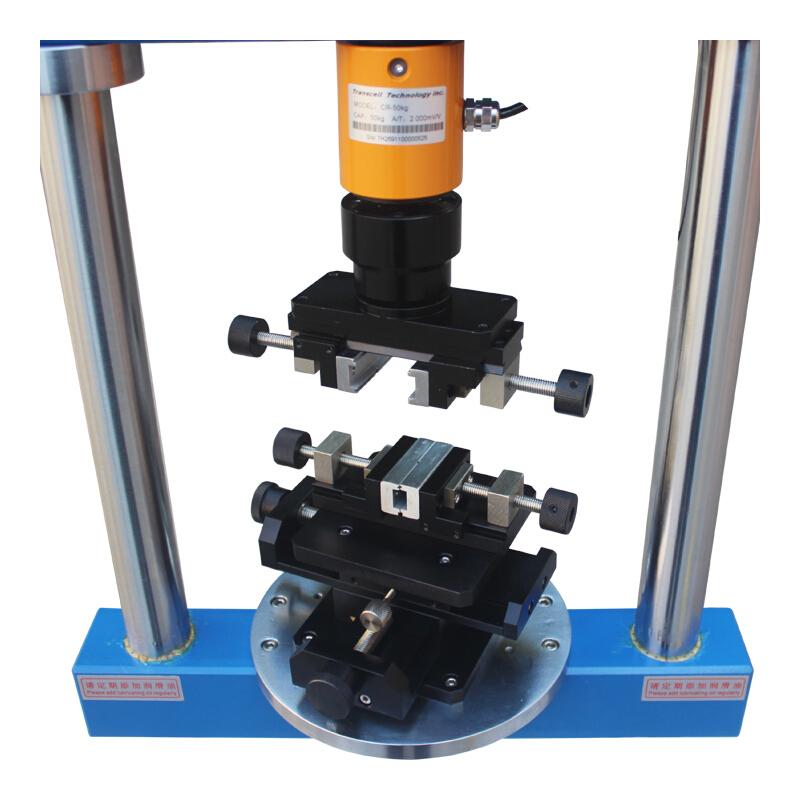

The 1220S plug-in and pull-out force testing machine is suitable for testing the plug-in and pull-out force of various connectors. With the patented automatic centering device, a completely accurate plug-in and pull-out force test can be obtained. It can be set and operated using Chinese screen of Windows. It is simple and convenient, and all data can be stored (test conditions, displacement, curves, life curves, inspection reports, etc.), solving fixture problems for various connector tests and the male and female connectors can automatically focus during testing, without any It’s a one-sided problem. With the dynamic impedance test system, the dynamic impedance can be tested and drawn (load stroke-impedance curve graph) while testing the insertion and extraction force.

• Connector single pin and plastic retention test

• Can be connected to contact impedance machine at the same time (optional)

• Various compression and tensile failure strength tests

Test items

• Connector single hole plug and pull test;

• Connector whole row plugging and unplugging test;

• Connector plugging and unplugging life test;

• Connector single PIN and plastic retention test;

• Connector normal force test (NORMAL FORCE);

• General compression and tensile failure tests;

• Can be connected to a contact impedance machine at the same time (optional).

Packing list：host X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
