CHINA NBC-XJJ-11B Digital Display Cantilever Impact Tester
SE
NBC-XJJ-11B
Factory NBC-XJJ-11B Digital Impact TesterSPEC
Factory NBC-XJJ-11B Digital Impact TesterDetails
Factory NBC-XJJ-11B Digital Impact TesterPacking list
- SKU
- NB044636
- Impact velocity
- 3.5m/s
- The distance from the center of the pendulum axis to the center of the specimen
- 327mm
- blade angle
- 75°
- Blade fillet radius
- 0.8mm
- blade rake angle
- 5°
- blade back angle
- 10°
- Specimen type and size (length x width x thickness) mm ³
- ISO180-2000 or GB/T 1843-2008: Type 1 specimen: 80 × 10 × 4; Type 2 specimen: 63.5 × 12.7 × 6.4; Type 3 specimen: 63.5 × 12.7 × 3.2
- Impact energy
- Cantilever beam 11J, 5.5J or maximum Impact energy specified by the user
- Pendulum elevation angle
- 150°
- Power
- AC 220V 50Hz
- Dimensions
- 360*240*680mm
- Net Weight
- Approx. 80kg
Introduction
The LCD digital display Izod impact testing machine is an instrument for testing the impact resistance of non-metallic materials such as hard plastics, nylon, hard rubber, and electrical insulation materials under dynamic loads. It is required by non-metallic material manufacturers and quality inspection departments. Testing instruments are also indispensable testing instruments for scientific research units to conduct research on new materials.
The XBL series digital display Izod impact testing machine can print out test results and other functions.
1. This machine adopts semi-automatic control, which is easy to operate and has high work efficiency.
2. The special LCD equipped with this machine can display real-time information.
3. Printable output.
Standards compliant
I SO180-2000 "Plastics - Determination of Izod Impact Strength of Hard Materials"
GB/T1843-2008 "Izod impact test method for rigid plastics"
JB/T8761-1998 "Plastic Izod Impact Testing Machine"
ASTM D256-2010 "Test Method for Determining Plastic IZOD Pendulum Impact Strength"

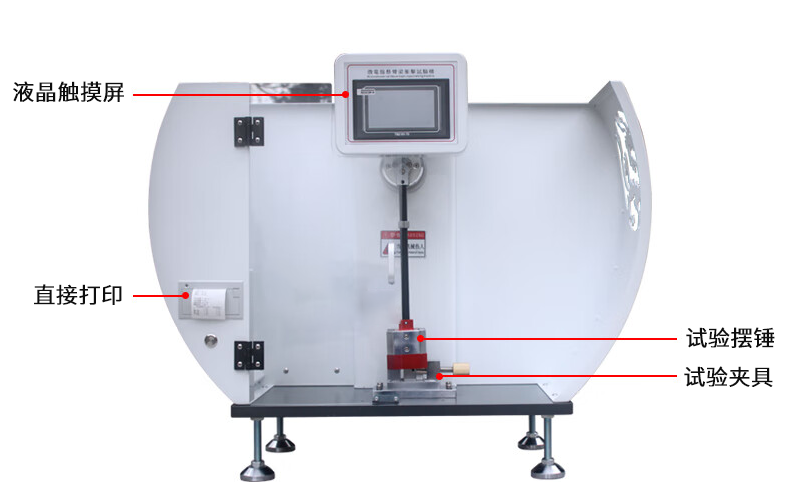

Product Structure
