CHINA NBC-5634 Cardboard Thickness Gauge, percentile 0.01mm

SE
Measurement range 0-20mm, Graduation 0.01mm optional, contact pressure 20 +/- 0.5kpa, indication accuracy +/- 0.03mm, suitable for paper, Cardboard and Miscellaneous sheet material thickness.
$434.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con CAT
Similar products

Factory NBC-5634 Cardboard thickness TesterSPEC

Factory NBC-5634 Cardboard thickness TesterDetails

Factory NBC-5634 Cardboard thickness TesterPacking list

SKU
NB044638
Measurement range
0~20mm
Contact Pressure
20±0.5kpa
Contact area
10±0.2cm²
Measurement plane parallelism
≤0.035mm
Error of indication
±0.03mm
Operating Environment
Temperature (20 +/- 10) ℃, Humidity < 85%
Resolution
0.01Mm optional
NBC-5634
Cardboard thickness Tester
Measurement range 0-20mm, Graduation 0.01mm optional, contact pressure 20 +/- 0.5kpa, indication accuracy +/- 0.03mm, suitable for paper, Cardboard and Miscellaneous sheet material thickness.

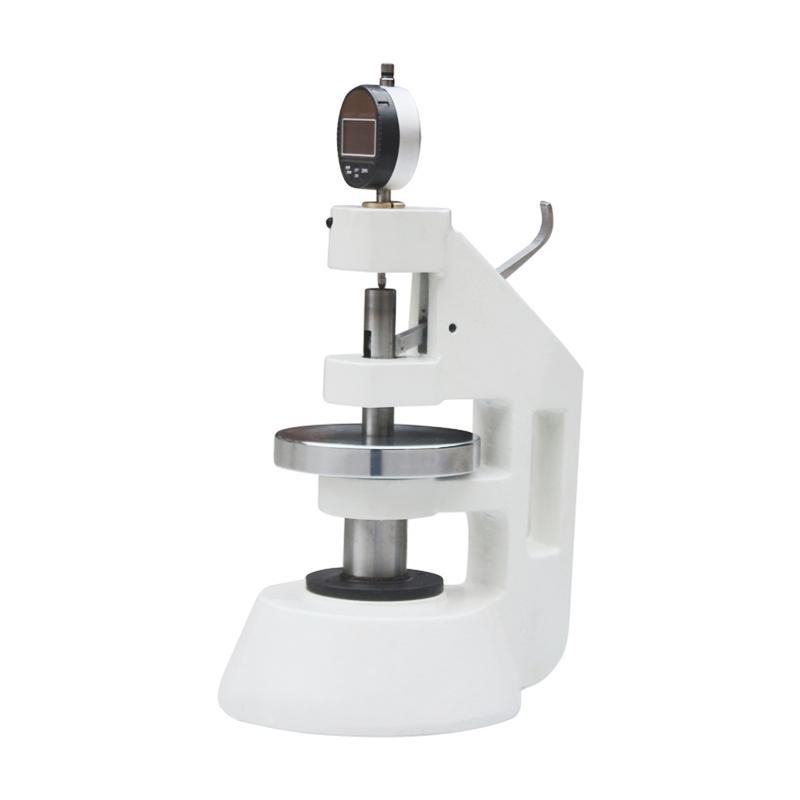

CHINA NBC-5634 Cardboard Thickness Gauge, percentile 0.01mm Picture

Introduction

The paper and cardboard thickness Tester is a special instrument for measuring the thickness of paper and cardboard. Its main technical indicators and performance parameters comply with the relevant provisions of GB4513 "Preparation for Thickness Gauges of Paper and Paperboard" and can be widely used in paper, cardboard and Thickness of other sheet materials.

Product Structure

Chinese brand NBC-5634 cardboard thickness Tester details picture 1

Standards compliant

QB/T 1035 "Paper and cardboard thickness measuring instrument";

QB/T 451.3 "Method for determination of thickness of paper and cardboard";

QB/T 1055 "Paper and cardboard thickness measuring instrument";

ISO 438 "Paper - Determination of lamination thickness and tightness".

ISO 534 "Paper and paperboard - Determination of single layer thickness and method of calculation of paperboard tightness";


FAQ
QOur factory mainly measures the thickness of Cardboard, is there any recommended instrument?
A Recommended NBC-5634 Cardboard thickness tester, it is designed for Cardboard, Measurement range 0-20mm, contact pressure 20 +/- 0.5kpa, fully comply with Cardboard thickness detection standards, can ensure Measurement accuracy and Stability.
QWhat daily testing scenarios is this instrument suitable for?
A It is widely used for thickness detection of paper, Cardboard and sheet materials, such as Cardboard tightness calculation by Quality control department, production online thickness monitoring, because it complies with ISO 534 and GB4513 standards to ensure that the data is authoritative and reliable.
