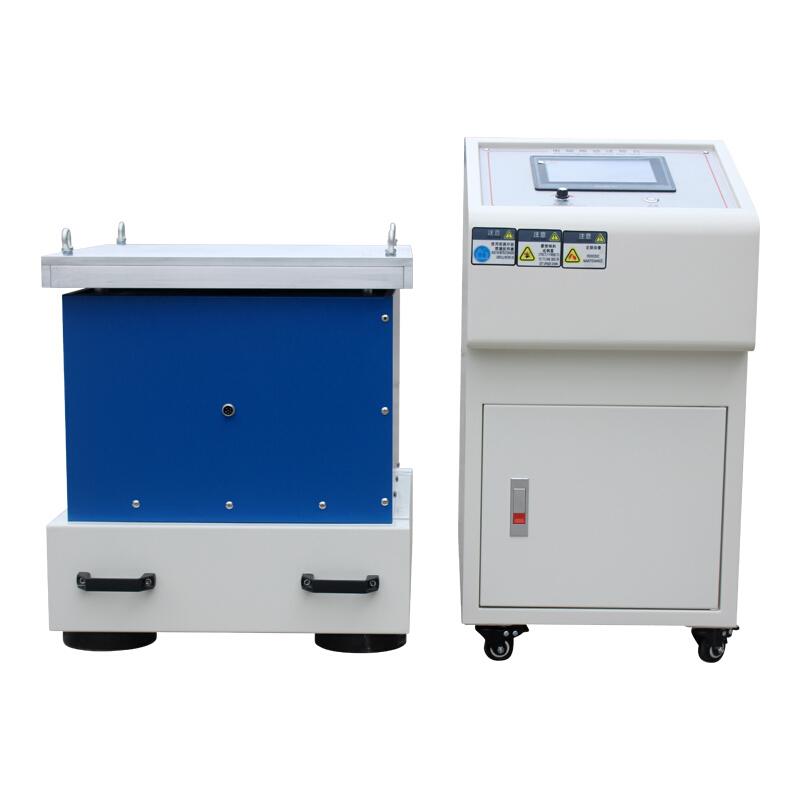

CHINA NBC-6S-75 Electrodynamic Shaker Six Degrees Integrated Vibration Tester

With vertical + horizontal + front and rear automatic switching, you can run different Frequency vibration directions at the same time, with Linear dispersion display function, you can view Frequency waveform changes at any time, Frequency can be displayed to 0.1HZ, precision 0.1HZ, Test Platform size is 750 * 750mm, Maximum Acceleration 10G.

$5193.00/set

PromotionLoading...

Coupon

Model：

NBC-6S-75

Factory

Contact

Details SPEC Con VIDEO CAT

Factory NBC-6S-75 Electrodynamic Shaker Six Degrees IntegratedSPEC

Factory NBC-6S-75 Electrodynamic Shaker Six Degrees IntegratedDetails

Factory NBC-6S-75 Electrodynamic Shaker Six Degrees IntegratedPacking list

SKU: NB044664

Test direction: Vertical + Horizontal + Front and Back (automatic switching, can run different Frequency vibration directions at the same time)

Maximum test Weight: 0-60kg

Platform size: 750*750mm

Control mode: PLC touch screen type (the screen directly displays Linear dispersion diagram, with USB interface can directly store data)

Frequency adjustment range: 1-600HZ

Precision: Frequency can be displayed to 0.1HZ, precision 0.1HZ

Amplitude: 0~5Mm (random type)

vibration waveform: sine wave

Maximum Acceleration: 10G

function: Sweep frequency, fixed frequency, programmable, time control

Frequency doubling function (0.01Hz): 8 segments multiply increase ① low to high frequency ② high to low frequency ③ low to high and then to low frequency/recyclable

Logarithmic function (0.01Hz): ① down to the upper frequency ② up to the lower frequency ③ down to the upper frequency and then to the lower frequency --3 modes logarithmic/recyclable

Power: AC220V 50HZ

NBC-6S-75

Electrodynamic Shaker Six Degrees Integrated

Introduction

Electromagnetic vibration tables are widely used in national defense, aviation, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used to detect early faults, simulate actual Operating Conditions for assessment and structural strength testing. The product has a wide range of applications, wide applicability, and effective and reliable test results. Sine wave, frequency modulation, time control.

Features

1. Adopt professional and simple operating technology, fixed frequency, sweep frequency, and program switching at any time

2. With time timing and countdown display functions

3. Touch controller is simple and convenient to operate, which solves the disadvantage of inconvenient operation of digital display.

4. Control parameters are displayed synchronously in real time without manual intervention.

5. The base of the machine adopts a vibration isolation device, which is easy to install and runs smoothly. There is no need to install anchor screws.

6. Built-in amplitude prediction program and easy amplitude modulation

7. Four points are synchronously excited, and the table vibrates evenly

8. Stepless adjustment of amplitude, fixed frequency and frequency sweep operation functions adapt to various test requirements of different industries.

9. Add an anti-interference circuit to solve the problem of interference to the control circuit caused by strong electromagnetic fields.

10. Curve display function, you can check the frequency waveform changes at any time

11. Curves support direct export function

12. Automatic switching of working direction

13. Vibration modes in different running directions can work simultaneously

FAQ

QOur factory needs to do vibration testing of electronic products. Which Shaker Table is suitable?

A Recommended NBC-6S-75 electromagnetic Shaker Table, it supports automatic switching in vertical, horizontal and front and rear directions, and can simulate the multi-directional vibration environment of electronic products during transportation and use. PLC touch screen control, simple operation, and can directly view and export test Linear dispersion, suitable for Reliability testing of electronic products.

QWhat equipment is good for vibration testing of automotive parts?

A This NBC-6S-75 Electromagnetic vibration table is suitable for automotive parts testing. It has a maximum load of 60kg and a Frequency range of 1-600Hz, which can simulate the vibration conditions of actual road conditions. Four-point synchronous vibration ensures uniform vibration of the table, supports frequency sweep and fixed frequency modes, and can effectively detect early failures of parts.

QWhat should be paid attention to in the function selection of Shaker Table?

A Selection focuses on multi-directional vibration capability and control accuracy. NBC-6S-75 supports six-degree integrated vibration, automatic switching direction; Frequency accuracy up to 0.1Hz, stepless adjustable amplitude. It also has time control and programming functions to meet the testing needs of different industries, and the operation is also very convenient.

QOur factory needs to do the structural strength test of electronic products. Do you have any recommended Shaker Table?

A The NBC-6S-75 electromagnetic Shaker Table adopts four-point synchronous vibration excitation technology, and the table vibrates evenly, which can effectively simulate the actual working conditions to assess the structural strength. Support sine wave vibration and 0~ 60kg load, especially suitable for Reliability testing of electronic products.

QIs it easy to operate when doing a sweep test?

A Convenient! Adopt PLC touch screen control, directly display real-time Linear dispersion diagram, support 8-segment frequency doubling and 3 logarithmic sweep modes. Just select the sweep mode on the touch screen, the system will automatically complete the scanning process from low frequency to high frequency, and the data can be directly exported through USB. "
