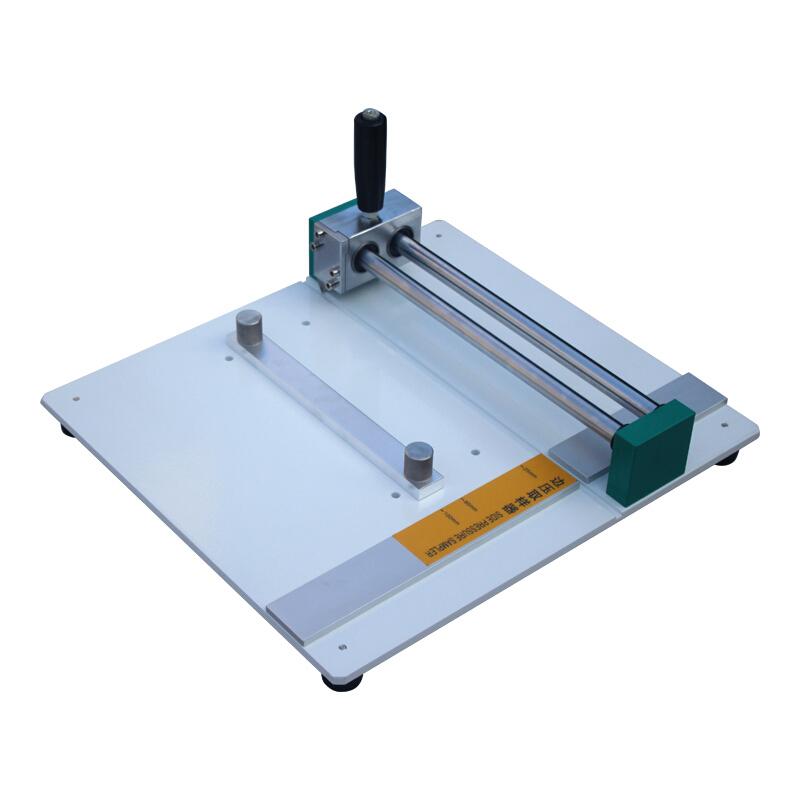

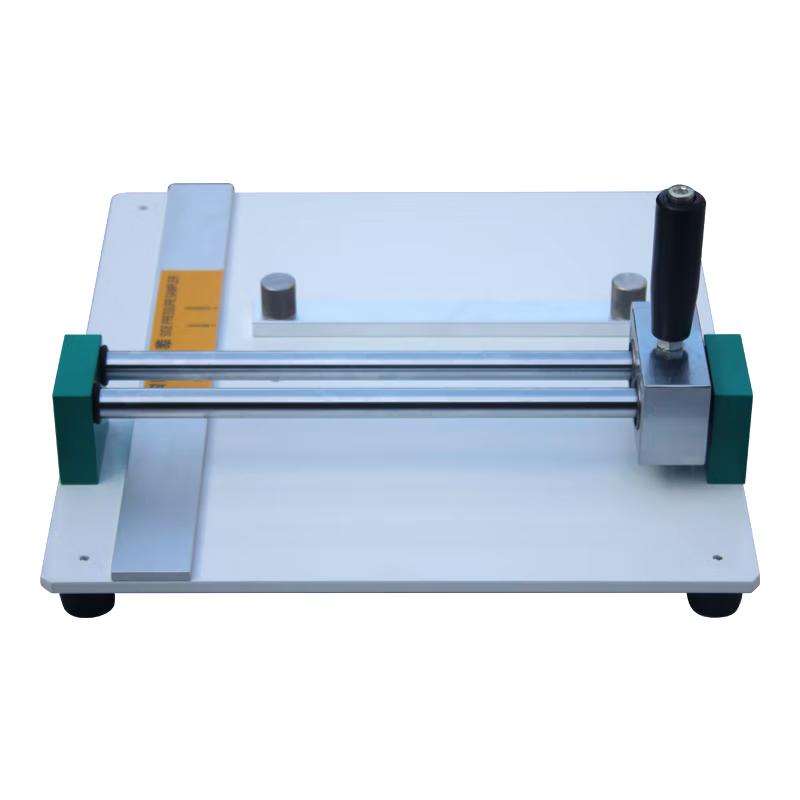

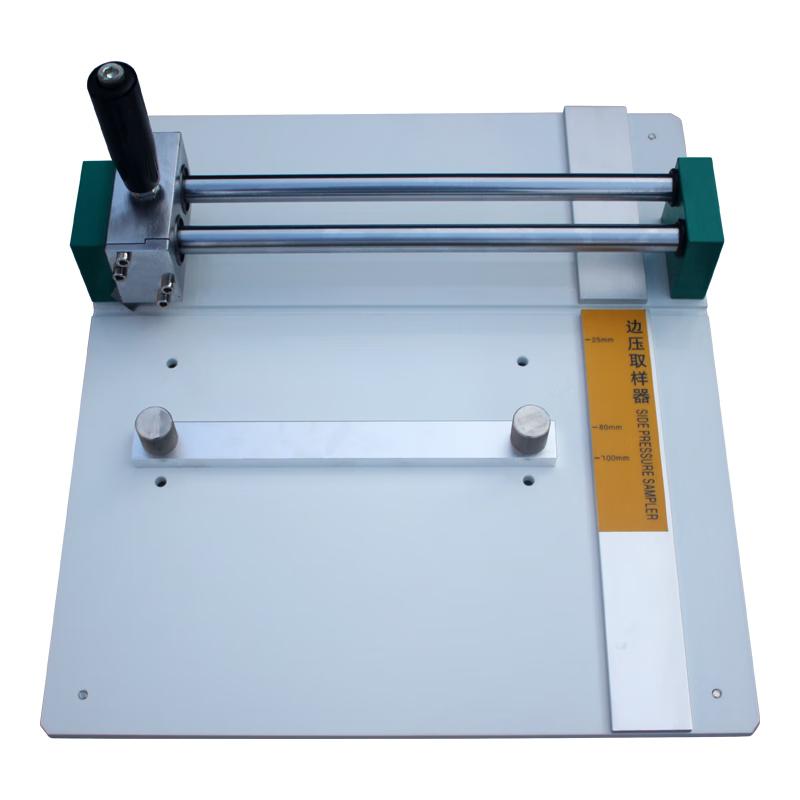

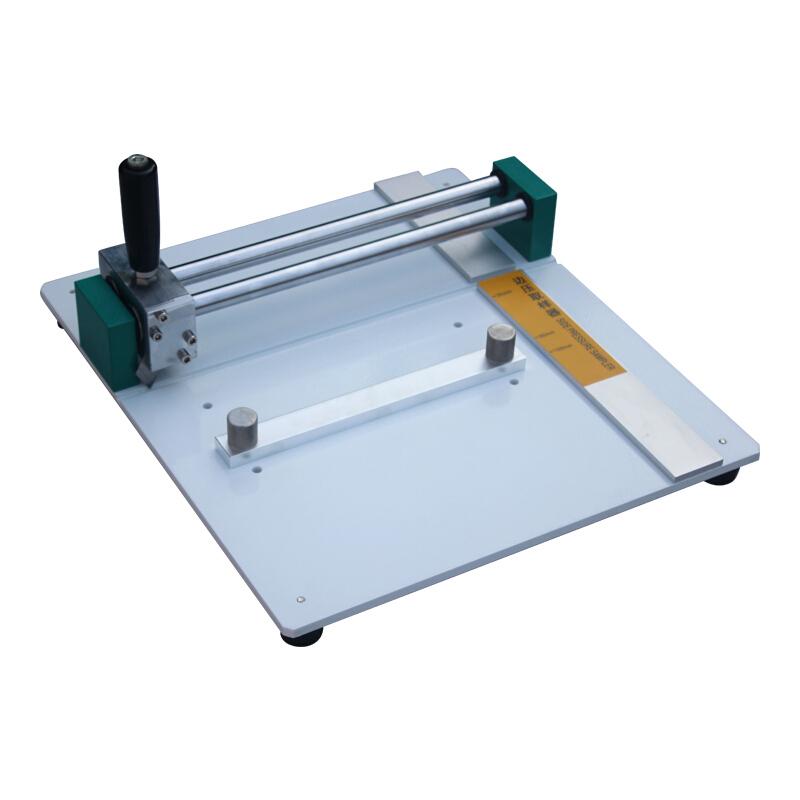

CHINA NBC-8503B Corrugated Sampler paper Cardboard edge press knife

NBC-8503B

Side Pressure Sampler

Sampling size 25 * 100mm (edge pressing sample)/25 * 80mm, sampling size error +/- 0.5mm, sampling length 220mm, sampling thickness range 18mm, adjustable spacing 25, 80, 100mm

Introduction

The edge pressure sampler is a special sampling device required for the edge pressure strength test and bonding strength test of corrugated cardboard. It can quickly and accurately cut the standard test size. It is a satisfactory assistant for corrugated cardboard and carton production, scientific research and quality supervision and inspection departments. Test equipment.

Features

• Able to cut samples with precise parallelism, with markings on them, and the parallel spacing can be set;

• It adopts imported sliding rails and works closely with blades imported from Japan to easily cut out multi-layer cardboard samples;

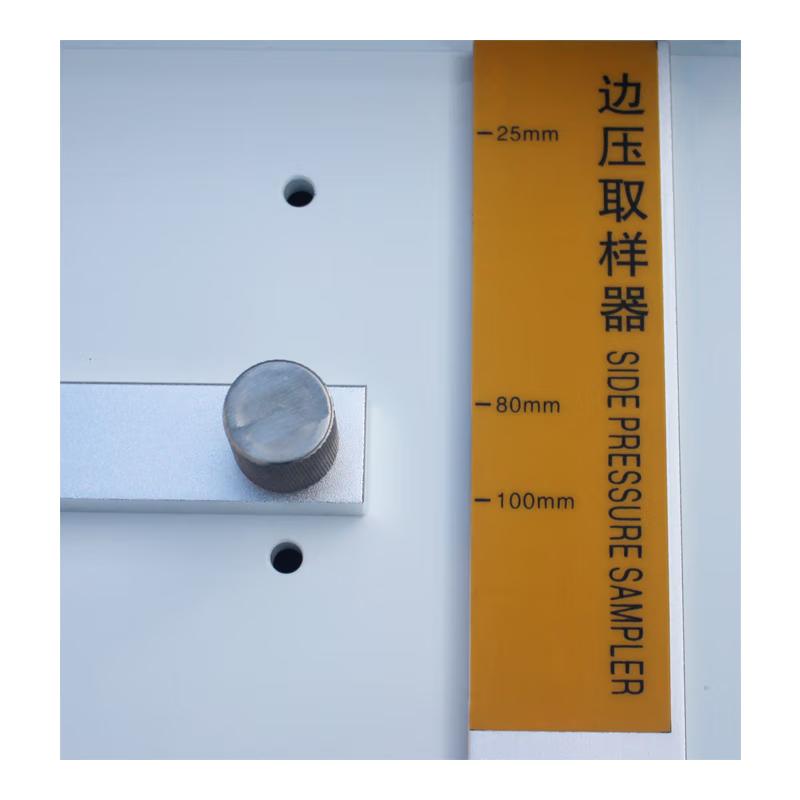

• The scale is laser engraved, the scale is clear, durable and easy to clean;

• Using strong magnets, the blade is easier to install.

Precautions

1. The cutting direction needs to be parallel or perpendicular to the direction of corrugation, and the test specimen must not be loose during the cutting process;

2. After each cut, pull the handle back to the position to be cut;

3. It is strictly forbidden to put your hands in the cutting position to prevent injury;

4. If the cut of the cut specimen is seriously curled or deflected, the blade should be replaced. The blade used can be any commercially available blade of the same type (replacement method: loosen the screw on the blade holder assembly, remove the old blade, replace it with a new blade, adjust the blade position and angle, and tighten the screw);

5. When not in use for a long time, the blades, guide posts, etc. should be coated with anti-rust oil and covered with dust-proof covers;

6. The guide sleeve components and guide posts should always be filled with a small amount of lubricating oil.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
