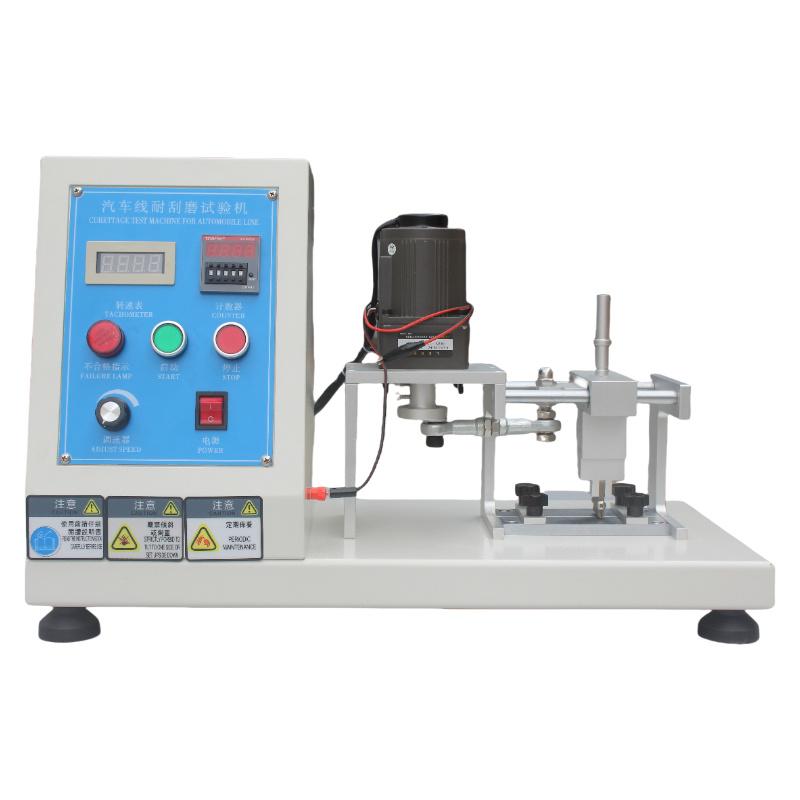

CHINA NBC-4325 Automotive Wire Scratch Tester, Scratch Tester
SEThe diameter of the scraping needle is 0.45mm, the material meets the requirements of GB/T4358, the scraping speed is adjustable from 10 to 60 times/minute (one back and forth movement is once), and it has a self-determined stop function. When the scraping needle wears through the insulation and contacts the conductor, it will automatically stop.
$1131.00/set
PromotionLoading...
Coupon
Model：
NBC-4325
Factory
Factory NBC-4325 Automotive wire scratch resistance TesterSPEC

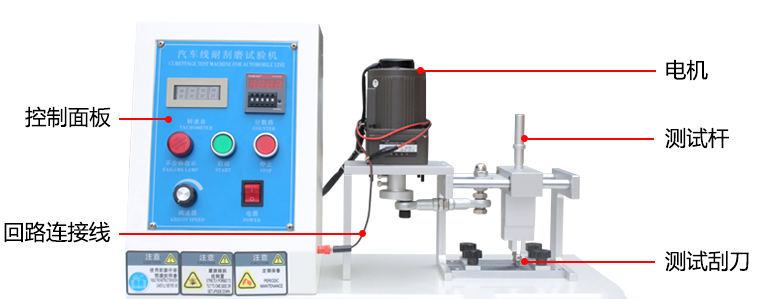

Factory NBC-4325 Automotive wire scratch resistance TesterDetails
Factory NBC-4325 Automotive wire scratch resistance TesterPacking list
- SKU
- NB044679
- Scraper needle (QC/T730 standard)
- Diameter 0.45mm, material meets GB/T4358 requirements
- 刮刀Diameter（ISO6722、JB/T8139、JASO D 611、DIN72551、VW60306）
- 0.125mm
- Scraper stroke
- 10~20Mm adjustable
- Scrape length
- 15.5mm
- Scraping speed
- 10~60 times/minute adjustable (one move back and forth for one time)
- Scrape Weight
- 500G, 700g, 1000g each
- Custom stop function
- When the scraper needle wears through the insulation and comes into contact with the conductor, the machine will automatically stop
NBC-4325
Automotive wire scratch resistance Tester
The diameter of the scraping needle is 0.45mm, the material meets the requirements of GB/T4358, the scraping speed is adjustable from 10 to 60 times/minute (one back and forth movement is once), and it has a self-determined stop function. When the scraping needle wears through the insulation and contacts the conductor, it will automatically stop.
Introduction
The automobile wire scratch resistance testing machine is a device for scratching the insulation surface of automobile wires. The machine scrapes the insulation surface reciprocally along the axial direction of the sample, and stops automatically when the scraper needle wears through the insulation and contacts the conductor.
This machine complies with ISO6722, QC/T730, JB/T8139, JASO D611, DIN72551, VW60306 and other test standards.
FAQ
QI want to test the scratch resistance of automotive wires, what instrument should I choose?
A
The NBC-4325 automotive wire abrasion tester is used to simulate the scene of scraping the insulating surface of the wire, and can automatically detect that the scraper needle stops when it penetrates the insulating layer, which fully meets the requirements of the automotive industry standard.
QWhat test scenarios is this testing machine suitable for?
A
It is widely used in automotive wire mass testing, such as verifying the abrasion resistance of insulating layers. Because it conforms to ISO6722, QC/T730 and other mainstream standards, it can ensure that the wire remains insulated safely in the vibration and friction environment of the vehicle.
