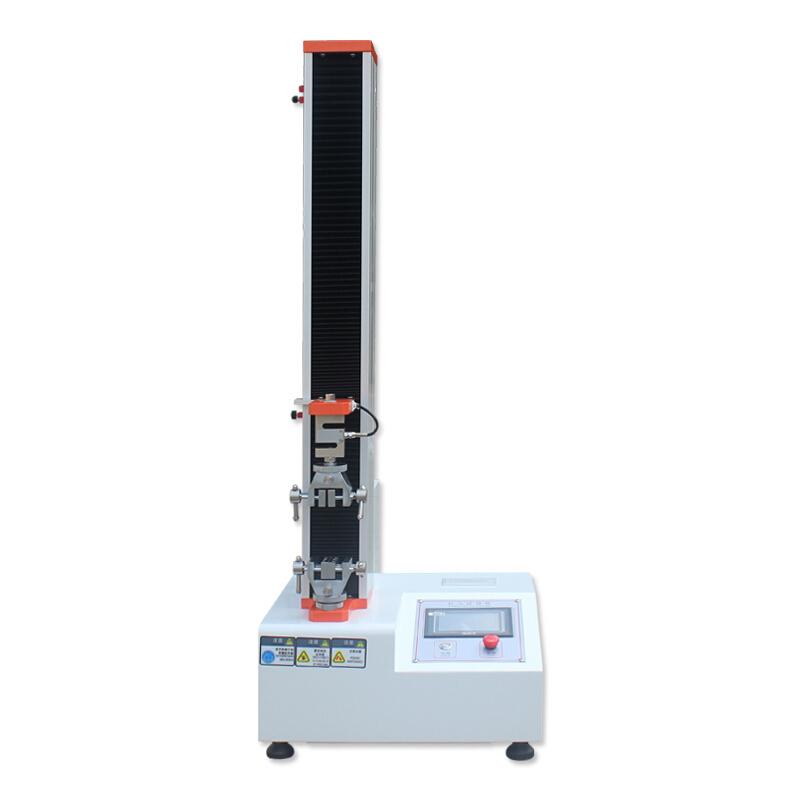

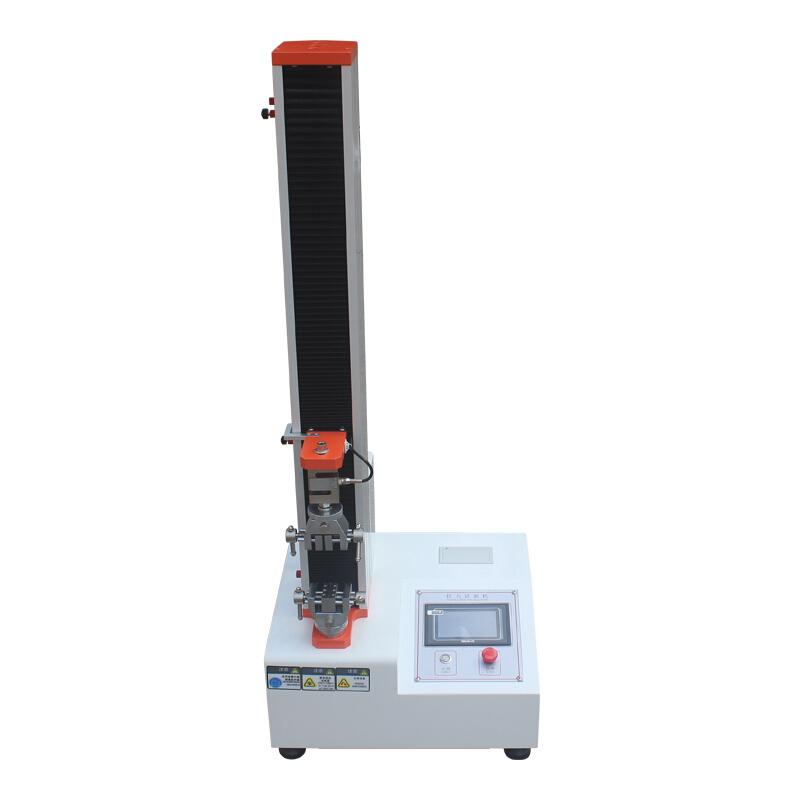

CHINA NBC-6820 Ring type initial tacking machine Tensile Tester

NBC-6820

Ring initial tack testing machine

The ring initial tack Tester is compact and delicate in structure, using imported Sensors and motors, and is mainly used for the initial adhesion of various products such as tapes and gluing agents.

Scope of use

The circular initial adhesion testing machine has a compact and exquisite structure and uses imported sensors and motors. It is mainly used for the initial adhesion of various tapes, adhesives and other products. The ring initial tack testing machine meets international standards such as FINAT (FINAT Test Method NO. 9: Loop tack measurement), PSTC-16 LOOP TACK, ASTM D6195-03standard test methods for Loop Tack, etc., and is suitable for research institutions, adhesive import and export enterprises, inspection and quarantine Institutions etc.

Test principle

The ring initial tack testing machine is to completely contact the ring sample with the standard float test test plate at a constant speed of 300mm/min, and then the instrument automatically reverses the direction to completely separate the ring sample and the test plate at a constant speed of 300mm/min. The maximum force generated is the annular initial tack force of the tested sample.

Packing list：whole machine X1, ring initial tack fixture x1, computer software x1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
