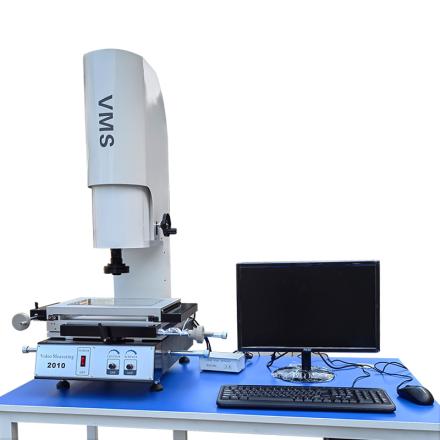

Specifications
| X/Y itinerary | 400×300mm |
| Z-axis lift | 150mm |
| Glass table | 460×360mm |
| Product Structure | Base, column, mobile workbench are made of high-precision granite |
| lighting system | Light source and transmission Light source with LED, adjustable luminance |
| CCD camera | 1/3 high-definition color CCD camera (Miscellaneous brand can also be selected as required) |
| magnification | Step Zoom Optical inspection magnification: 0.7~ 4.5X, image magnification: 30~225X |
| Measurement Accuracy | （3+L/200）μm |
| resolution | 0.001mm |
| Repeatability | 0.002mm |
| Operation mode | manual operation |
| Power | 220V(AC) / 50HZ |
| Recommended environment | Temperature: 19~ 24 ℃, Humidity: 45%~ 75% |
| Optional accessories | Z-axis image altimetry or optional British Reishaw probe contact measurement |
Packing list
Imager host X1, dedicated industrial control computer X1, genuine software X2, axis grating ruler X1, linear guide X1, freeze frame fixed lens X1, high definition CCD camera X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/44693/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
