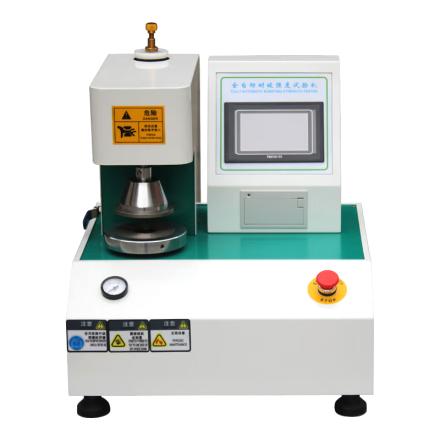

Factory NBC-8502B Automatic breaking Strength Tester (breaking machine touch screen model) Specifications
Search
Brand：Factory
Model：NBC-8502B
Name：Automatic breaking Strength Tester (breaking machine touch screen model)
Specifications
| Measurement range | Cardboard: 250~5600 KPa; paper: 50~1600 KPa |
| Clamping Force | Cardboard: > 400 KPa; paper: > 390KPa |
| Resolution | 0.1kPa |
| Indication Accuracy | ≤±1 %F.S |
| Oil delivery speed | 175 +/- 5mL/min (Cardboard); 95 +/- 5mL/min (paper) |
| Motor specifications | Cardboard: 120W; paper: 90W |
| Film Resistance - Cardboard | When the bulge is 10 mm +/- 0.2 mm, the pressure is 170~220 KPa; when the bulge is 18 mm +/- 0.2 mm, the pressure is 250~350 KPa |
| Film resistance - paper | Pressure of 30 +/- 5 KPa at 9 mm +/- 0.2 mm |
| Room temperature | 20℃±10℃ |
| Power | AC220V +/- 22V, 50HZ, maximum current 1A, the Power should be reliably grounded |
| Relative Humidity | <85% |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/44708/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
