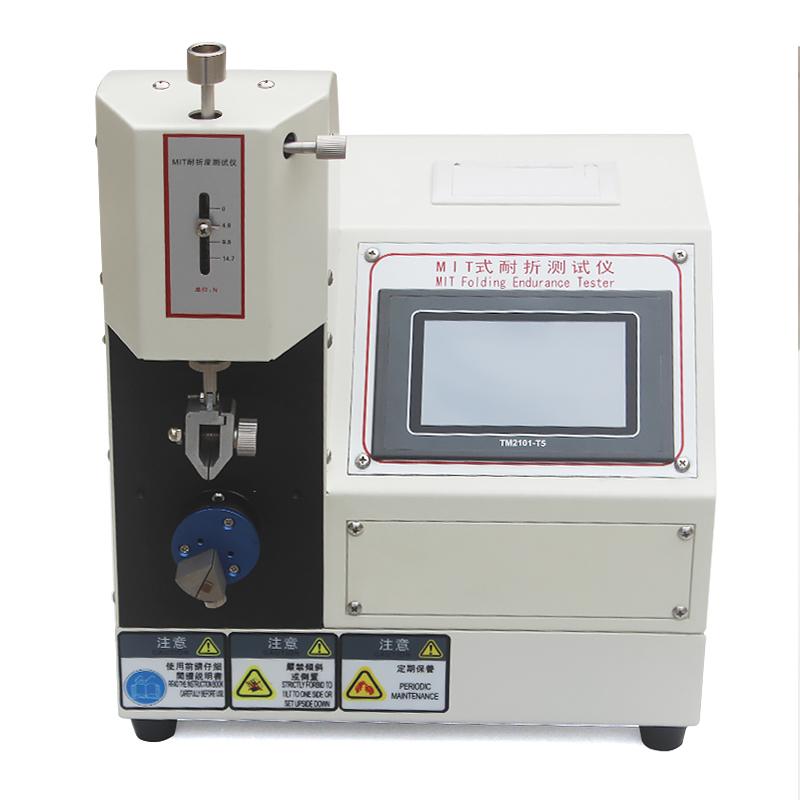

CHINA NBC-5632 MIT type folding Tester Paper Folding Endurance Tester

SE
Test load 4.91N, 9.81N, 14.72N; bending angle 135 ° +/- 2 °; sample size 15mm wide, about 250mm long, specially test the bending strength of paper and Cardboard
$1409.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con
Similar products

Factory NBC-5632 MIT type refractory TesterSPEC

Factory NBC-5632 MIT type refractory TesterDetails

Factory NBC-5632 MIT type refractory TesterPacking list

SKU
NB044710
test load
4.91N，9.81N，14.72N
Bending angle
135°±2°
Specimen size
Width 15mm, length about 250mm (for reference)
Width of upper chuck
19±1mm
Arc radius of the fold
0.38±0.02mm
The distance between the cracks of the folding head
max1.0mm
Counter
0~9999 times
exterior size
(W*D*H)330*365*460mm
Control mode
Touch screen operation
Weight
About 30kg
Power
AC220V
NBC-5632
MIT type refractory Tester
Test load 4.91N, 9.81N, 14.72N; bending angle 135 ° +/- 2 °; sample size 15mm wide, about 250mm long, specially test the bending strength of paper and Cardboard

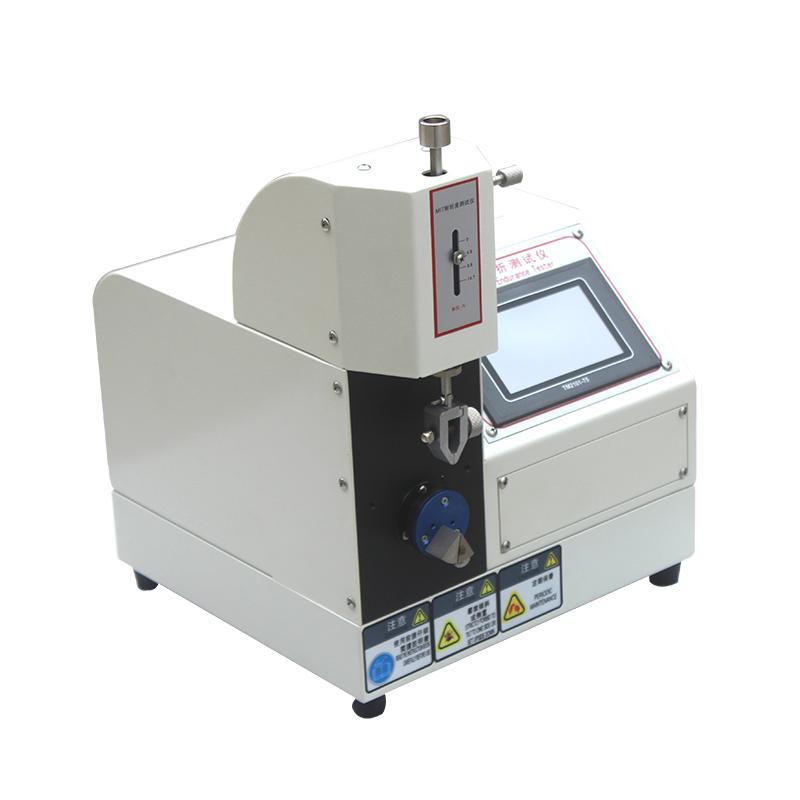

CHINA NBC-5632 MIT type folding Tester Paper Folding Endurance Tester Picture

Introduction

This machine is specially designed to test the folding strength of paper and cardboard. The test method is to fix both ends of the test piece on the machine, apply the required load on the lower clamp to make the test piece bear a certain tension, and hold the lower clamp toward the test piece in a vertical state. Bend the sample back and forth on the left and right sides, with a bending angle of 135 degrees, until the sample is broken, and counting is performed automatically.

FAQ
QI want to measure the folding strength of paper, what instrument should I use?
A The NBC-5632 MIT type folding tester is specially designed to detect the folding strength of paper and Cardboard. By fixing both ends of the test piece and applying a load, it is bent back and forth at a 135 degree angle until it breaks, which can accurately simulate the actual use of paper. Repeated folding.
QWhat paper tests is this folding meter suitable for?
A It is suitable for all kinds of Cardboard, Encasement paper, cultural paper folding endurance test, such as cartons, notebook paper, etc., because the instrument can simulate daily folding, bending use scenarios, to help you evaluate the durability and service life of paper.
