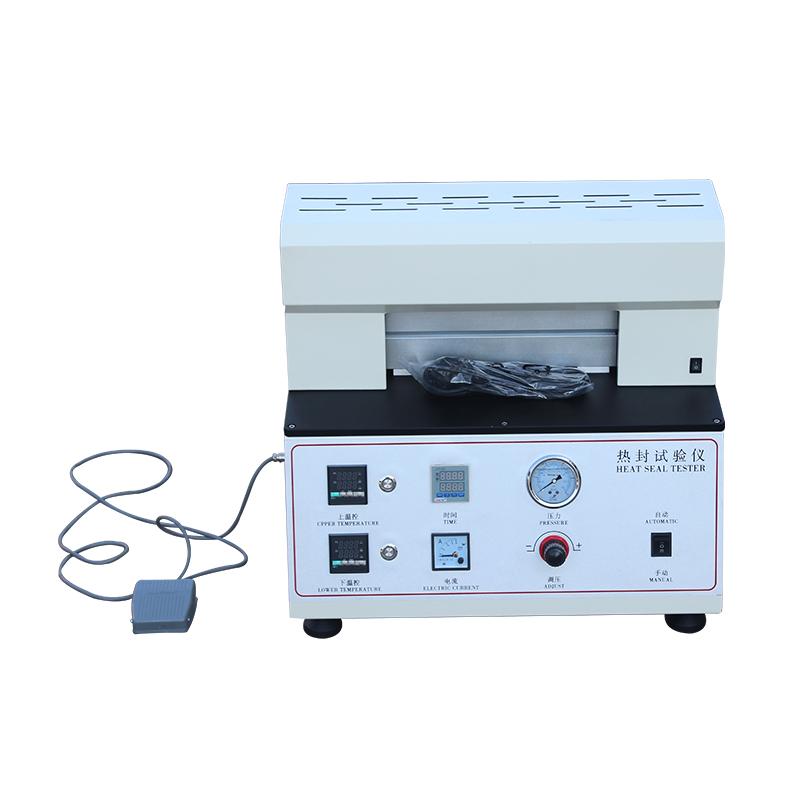

Chinese NBC-ST10 Heat sealing Tester

NBC-ST10

Heat seal Tester

Hot press sealing method, the upper and lower heat head independent temperature control, Temperature range room temperature~ 300 ℃, accuracy +/- 0.2 ℃, PID temperature control, aluminum potting type heat head, with anti-scalding and leakage protection design, suitable for various film testing.

Introduction

It is suitable for measuring parameters such as heat sealing temperature, heat sealing time and heat sealing pressure of test materials. It is a laboratory instrument for food companies, pharmaceutical companies, daily chemical product company packaging and raw material production companies.

Applications

Film plastic, composite film paper base, composite film, aluminized film, co-extruded film

Features

• PID Control temperature control system, high temperature control accuracy

• Microcomputer control, large-screen LCD display (optional)

• Bottom-mounted dual-cylinder synchronization circuit ensures pressure balance

• The aluminum potted heat seal head ensures uniform heating of the heat cover

• The upper and lower heat seal heads have independent temperature control and extra-long heat seal design to meet different customer needs.

• Manual and foot switch dual modes, humanized structural design

• Anti-scalding design and leakage protection design make operation safer

• Micro printer, convenient for users to print test results (only available with touch screen)

Test principle

The heat sealing Tester uses the hot pressure sealing method, placing the sample to be sealed between the upper and lower heat sealing heads, and sealing the sample under the preset temperature, pressure, and time. After repeated trials, it provides guidance for users to find heat sealing parameters. To ensure fast and precise pressure setting, the heat sealing clamps slowly come into contact with each other and seal adjacent samples, resulting in reproducible short sealing times. The heat sealing time can be set arbitrarily. Press the foot switch and the sample is pressed. The heat sealing time is determined by the pressing time of the foot switch. Release the foot switch, the upper and lower heat sealing knives are separated from the pressed state, and the heat sealing of the sample is completed.

Implementation standards

QB/T 2358 (ZBY 28004), ASTM F2029, YBB 00122003

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
